8-10TPH Complete Poultry Feed Production Line

Brief introduction

Poultry feed, the food of farmed poultry. It is one of conventional feeds in the feed classification. Poultry feed plant is systematic solution which used to produce different specification poultry feeds, including pellet feed (φ3-4mm) for broiler chicken, mash feed for layer chicken, and crumbled pellet(φ1.5mm) for chicks/baby chicken.

Get Inquiry  

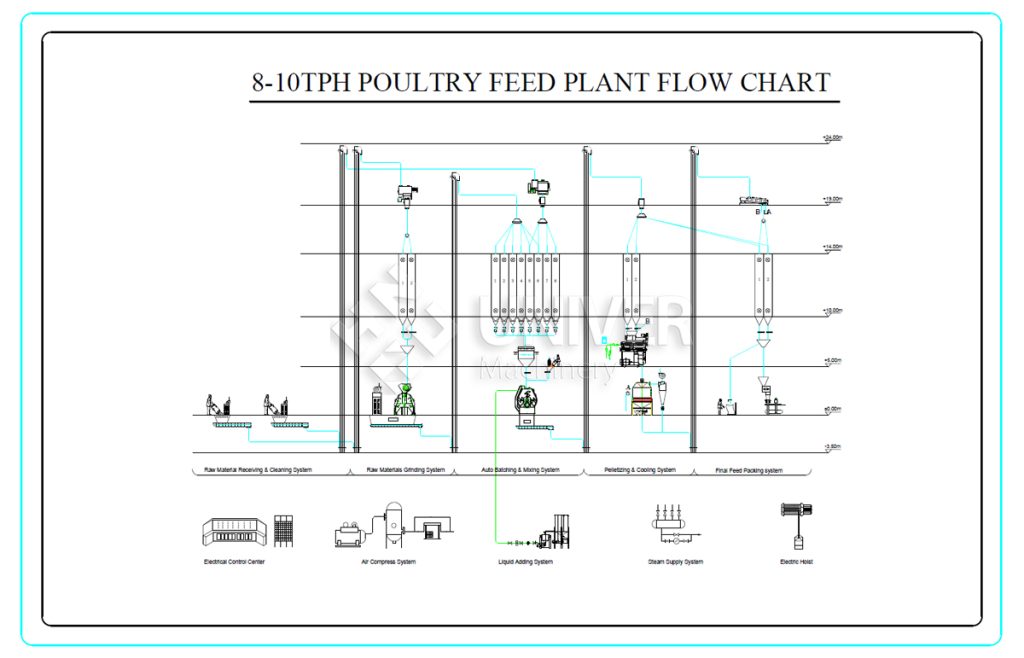

Process flow

For poultry feed processing, the common raw materials are the corn/maize, wheat, soya meal, broiler vitamin, salt, oil, limestone, mineral (organic), feed additives, etc. Nutritionally balanced and affordable feed formula can help you produce high-quality feed with a competitive advantage.

Design capacity: 8-10tph;
Land size for feed plant workshop: L15*W10*H24m;
Boiler capacity: 1000kg;
The process can be adjusted if there is site limitations, final customized process can meet the requirement of environmental protection in local.

Project Description

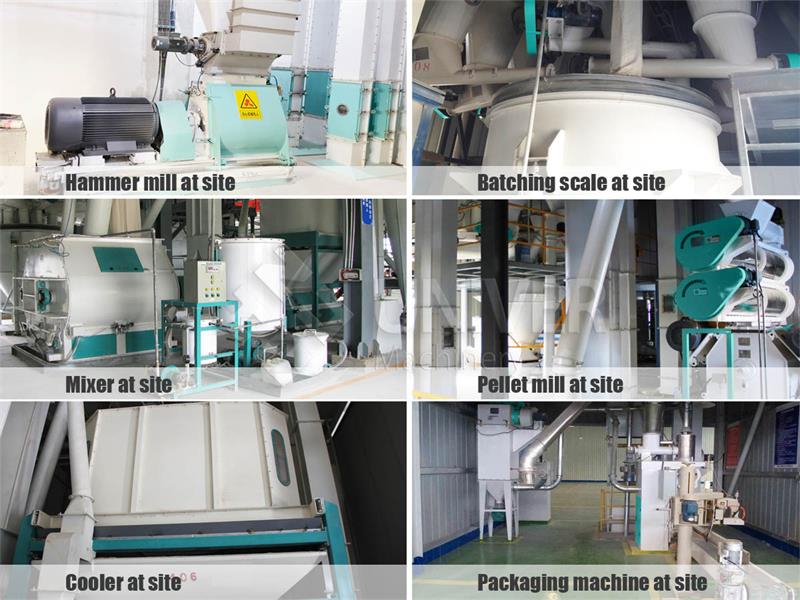

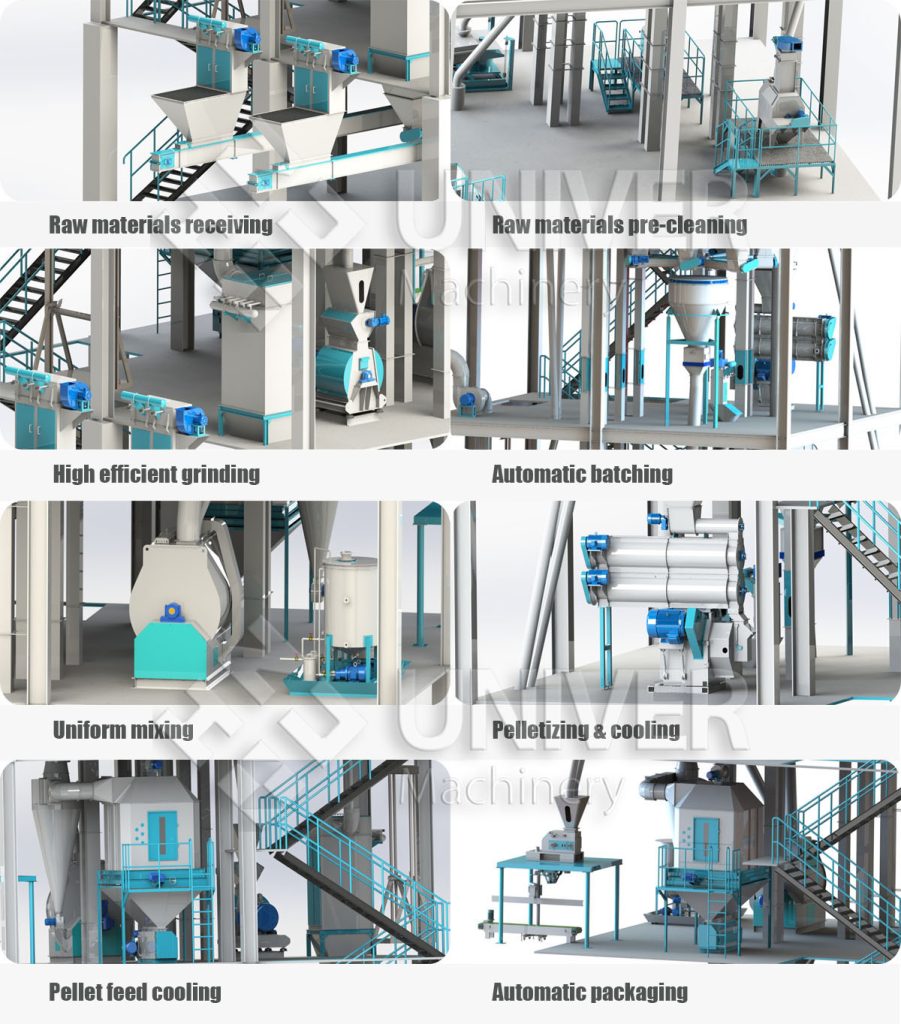

The capacity of this poultry feed plant is designed to be 8-10tph, using pre-grinding process with compact steel structure design. Complete poultry feed plant includes raw materials receiving & cleaning system, grinding system, auto batching & mixing system, pelletizing & cooling system, final feed bagging system and auxiliary equipment such as the boiler, air compressor, electrical hoist, etc.
