30TPH Animal Feed Production Line

Brief introduction

Animal feed production line is a complete process from grains and other agricultural by-products to compound animal feeds. The compound feed produced by this plant covers necessary nutrition requirements for different animals in their life stages. Our company is specialized in providing turnkey animal feed production line solution and make perfect project for you.

Get Inquiry  

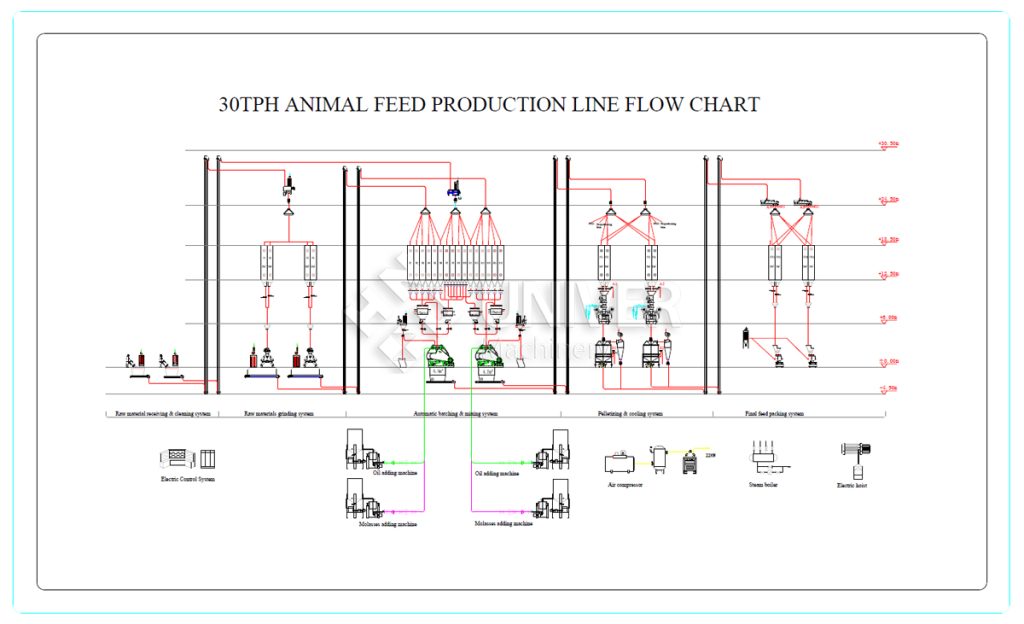

Process flow

Application: animal feed production line for poultry & livestock pellet feed, mash feed & crumbled pellet feed processing, such as chicken, duck, geese, pig, cattle, goat, camel, horse, fish, etc.

Raw materials: corn, wheat, barrel, soy meal, flour, grass, fish meal, bone meal, limestone, oil, oil cake, molasses, etc.

Design capacity: 30tph.
Total power consumption of complete plant: 1055kw;
Space dimension for feed plant workshop: length 18m, width 17m, height 30.5m;
Raw material steel silo system: optional.
Auxiliary equipment: electric control system, steam boiler (2000kg), air compressor (22kw), electric hoist, truck weighing bridge, etc.

Project Description

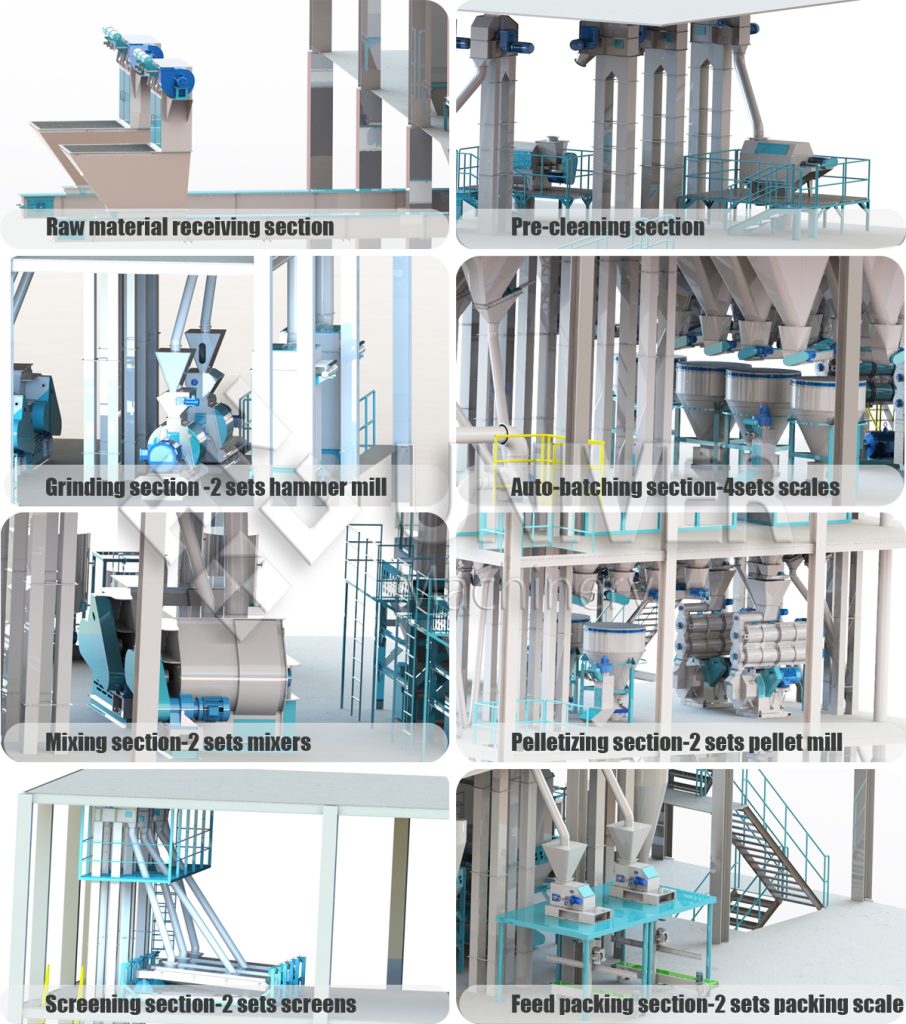

30tph animal feed production line process section: raw material receiving & cleaning section---Raw material grinding section---Automatic batching & mixing section---Pelletizing & cooling section---Final feed packing section.
