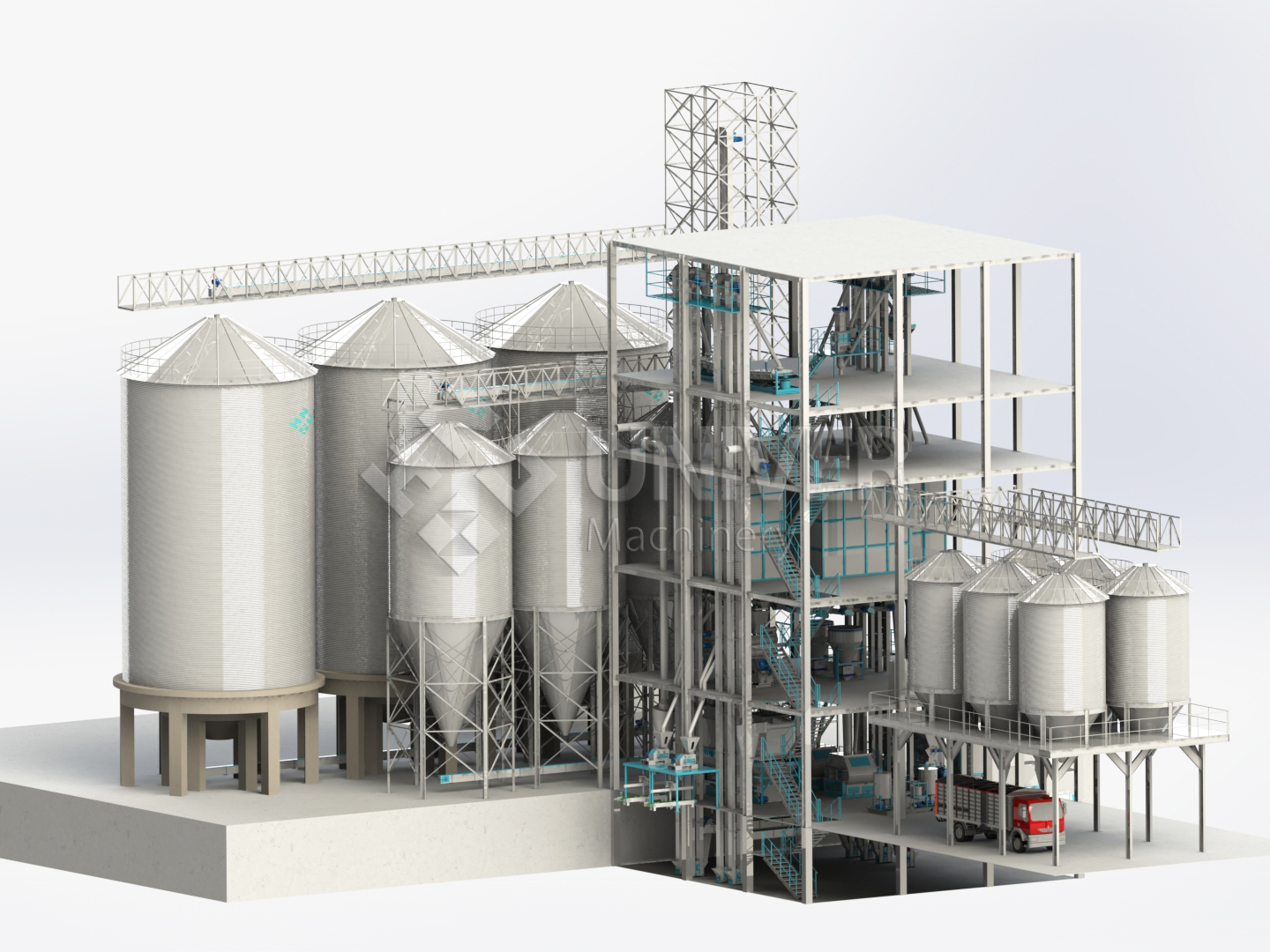

20TPH Poultry & livestock Feed Plant

Brief introduction

Poultry and livestock feed, generally referring to the food of artificially farmed poultry and livestock animals, is a relatively conventional feed variety in feed classification. Our company specializes in feed machine and feed project engineering, We can provide customers with poultry feed (chicken, duck, goose, etc.), livestock feed (pigs, rabbits, etc.), ruminant feed (cattle, sheep, camel, horse, etc.), aquatic pellet feed (Grass carp, Herring, Bighead carp, Silver Carp, etc.), aquatic extruded feed (floating & sinking fish feed, Tilapia, Catfish, Sea bass, etc.), Premix (various additives, etc.), complete feed plant solutions to meet different requires of customers.

Get Inquiry  

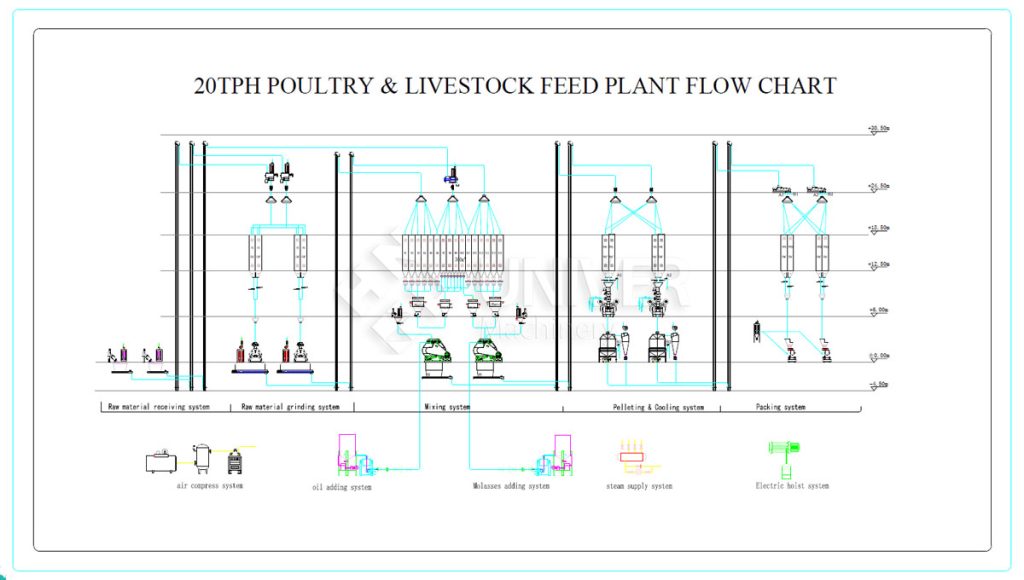

Process flow

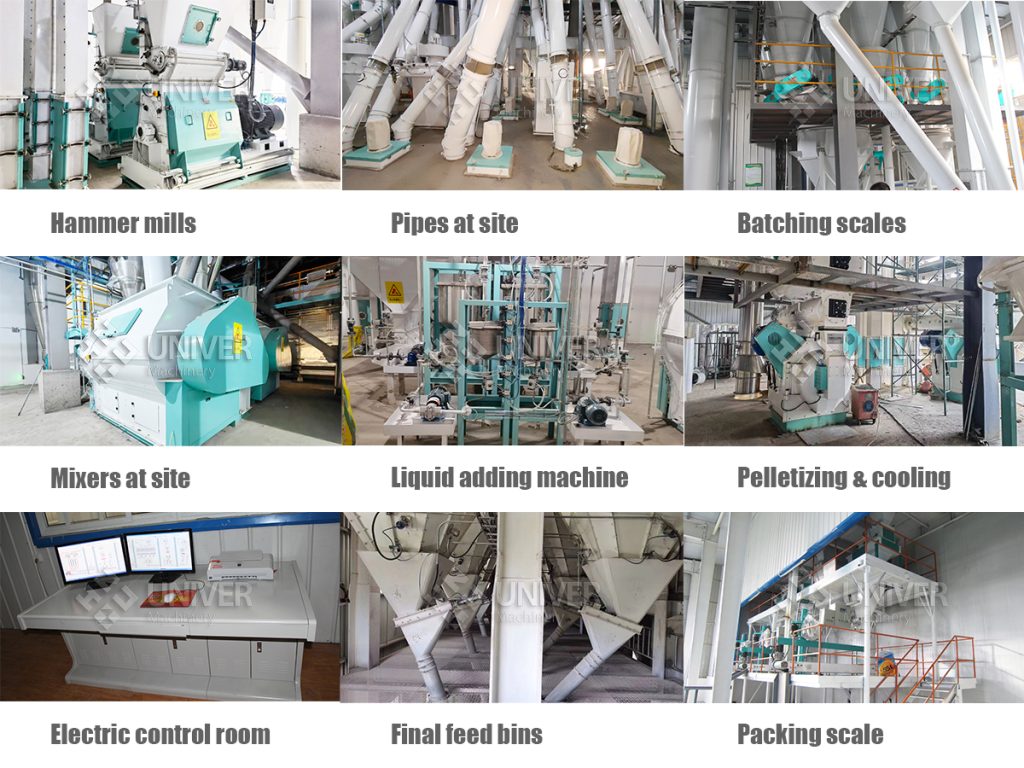

The process adopts double 10tph line design, so total plant capacity is 20tph, using two hammer mills, two batching scales and two mixers, two pellet mills and two coolers, and two bagging machines.

Poultry & livestock feed raw materials: maize, wheat, barley, soybeans, soya meal, plant oil, premix, etc.

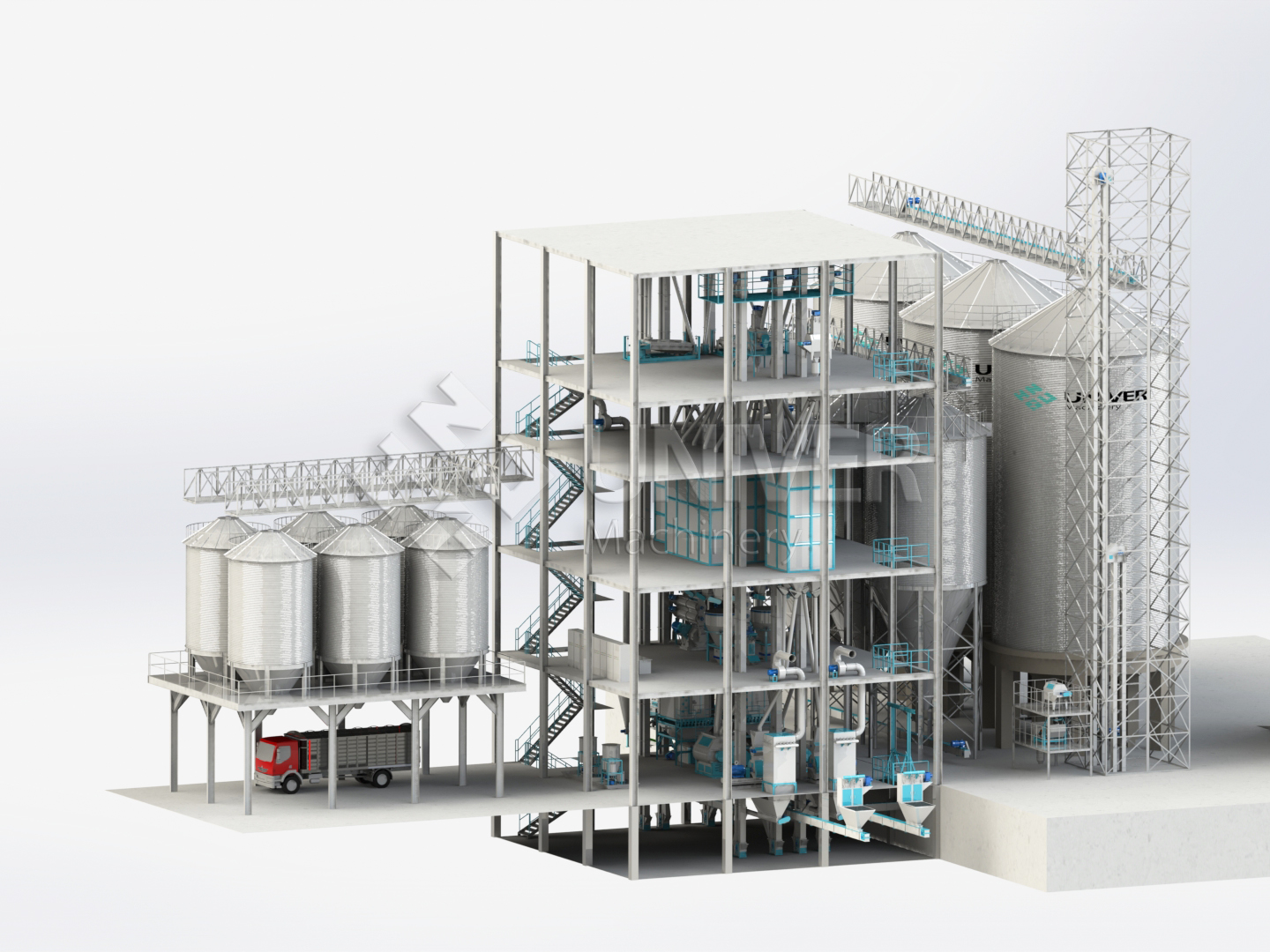

Raw material silo system: optional, depends on customer's requirements.

Design capacity: 20tph.
Total power consumption: 785kw;
Total power consumption of complete plant: 1055kw;

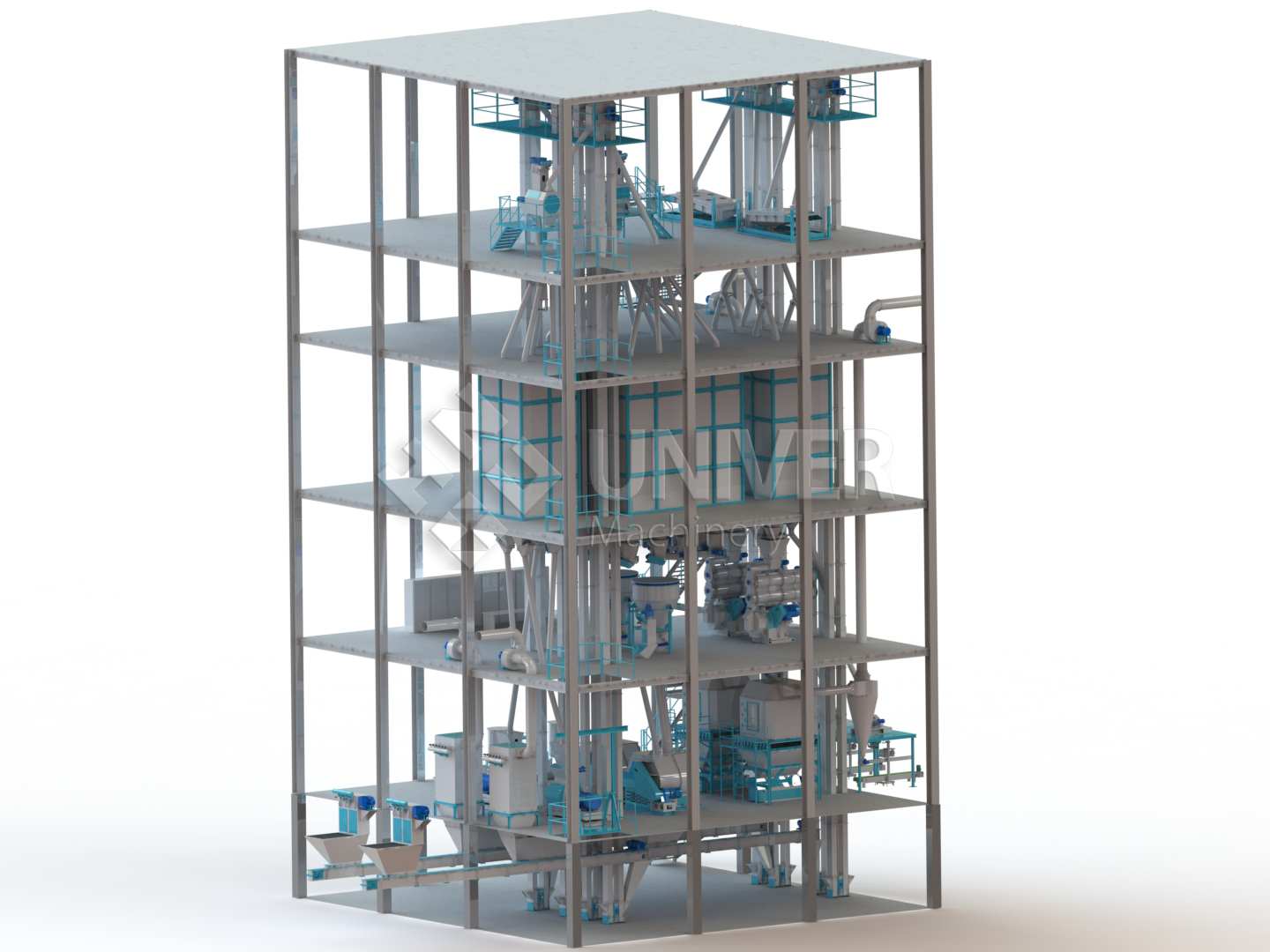

Space for feed plant installation: L20m*W18m*H30.5m
Auxiliary equipment: steam boiler system (2000kg), air compressor system (22kw), electric hoist, truck weighing bridge,etc.

Project Description

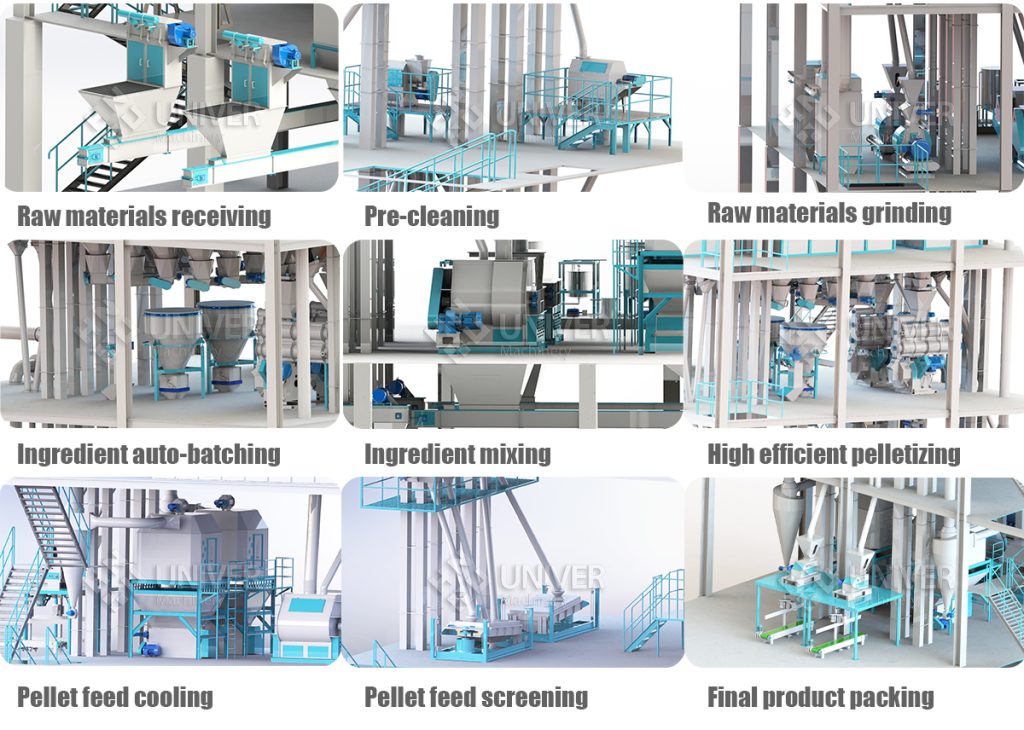

Process section: raw material receiving & cleaning section---Raw material grinding section---Automatic batching & mixing section---Pelletizing & cooling section---Final feed packing section.
