1-1.5TPH Wood Pellet Production Line

Brief introduction

Our company specialized in developing, manufacturing, installing and debugging various feed machinery and bio-fuel machinery, and undertakes the construction of complete set of animal feed projects and complete set of biomass pellet projects. Wood pellets refer to the conversion of compressed materials into granular materials through compression and processing, which are usually used as solid fuel and are a renewable energy source.

Get Inquiry  

Process flow

Raw materials for wood pellet processing: Korean pine, white pine, fir, oak, birch, elm, aspen wood, cedar, bean stalk, cotton stalk, peanut shell, cornstalk, rape stem, wheat straw, potato straw, rice straw, wood, sawdust, wood chips, bamboo dust, palm wire, etc.

Raw material moisture: 13-18%;

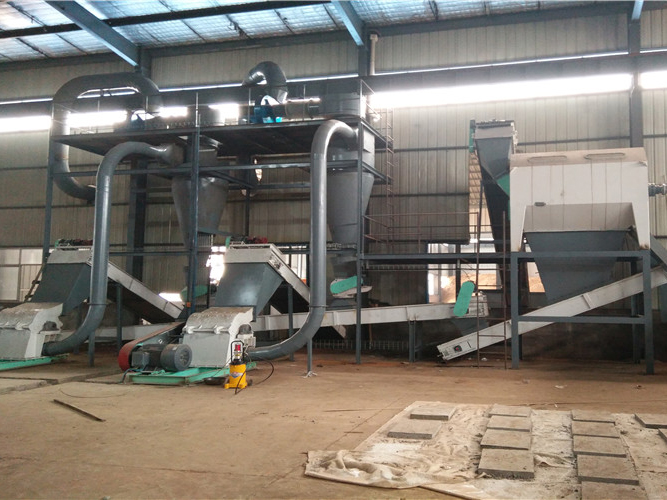

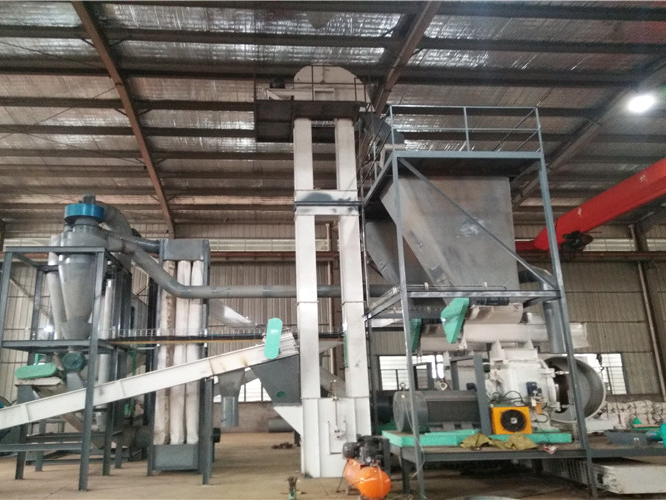

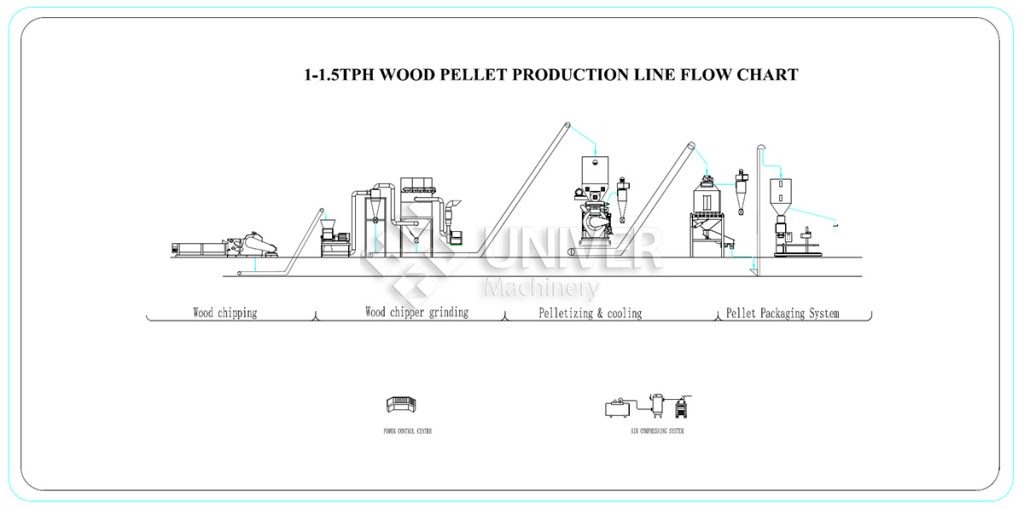

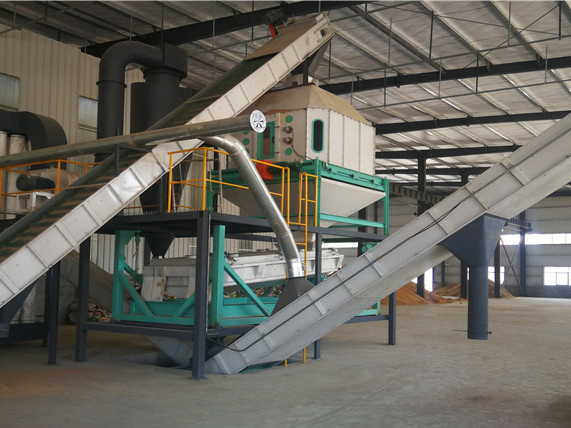

Process section: wood chipping ---grinding---pelletizing ---cooling & screening—packing.

Design capacity: 1-1.5tph;

Wood pellet size: 6-10mm;

Total power consumption: 265kw;

Project Description

1. Process can be customized according to customer’s requirements.

---When the moisture content of the raw materials is higher than 20%, it is necessary to add drying equipment and use a dryer to dry it to 13-18% before pelletizing.

---Final feed can be packed in bags, or in bulk silo.

2. The complete line has a compact design, and meets environmental protection requirements.
