Vertical Vacuum Oil Coater

Vertical vacuum oil coater is used to add high percentages of liquids to pellets and/or extruded fish pellets.

High vacuum pressure(up to 10mbar) is suitable for high proportion of liquid addition (up to 35%);

Stainless steel batch sprayer;

The nozzle enters from the outside of the sprayer for easy maintenance, and the air cleaning nozzle is optional;

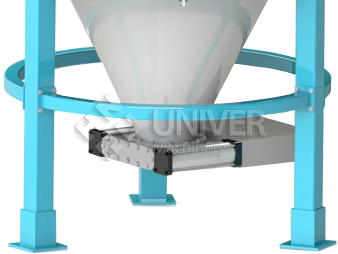

The discharge valve is driven by a cylinder to slide the door, discharging quickly, with leakage.

    Features

    1. Weighing type for measuring liquid and material by batch, coating proportion is more accurate, achieve the spray liquid zero loss, save the loss of 10%-20% for you.

    2. Applied to various liquid spraying (vitamins, living bacterium, lipids etc.) to reduce adding quantity of above material before processing, greatly reduce the consumption of high temperature processing, saving cost.

    3. Improved energy structure and content of formula, solve the problem of coater spraying ratio, bring more flexible adjustment space for formulator.

    4. All enclosed state for coating, improve spraying on-site health.

    Technical parameters

    ModelCapacity(tph)Motor power(kw)Oil spraying ratioMaxi Negative pressure
    SYPZ12004-611 2%-28% -980mbar
    SYPZ20008-1022
    SYPZ250010-1530
    Note: bulk density 0.35*103kg/m, liquid adding is 30% or less; Measuring accuracy of the liquid is less than 0.4%, measuring accuracy of the pellet feed is less than 0.8%.
