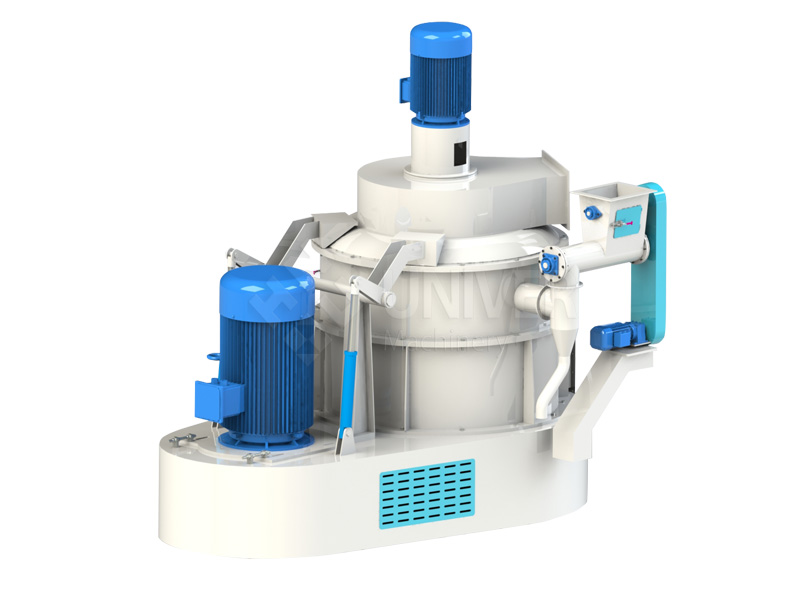

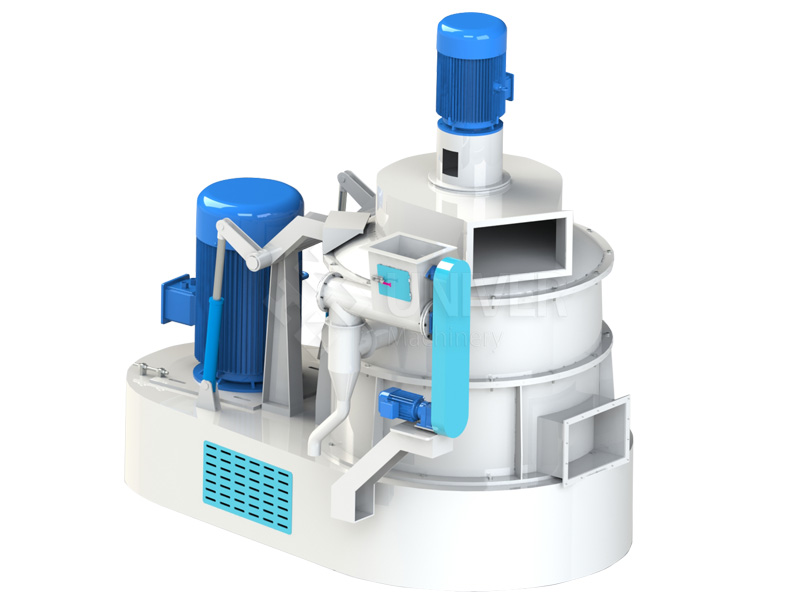

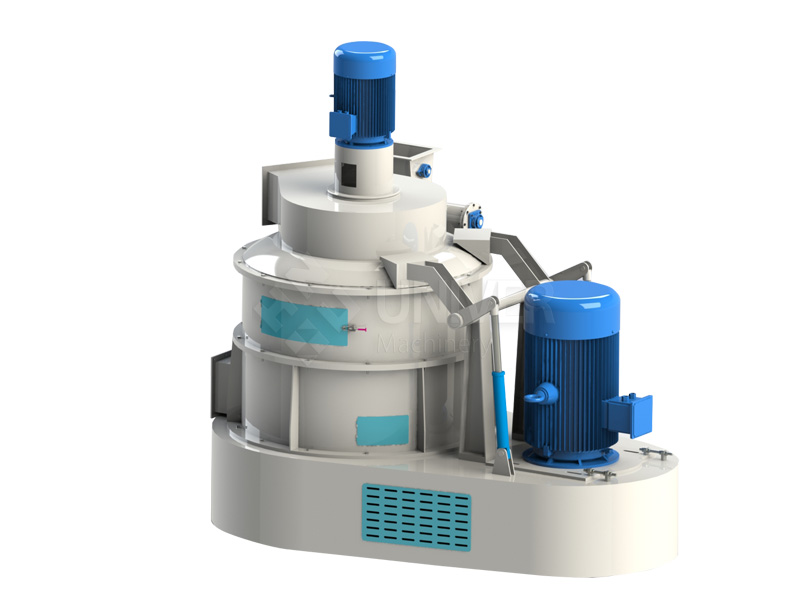

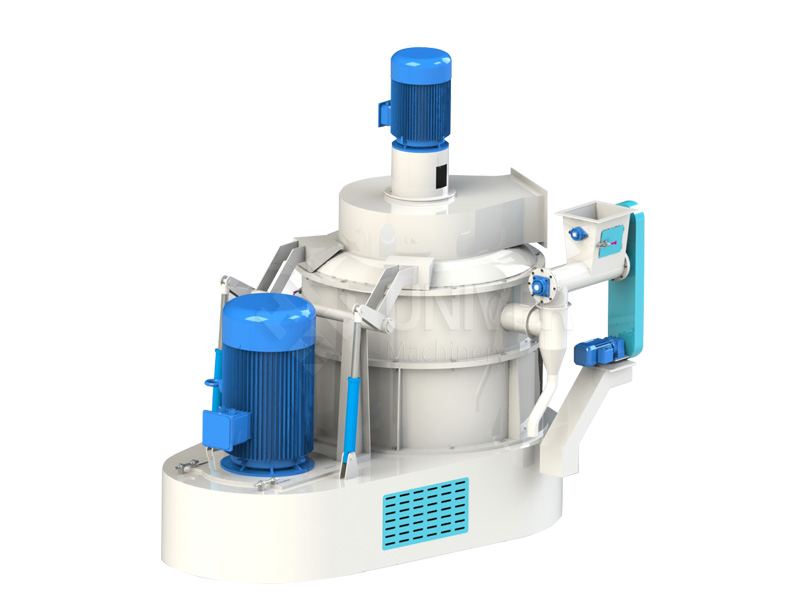

Vertical ultra-fine pulverizer

Verical ultra-fine pulverizer can be widely used on micro-grinding of pet food, puffed fish feed, shrimp feed, eels feed, turtles feed. it considers the grinding fineness, yield and quality of he finished products.

Vertical shaft screenless crushing structure, the production capacity is increased by 30-50% compared with similar equipment;

The crushing fineness is adjustable from 60 to 200 mesh, and the particle size is uniform;

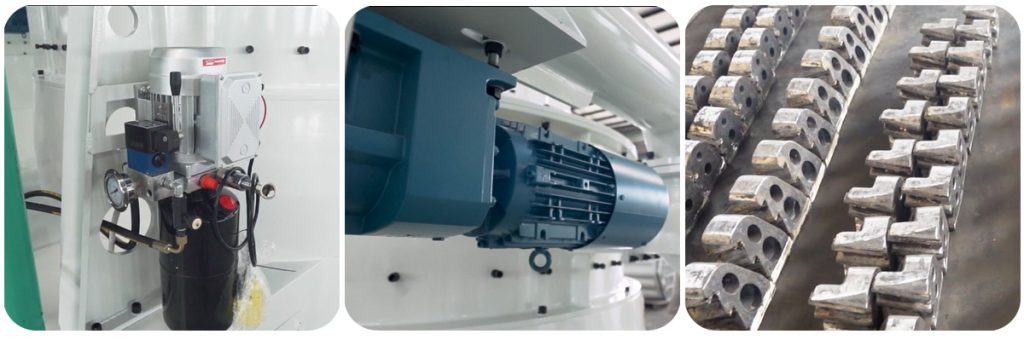

Hydraulic opening device for easy maintenance.

Features

Increased capacity
--Advanced innovative guiding to grinding technology, output of the pulverizer is increased by 10-15%.
--The optimized configuration of matching wind network system data and the reasonable layout of the process increase the overall efficiency by more tha
Good product quality
Provide you with a crushing fineness between 60-120 mesh, and a sieving rate of more than 99% of the finished product.
High energy efficiency
Convex cover and aspiration system to diminish resistant, avoid over-grinding and facilitate discharging, reduced the power consumption.

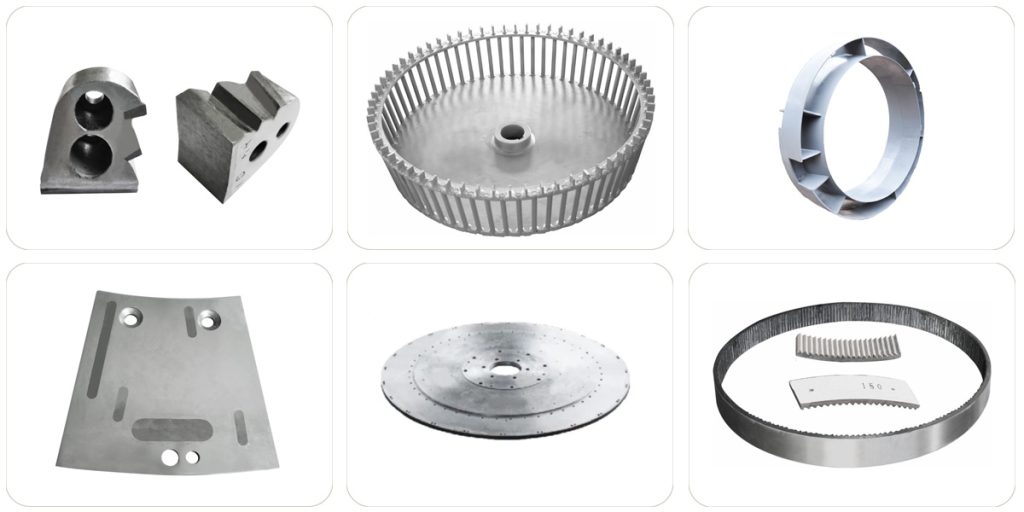

Long service life spare parts
The ring gear cutter block manufactured by high-standard complete process has higher crushing capacity and longer service life.

Technical parameters

Model	SWFL75	SWFL110	SWFL130	SWFL150
Main Motor(kw)	75/90	110	132	160
Grading motor(kw)	5.5	7.5	11	18.5
Feeding motor(kw)	1.5	1.5	1.5	1.5
Product granulation	95% through 80 meshes
Capacity(t/h)	1-2	3-4	4-5	6-12
