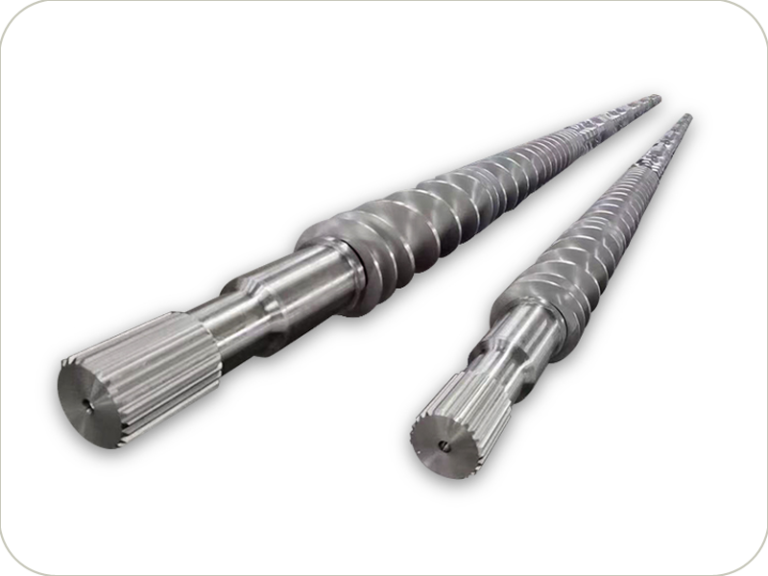

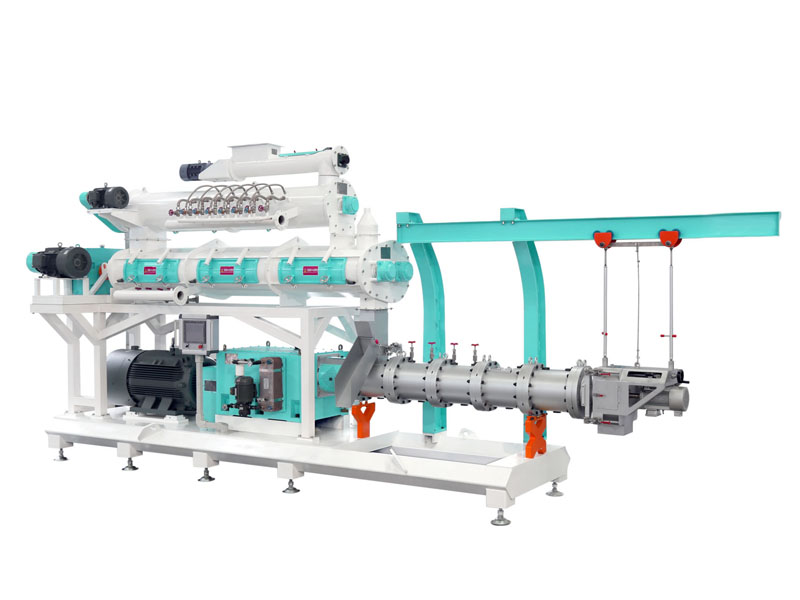

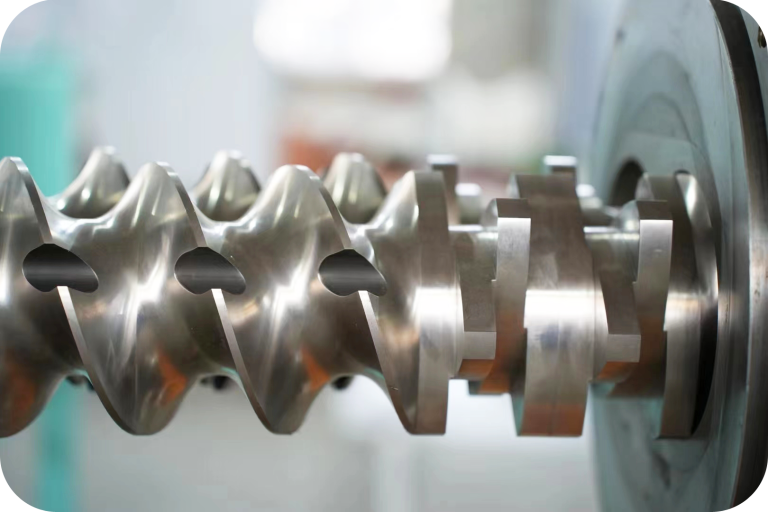

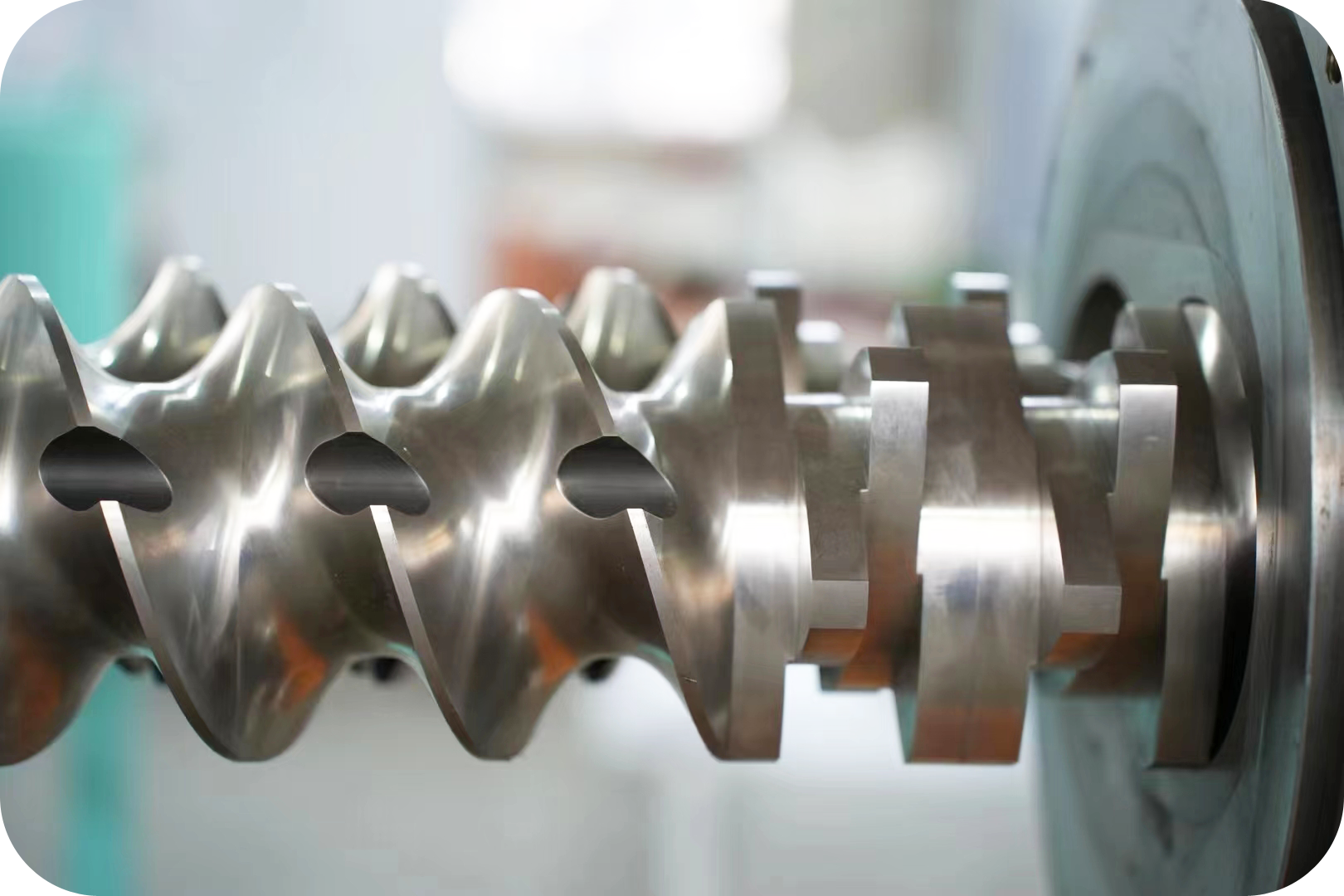

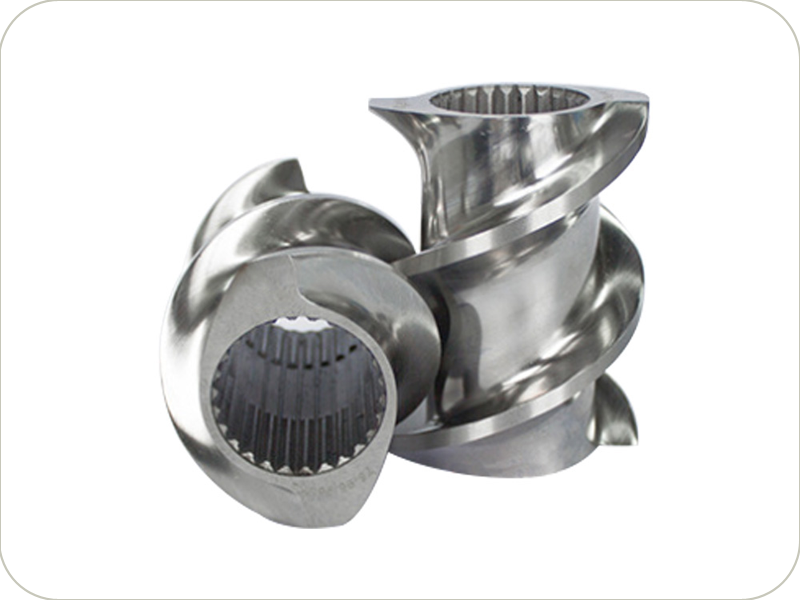

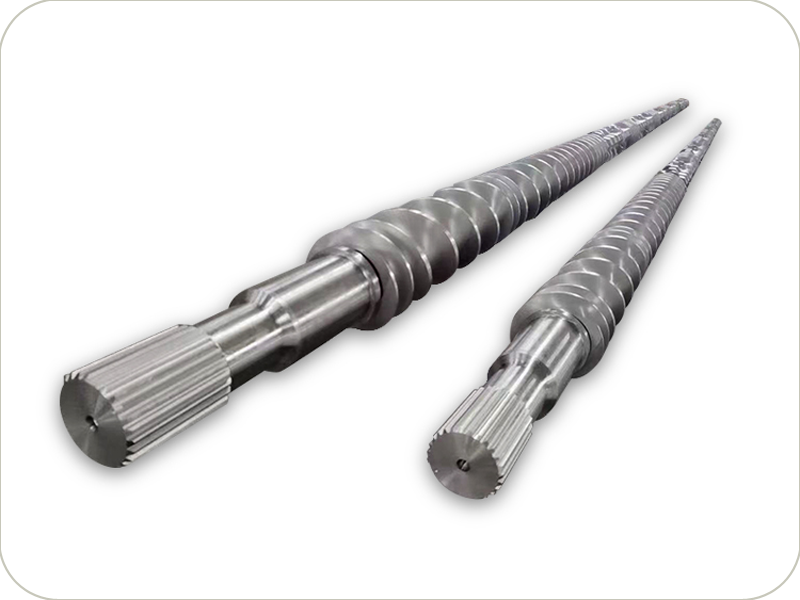

It adopts double-headed viariable pitch screw to process a wide range of particles(φ1.0mm-φ16mm);

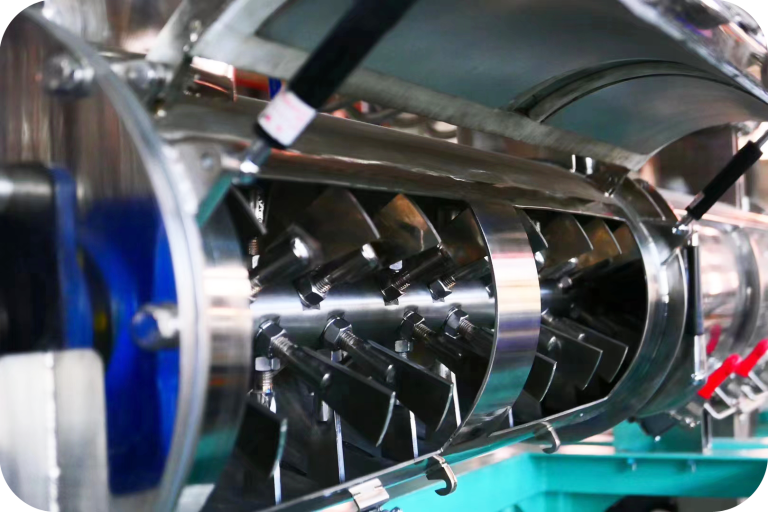

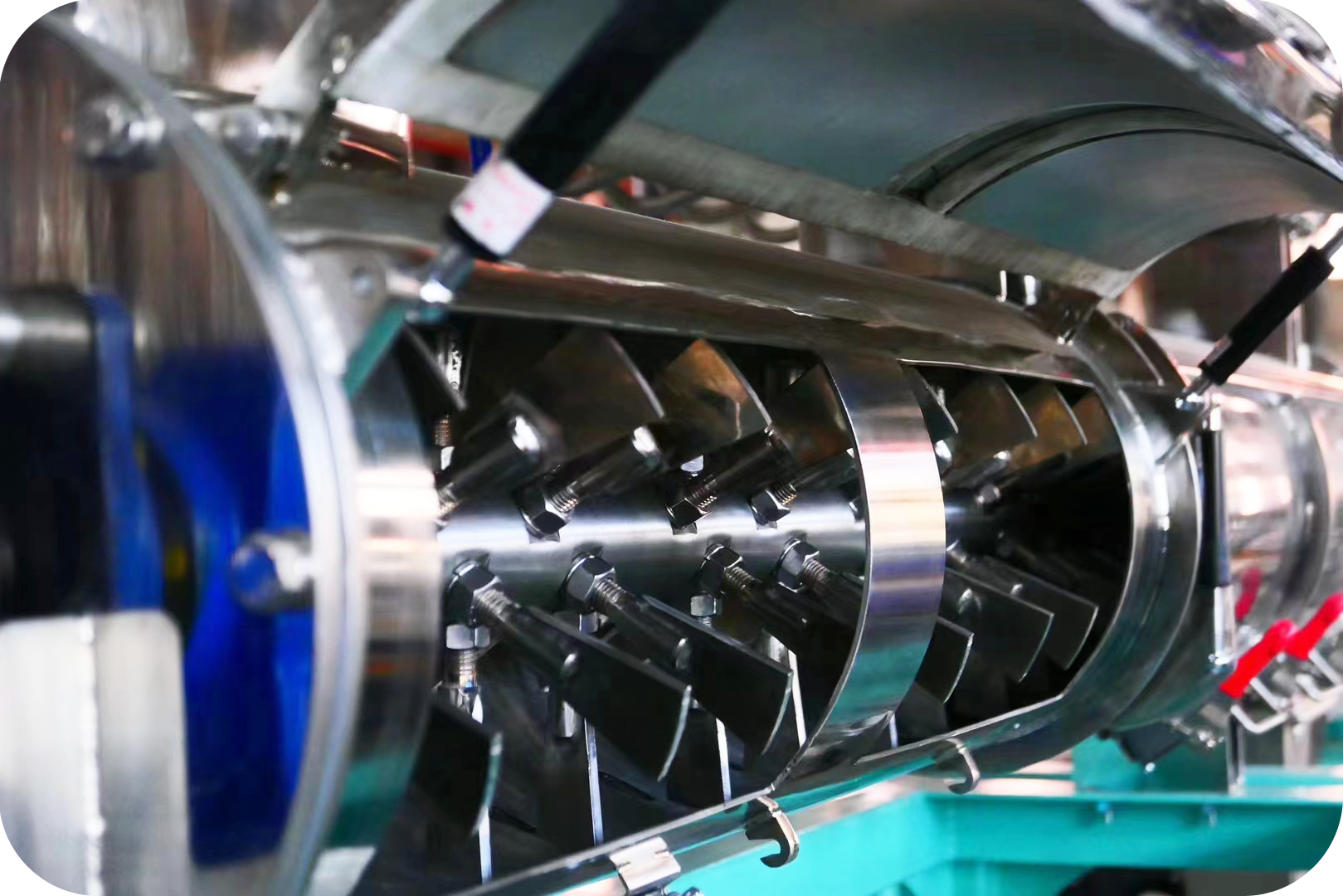

Final aquatic feed has a fast conditioning and curing process and good molding effect;
Two density control systems can be configured according to different needs of customers to meet their needs for processing floating fish feed and sinking fish feed at the same time.
It can adapt to the precise processing of various formulations such as low starch, high protein and high fat, and can continuously produce different size particle extruded feeds.

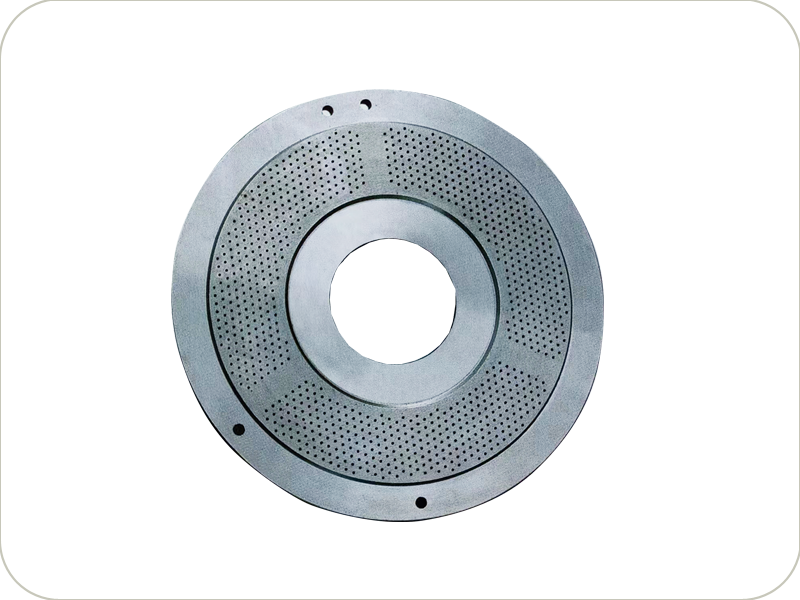

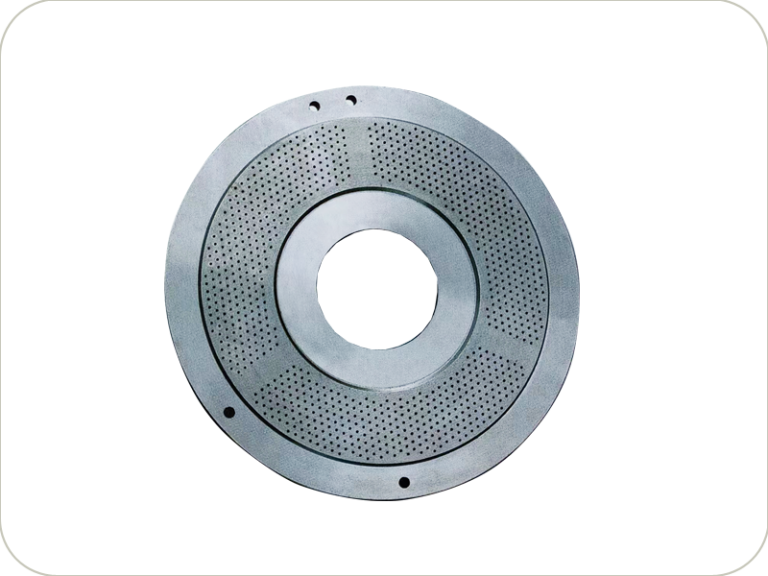

Advanced die hole structure design and hole layout technology, the particle size of product is consistent, and the surface of the particle is smooth and beautiful.
The addition of water and steam is automatically controlled, and main motor and cutter motor are controlled by frequency conversion.
--Density control system
Two density control systems can be configured according to the needs of customers to meet the needs of customers for simultaneously processing floating fish feed and sinking fish feed.
--Auto-control system
Auto-control system reduces manual labor intensity, international brand components contributes the stability, accuracy and sensitivity of the control system.
| Model | Main Motor Power(kw) | Feeder motor(kw) | Conditioner power(kw) | Knife power(kw) | Capacity(tph) |
| SPHS75 | 75 | 0.75 | 7.5 | 2.2 | 1-2 |
| SPHS90 | 90 | 1.5 | 11 | 3 | 2.5-3 |
| SPHS110 | 110 | 2.2 | 18.5 | 4 | 3-3.5 |
| SPHS132 | 132 | 2.2 | 18.5 | 5.5 | 3.5-4 |
| SPHS160 | 160 | 2.2 | 18.5 | 5.5 | 4-5 |
| SPHS200 | 200 | 3 | 18.5 | 5.5 | 5-6 |
| SPHS315 | 315 | 3 | 18.5 | 5.5 | 8-10 |
