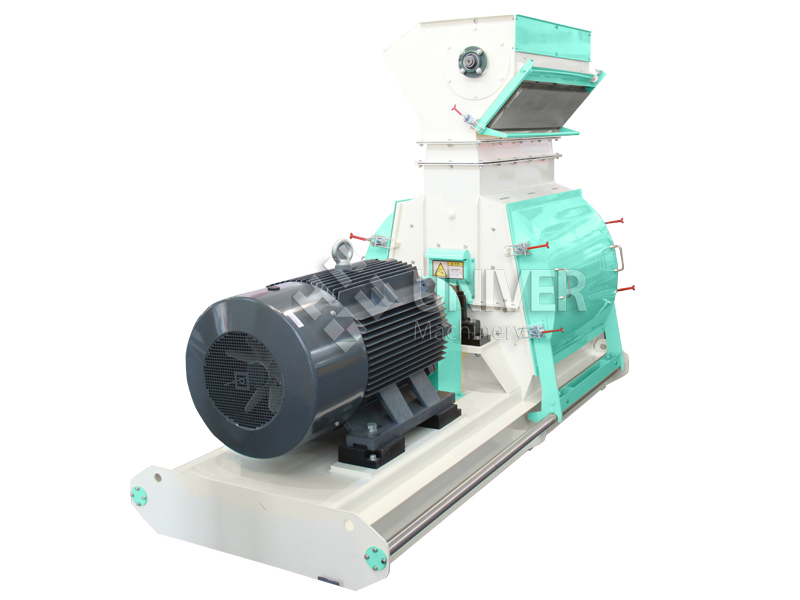

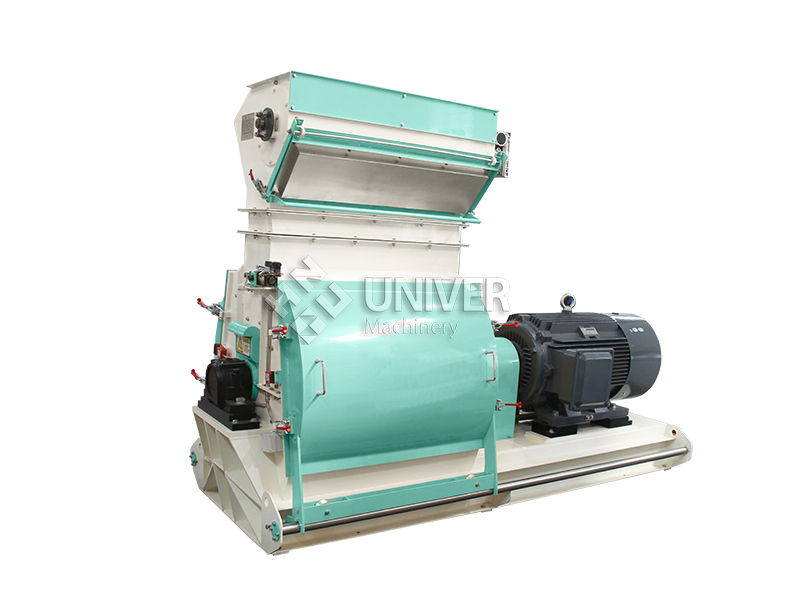

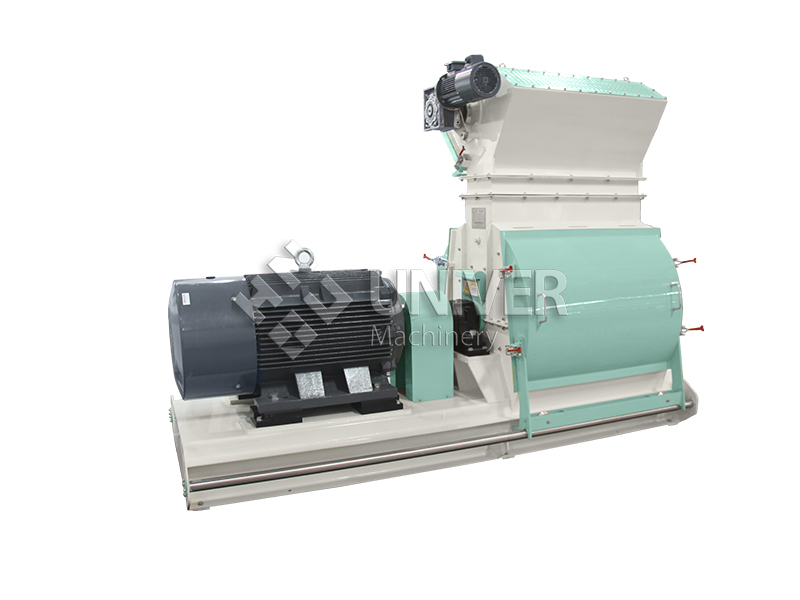

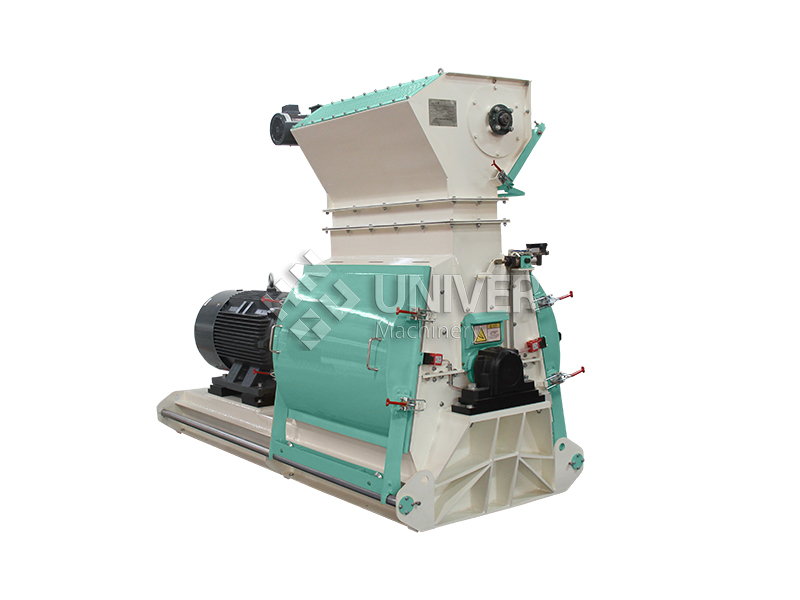

SFSP Hammer Mill

The hammer mill can grind various granular feed raw materials. It is mainly used for coarse crushing in poultry & livestock and aquatic feed industry, including the grinding and processing of various grains, such as corn, wheat, soy bean, sorghum, oil cake, and other materials.

The crushing efficiency is improved by 30-50%;

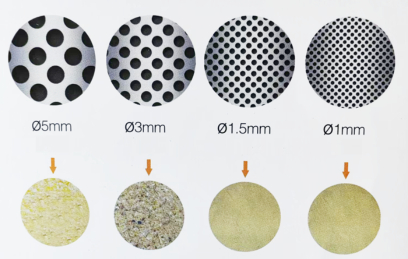

Grinding fineness and uniformity is improved by more than 30%;

Crushing temperature is down by 0.5°C;

It adopts high quality alloy hammers, which improves the efficiency by 50%.

Features

Stable performance

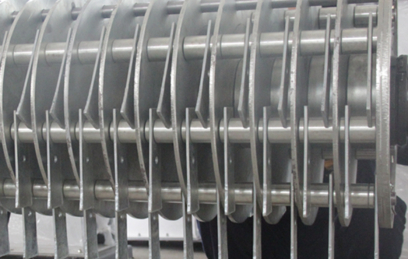

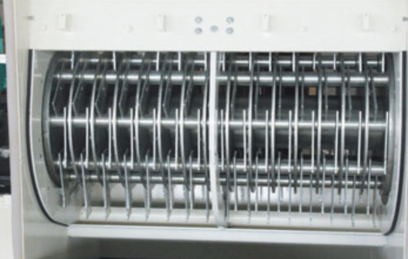

Dynamically balanced high-precision rotor, stable running, reinforced high resistant hammers, long service life.

High capacity

Water-drop chamber grinding structure, large grinding surface, improved capacity 25% higher.

Friendly operation design

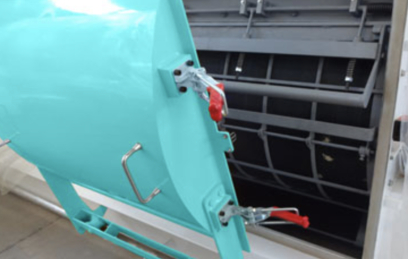

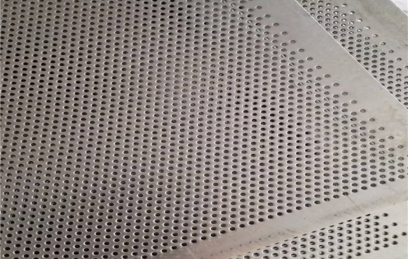

Full open sliding operation door, convenient to change the screen, ease of labor maintenance;

Customized bear & motor brand

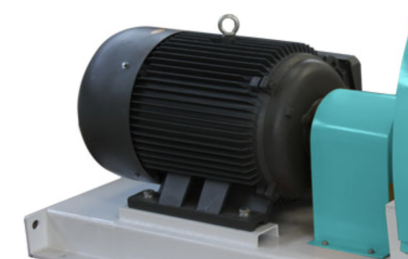

Domestic or Siemens brand is optional for motor brand.

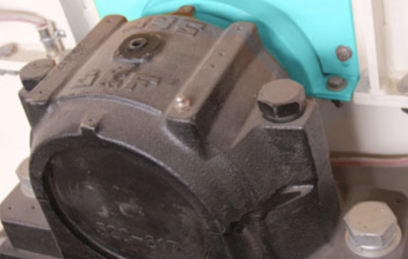

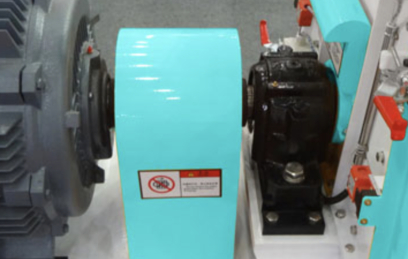

Domestic or SKF/NSK brand is optional for bear brand.

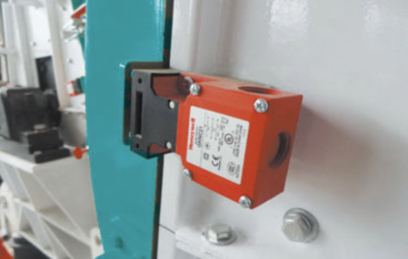

Efficiency overload prevent device

The grinding load control device realized the close loop control of load current and the feeding quantity which improved the grinding efficiency, and prevented from overload production.

Technical parameters

Model	Power(kw)	Screen Hole(mm)	Capacity(tph)	Feeder Model
SFSP56*30	18.5/22	φ3.0	3-4	TWLY25x40
SFSP56*40	30/37	φ3.0	5-6	TWLY25x40
SFSP56*60	55/75	φ3.0	6-10	TWLY25x60
SFSP66*80	90/110	φ1.0	6-9.5	TWLY25x80
SFSP66*100	132-200	φ1.0	8-13	TWLY25x100
SFSP66*125	200-250	φ1.0	13-17	TWLY25x125
