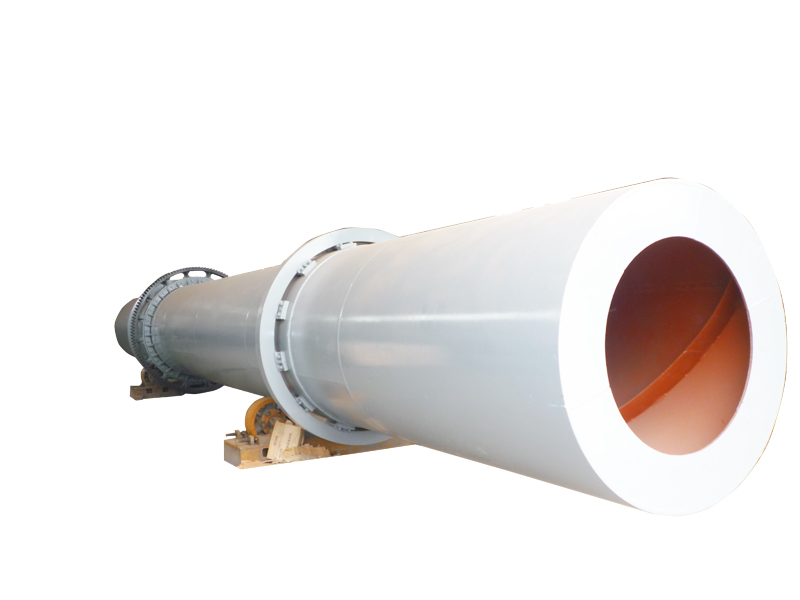

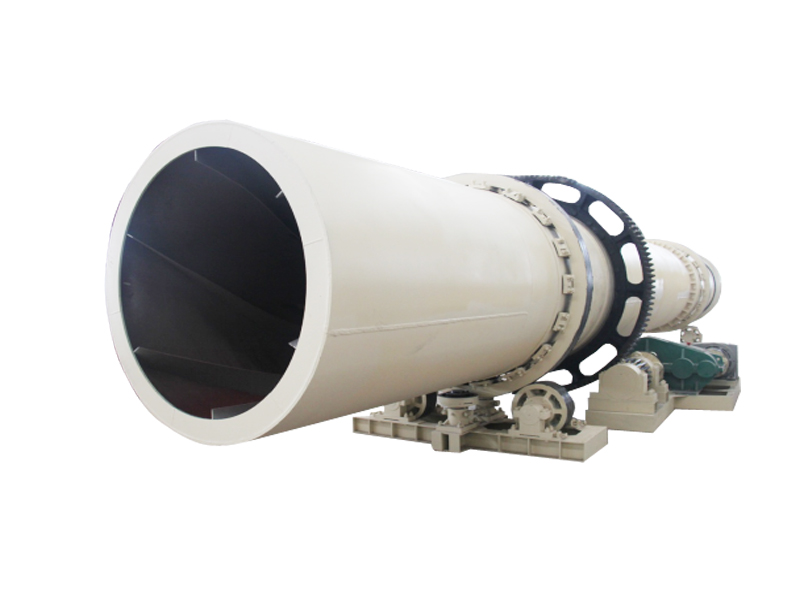

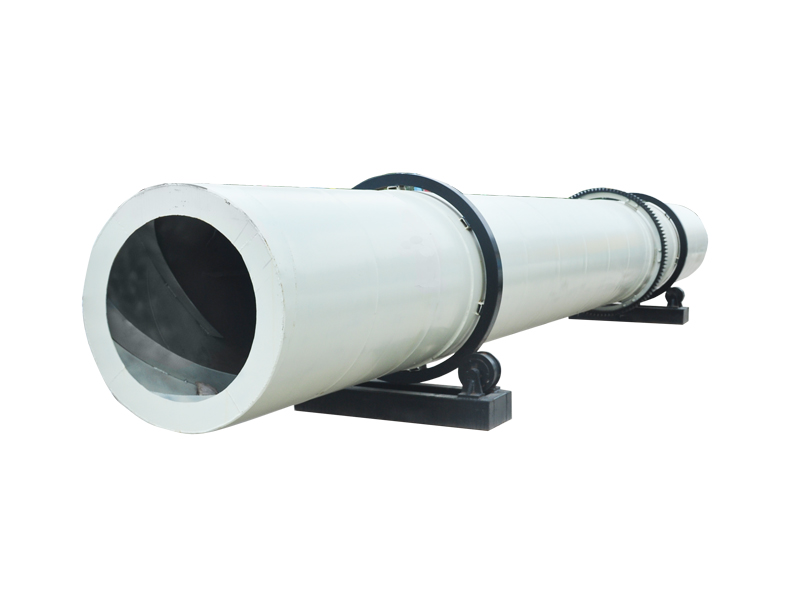

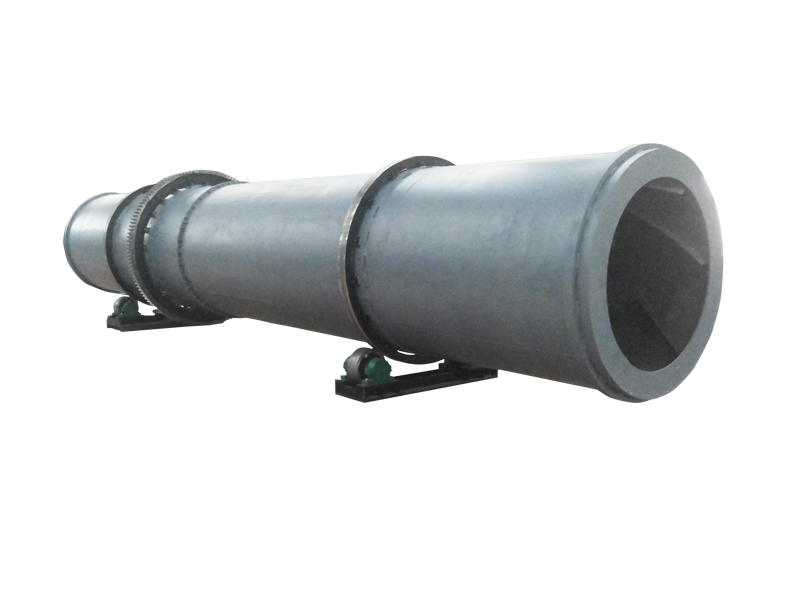

Rotary Dryer

Rotary Dryer

Rotary dryer is widely used in drying various raw materials in the production of biomass pellet and organic fertilizer pellets, such as straw, pasture, wood chips, peanuts shells, chicken manure, cow dung, etc.

Available raw material: fibrous, bulk or bulked powder biomass material.

Convenient feeding, feeding from middle of dryer by screw conveyor or from the top according to the different materials.

Large processing capacity with low fuel consumption and low drying cost;

High temperature resistance, fast drying of materials with high temperature hot air;

High scalable, keep account on the production margin on the design, no need to replace machine even if the output increase slightly.

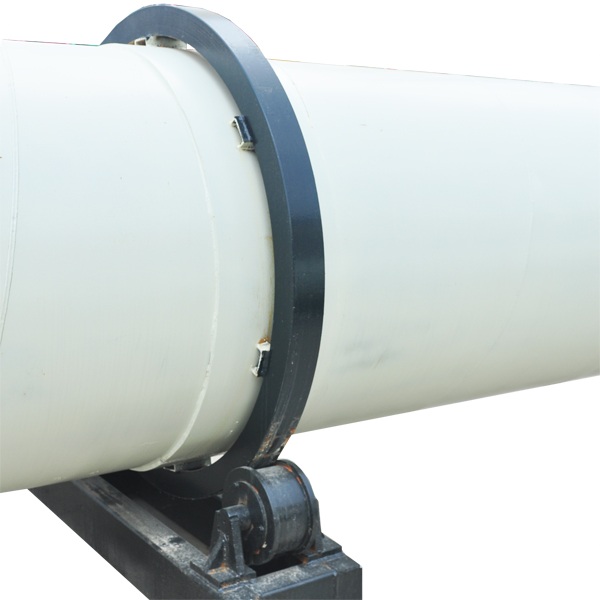

Strong anti-overload capacity, stable cylinder operation and high reliability.

Brief Introduction

Features

1. Available raw material: fibrous, bulk or bulked powder biomass material.

2. Convenient feeding, feeding from middle of dryer by screw conveyor or from the top according to the different materials.

3. Large processing capacity with low fuel consumption and low drying cost;

4. High temperature resistance, fast drying of materials with high temperature hot air;

5. High scalable, keep account on the production margin on the design, no need to replace machine even if the output increase slightly.

6. Strong anti-overload capacity, stable cylinder operation and high reliability.

Technical parameters

Model		HG0.8*8	HG1.2*12	HG1.6*11.5	HG1.6*15	HG2*16	HG2*20
Body	Diameter(mm)	800	1200	1600	1600	2000	2000
	Length(mm)	8000	12000	11500	15000	16000	20000
	Rotary speed(r/min)	Can be adjusted according to the process requires
Capacity(t/h)		0.5	1	2	3	4	4.5-5
Inlet temperature(°C)		<500	<500	<500	<500	<500	<500
Raw material		Sawdust
Moisture(%)		45
Outlet temperature(°C)		80	80	80	80	80	80
Power(kw)		2.2*2	3*2	4*2	4*2	4*4	5.5*4
