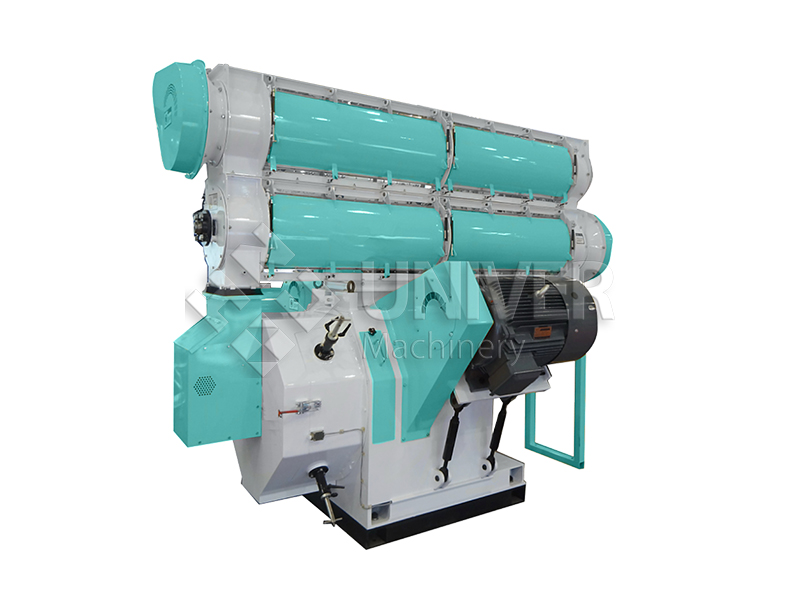

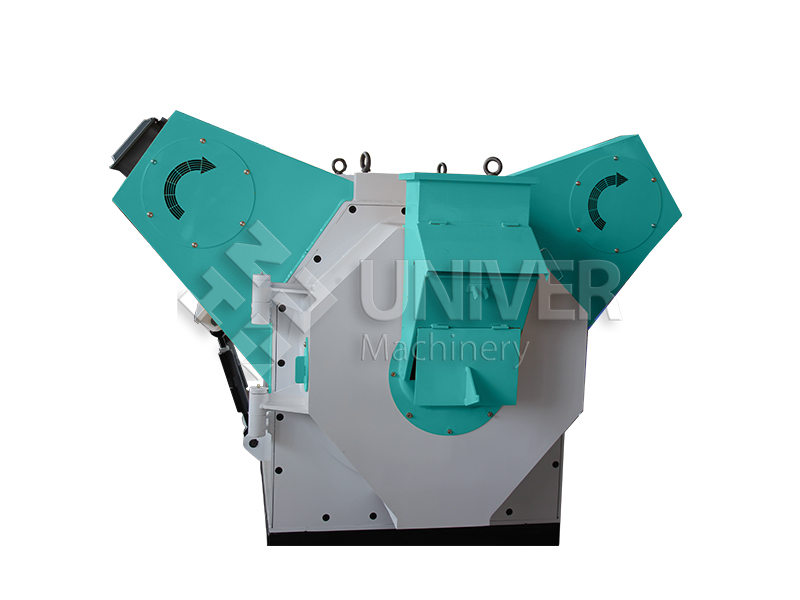

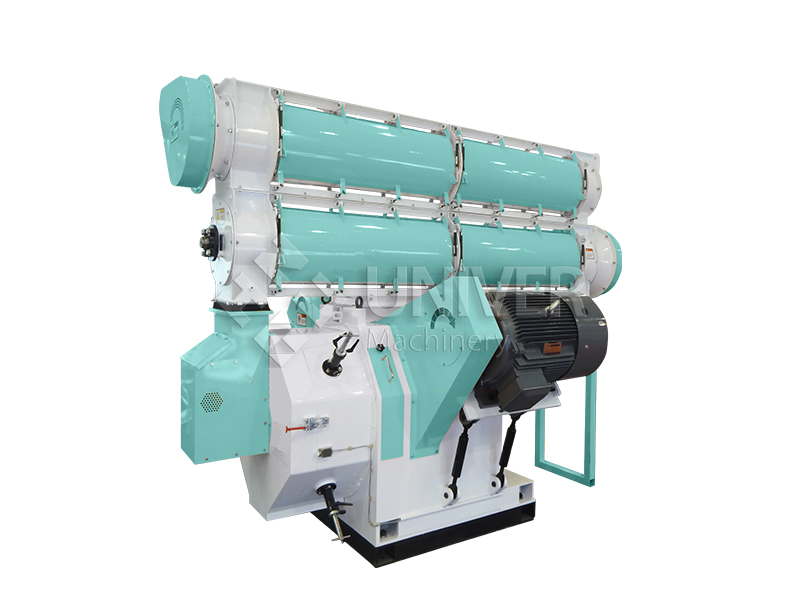

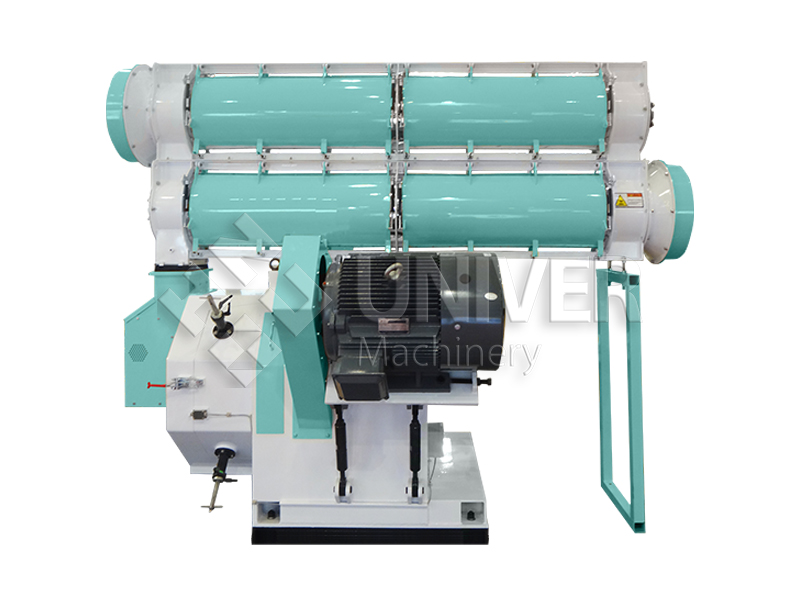

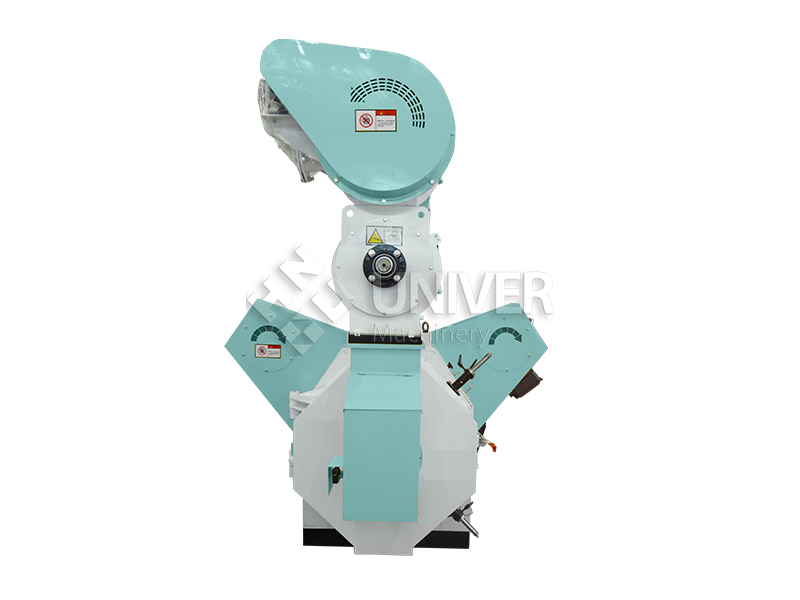

Dual-motor pellet mill

High-efficient pellet mill for animal pellet feed production in large and medium feed factory, widely used for poultry and livestock pellet feed processing in feed industry, to raise feed profitability.

V-belt transmission system, the linear speed of the ring die is adjustable;

Frequency control and speed-adjustable feeding, safe and stable feeding;

Stainless steel ring die, long service life;

Equipped with air conditioner, which can improve the matruation degree of materials.

Features

High efficiency

--Two-motor belt drive, stable and low noise;

--Optimized area-to-power ratio of ring die, maximum output;

--Stable production and uniform pellets obtained.

Flexible production

--Wide product range: φ2.0mm-φ10mm pellets size;

User-friendly

--Hydraulic system for die changing and roller adjusting, quick and precise operation;

--Auto-lubrication system and die& roller lifting device, saving labor cost;

--On-site touch screen control system is optional.

Customizable solution

-- Including machine size, ring die, roller, conditioner, steam system.

-- Hydraulic system, auto-lubrication system, die & roller lifting device and etc.

Technical parameters

ModelPower(kw)Capacity(tph)Inner Die Dia (mm)Roller Q’ty
SZLH25011*21-2φ2502
SZLH35030*23.5-5φ3502
SZLH42055*23-12φ4202
SZLH52075*25-18φ5202

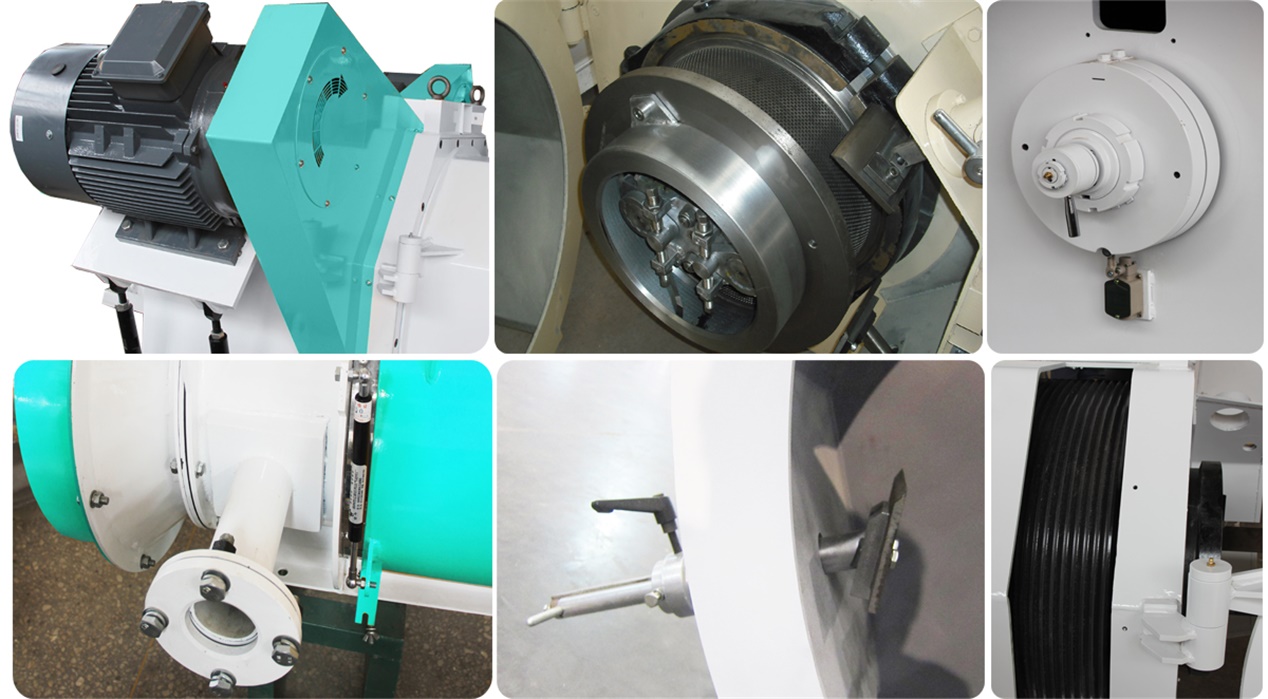

Details

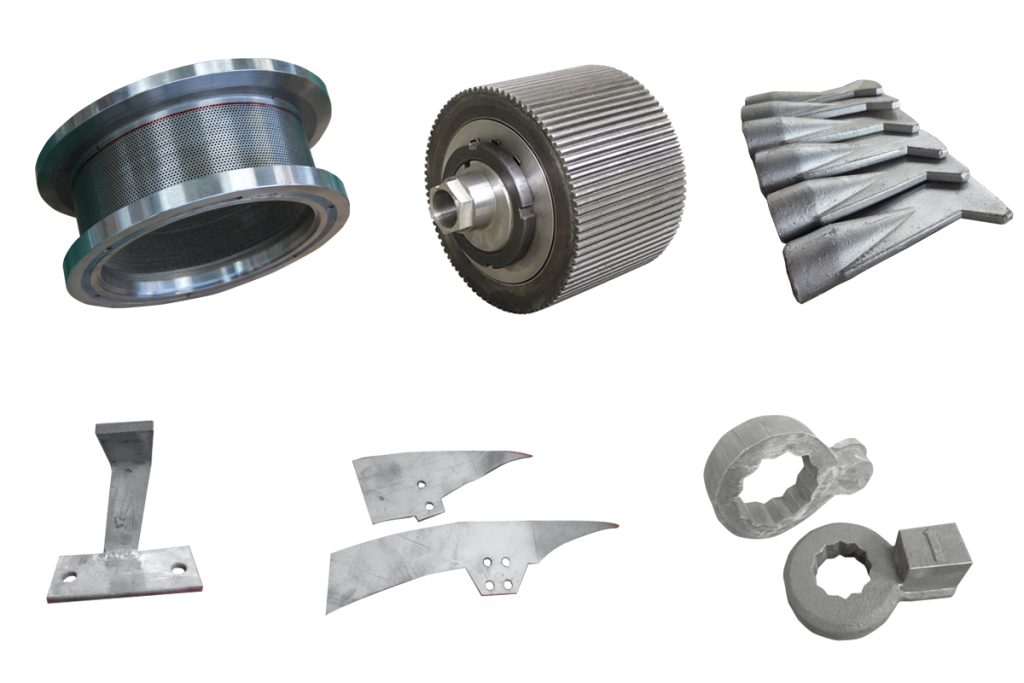

Spare Part

Video

Related Case
