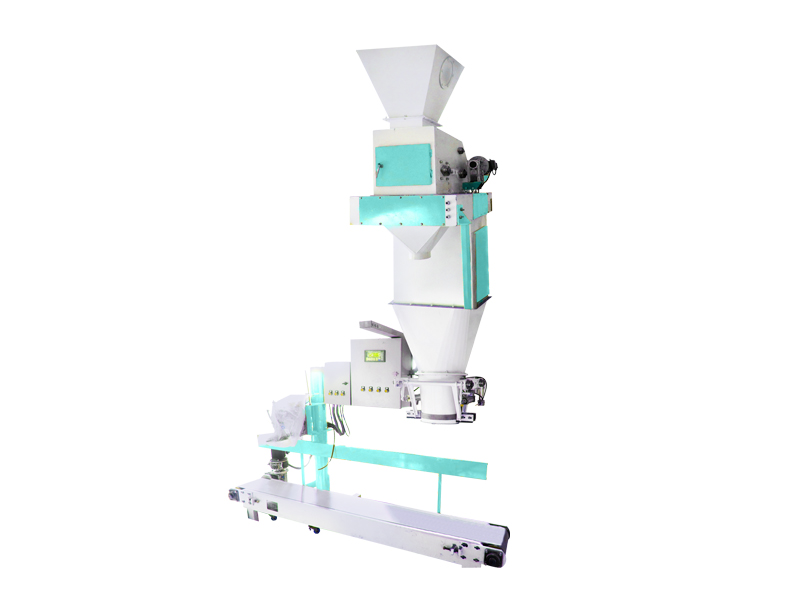

Packing Scale

The packing scale is a special equipment consiting of weighing packages device, programmable logic controller device and high-precision sensors which can show the weighing singals, to realize functions like bag folding, fast/slow inputting, self-testing of overshoot and packaging of different specifications of products.

A suitable feeding mechanism ensures the rapid flow of materials;

Automatic bag sewing device, fast and efficient;

Equipped with dust removal system to improve the working environment.

Get Inquiry  WhatsApp

Features

Use the size of feeding, install quickly switch cut-off gate.
All the parameters are inputted by the panel.
Package range: 15-50kg/package.

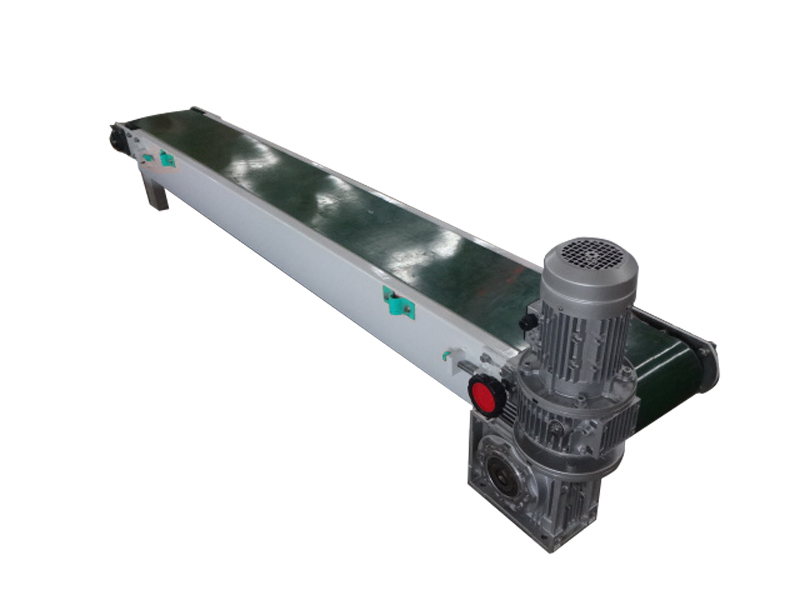

It consists of sewing machine and sewing belt conveyor.
The whole system is provided with a dust suction opening, to improve the working environment.
The packing scale can be with hopper or without hopper.

Technical parameters

Model	Rated weighing (kg/b)	Packing Speed(b/h)	Power(kw)
BCP-50W	20-50	200-300	1.5
BCP-50	20-50	300-500	1.5
BCP-50S	20-50	500-700	1.5+1.5
