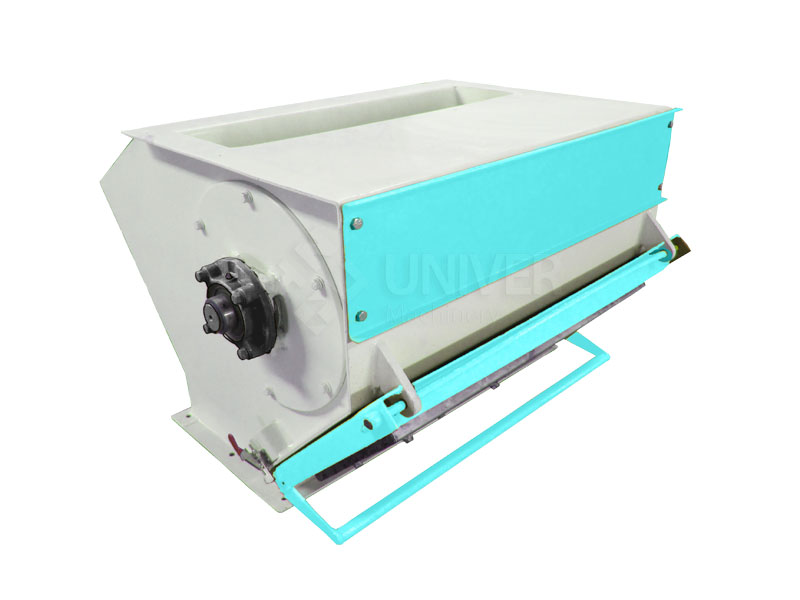

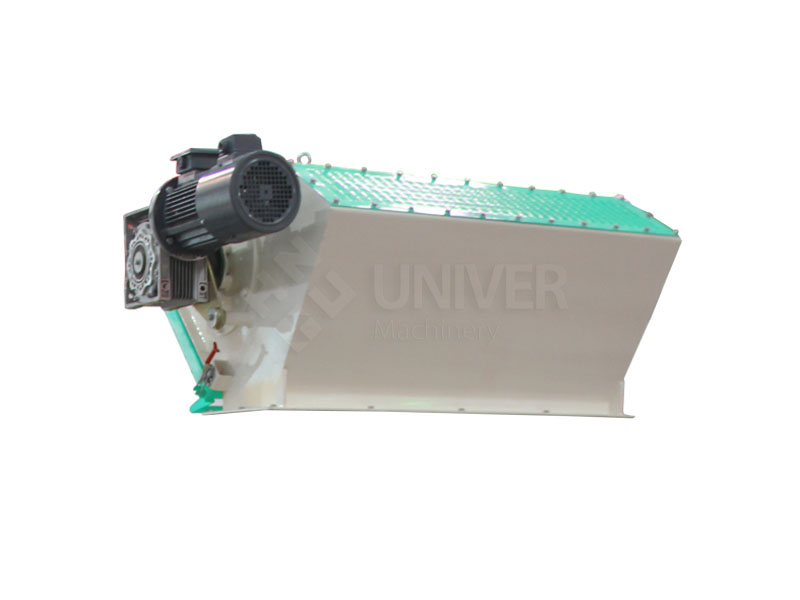

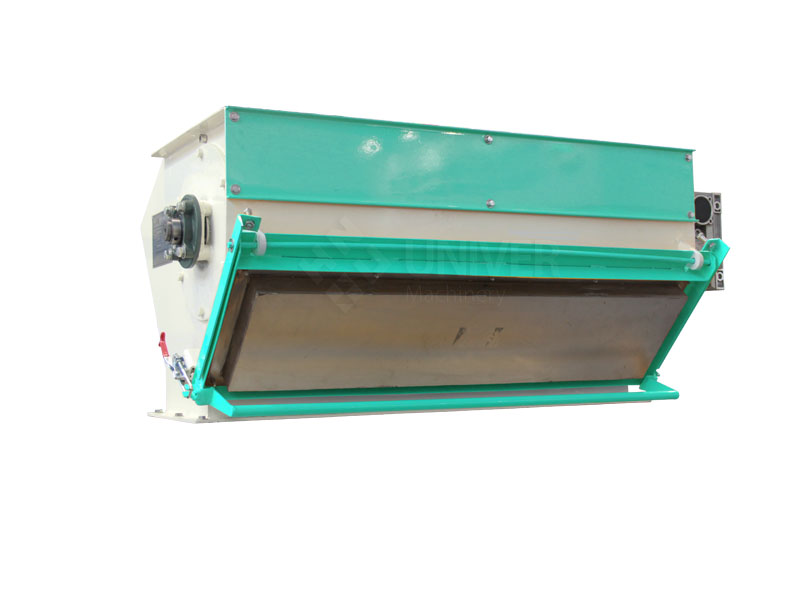

Impeller Feeder

Iron-removing impellet feeder is a feeding equipment for various granulas and powders. It can be used in feed plant and grain processing plants to ensure a clean material flow to the hammer mill machine.

Iron-removing device can protect the hammer mill machine and extend it’s service life.

Uniform feeding inlet throught the entire length ensures hammer mill runs soomthly.

The Max rotating speed 50r/min.

Get Inquiry  WhatsApp

Features

Frequency conversion feeding can control the feeding volume of the hammer mill in real time, and keep the hammer mill in full-load working state, and ensure it runs stably.

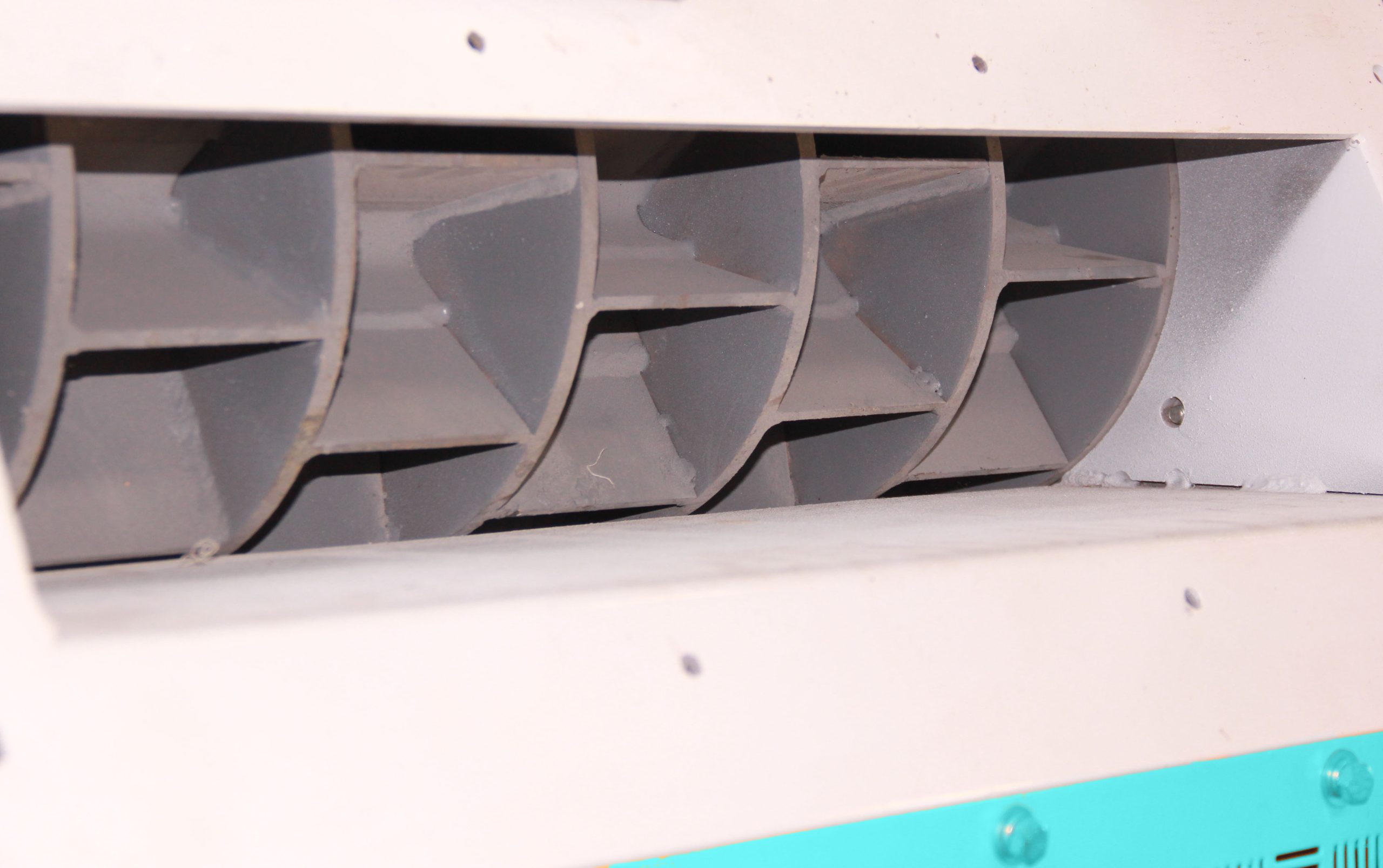

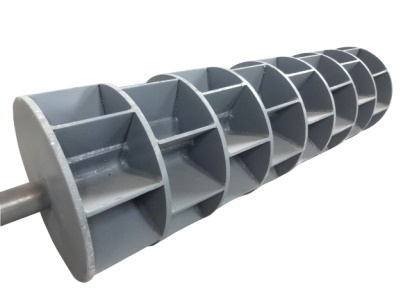

The feeding wheel of the impeller feeder adopts shallow and long groove, it can reduce the possibility of material being trapped in the groove.
The iron removal device and miscellaneous hopper are installed near the discharger port to ensure a clean material flow to the hammer mill machine.
Both ends of the shell are sealed with the end covers, prolongs the service life of the bearing with seat.

Technical parameters

Model	Capacity(tph)	Power(kw)
TWLY25X40	4-15	1.1(frequency)
TWLY25X60	5-20	1.1(frequency)
TWLY25X80	8-25	1.5(frequency)
TWLY25X100	10-36	1.5(frequency)
TWLY25X125	11-40	2.2(frequency)

Note: above data is based on volume weight is 720kf/m³corn as raw material. The working frequency of motor scope is between 20-50HZ.

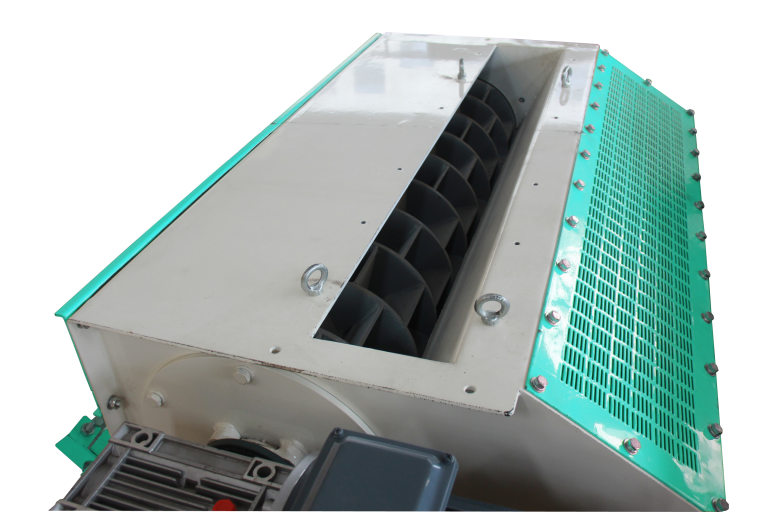

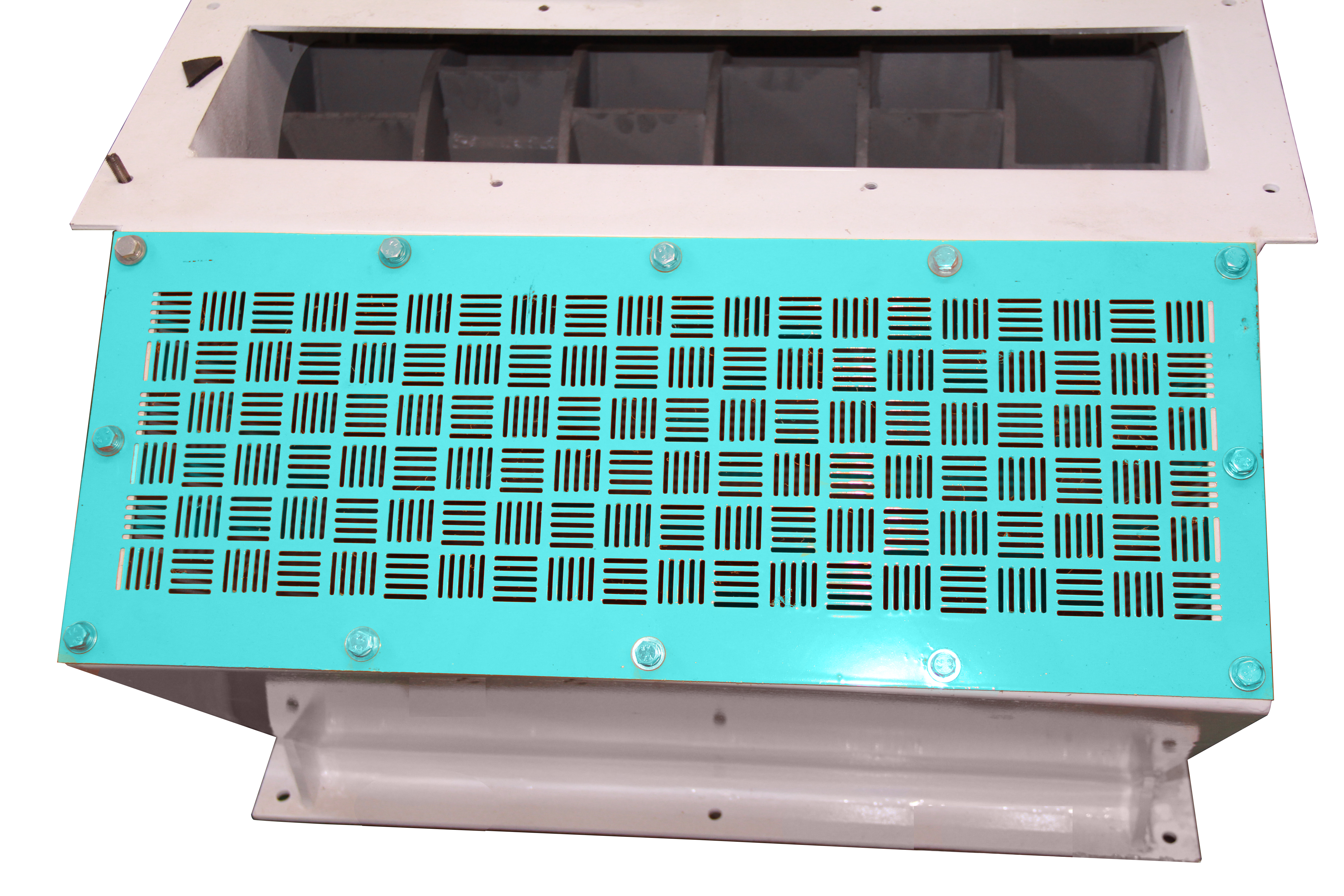

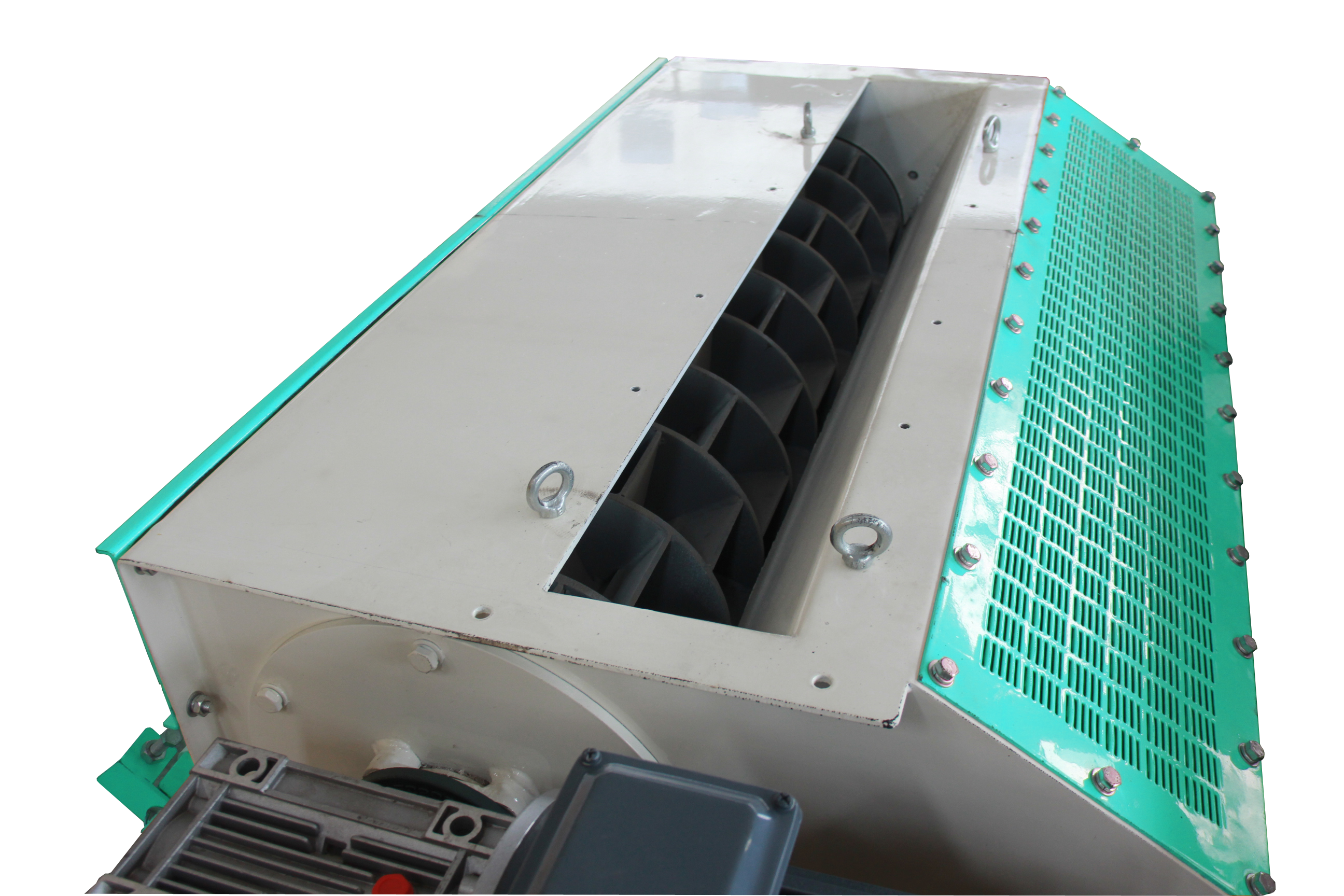

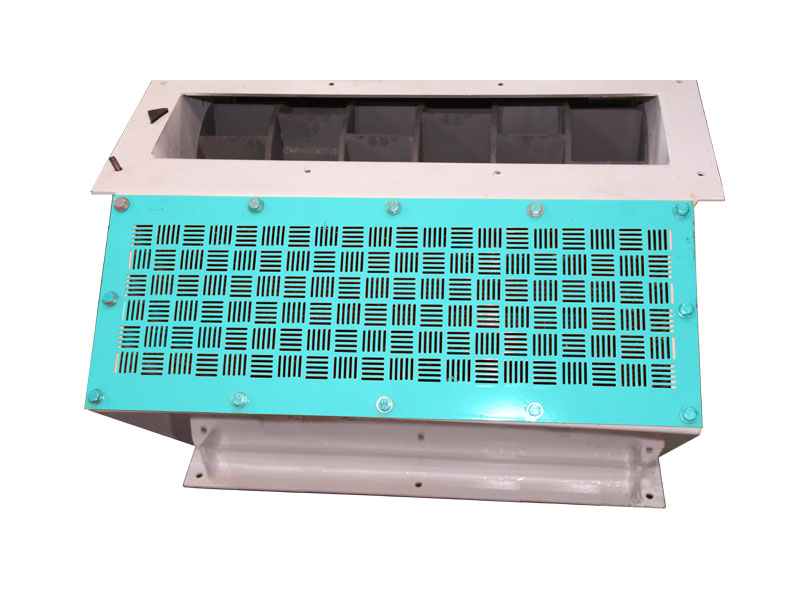

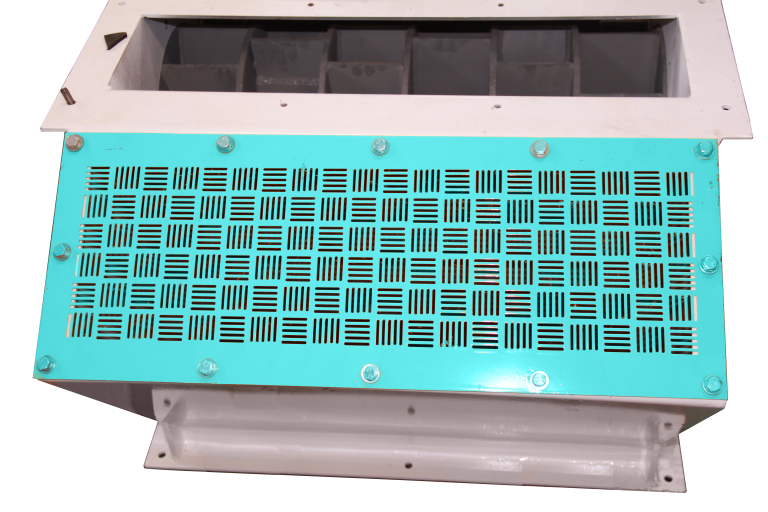

Details
