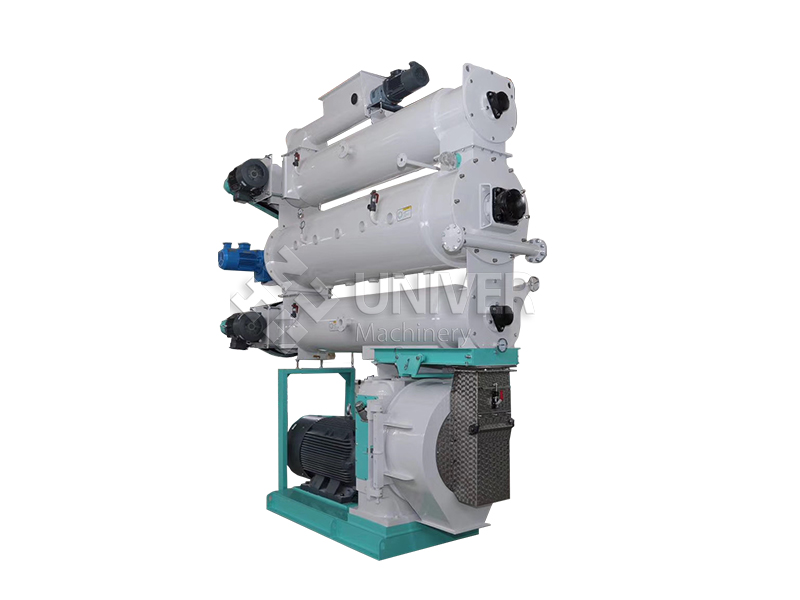

Gear-drive pellet mill

Livestock & poultry pellet mill adopts American and Eurpopean gear-drive system, It is suitable for high-grade poultry & livestock feed pelletizing for large and medium-sized breeding and feed processing.

High precision gear drive system,  15% higher production efficiency;

Optional double jacket conditioning system to produce high-grade feed or fish pellet feed;

Adjustable air conditioning system for ingredient aging;

Extended stainless steel conditioner with better design of conditioner blade and speed.





    Features

    • High precision gear direct-connecting driving is adopted for high efficiency and running stabilization.
    • Conditioner end is special sealed, axial steam spraying make material connect with steam more enough.
    • The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
    • Ring die special design for low bulk density pelleting.

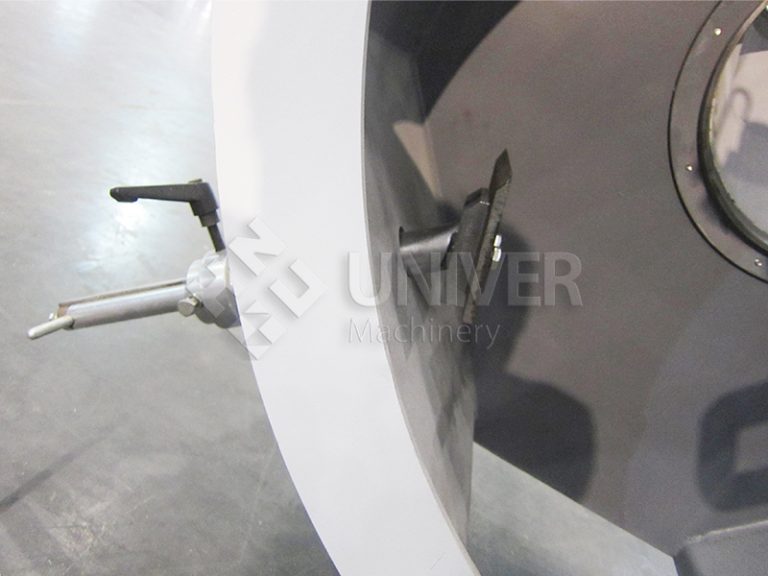

    • External discharging can be carried out by pulling out the external discharging lever arm of feed chute to prevent feed from entering the pellet chamber for the convenience of trial run and breakdown removal.

    Technical parameters

    ModelDie dia (mm)Main power(kw)Conditioner power(kw)Feeder power(kw)Capacity(tph)
    SZLH320Φ320372.20.552-5
    SZLH350Φ350552.20.553-6
    SZLH420Φ4201105.5/7.51.55-8
    SZLH508Φ508132/160111.512-18
    SZLH558Φ558160/20015/18.52.218-25

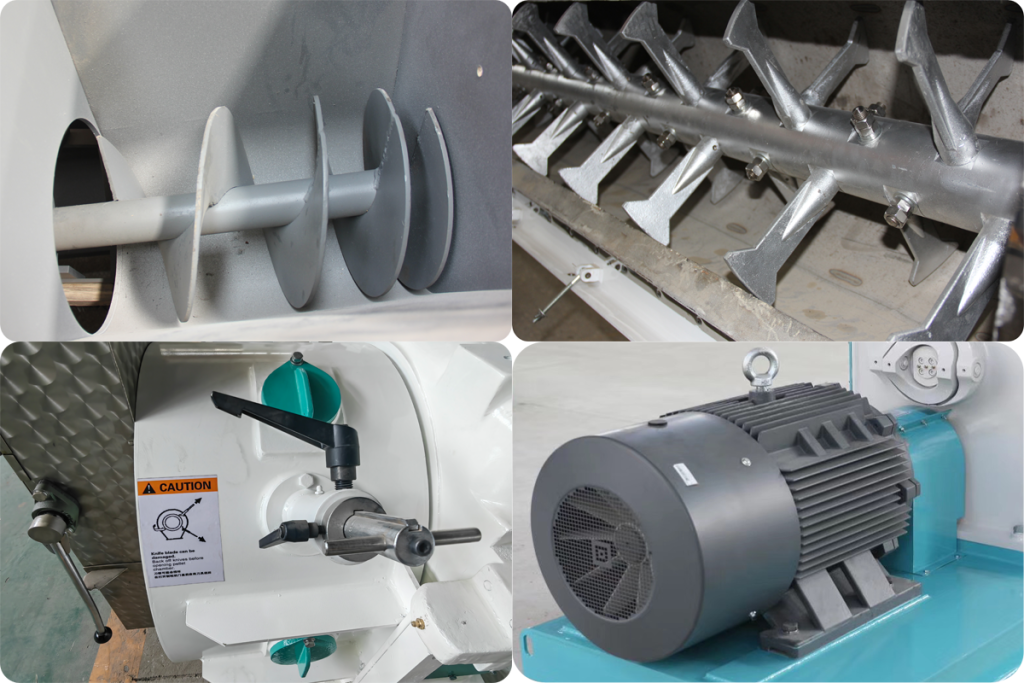

    Details

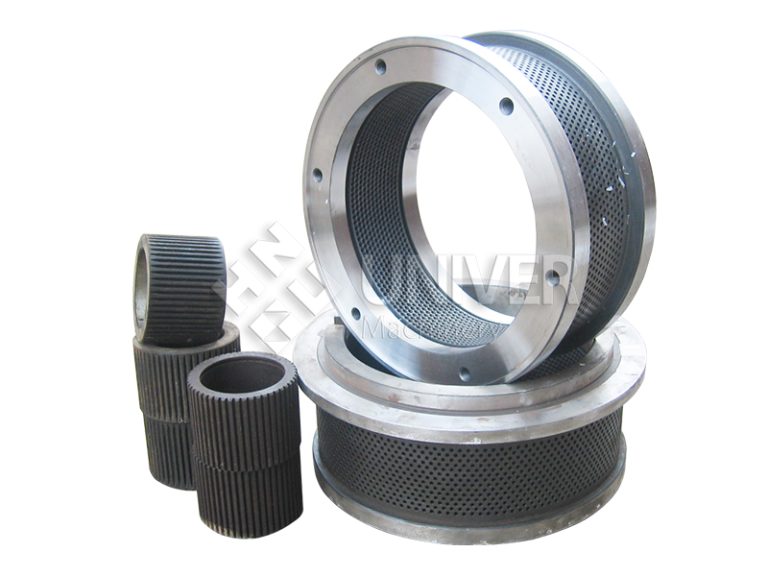

    Spare Part

    Video

    Related Case
    We will provide you with a complete solution

    8-10TPH COMPLETE CHICKEN FEED PRODUCTION LINE

    Before building this production line, the customer has a premix production line for commercial. After several times visiting, our technical team surveyed and mapped the site, and designed customized solutions according to the needs of customers. ..
