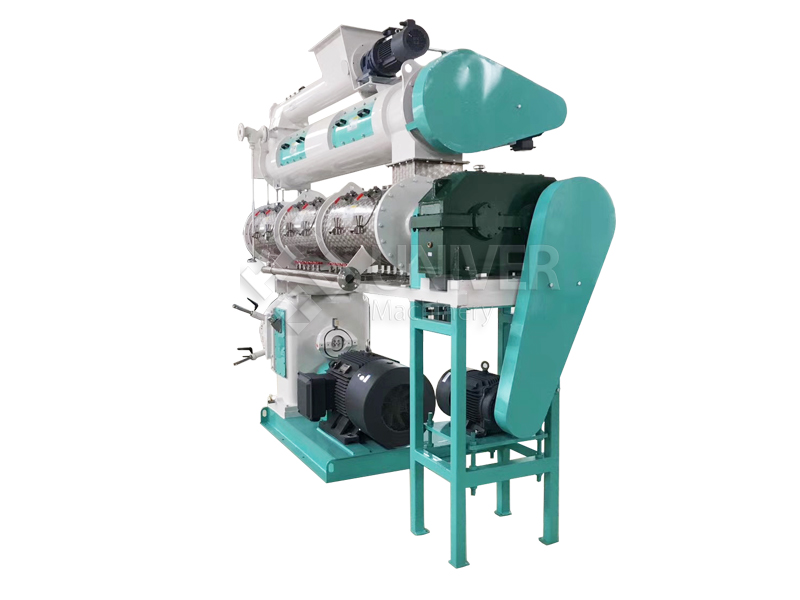

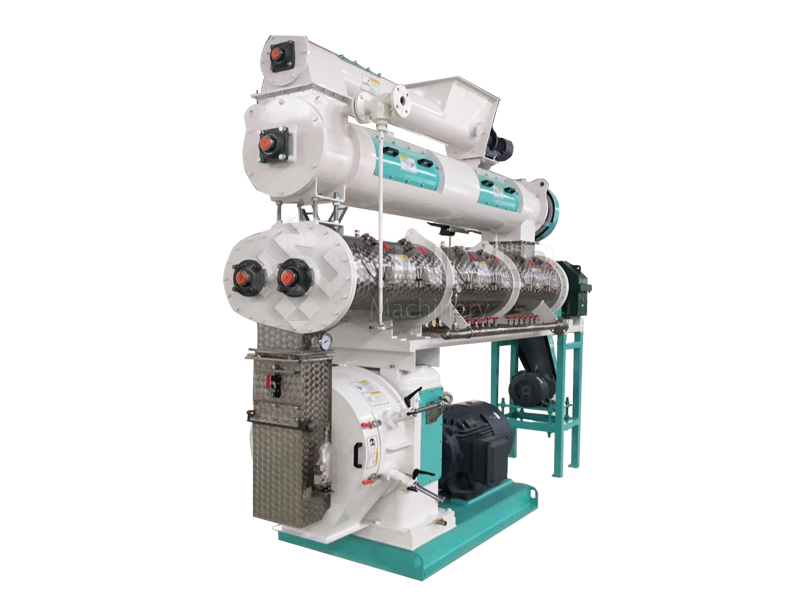

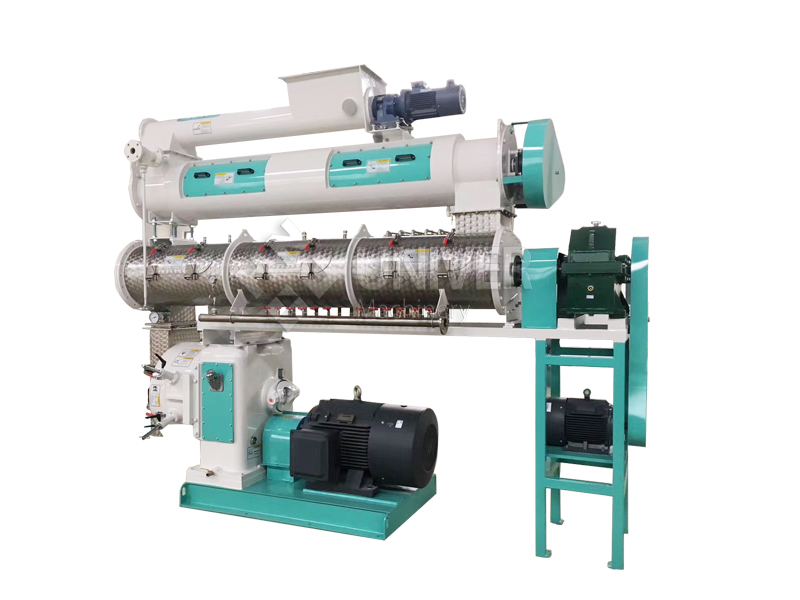

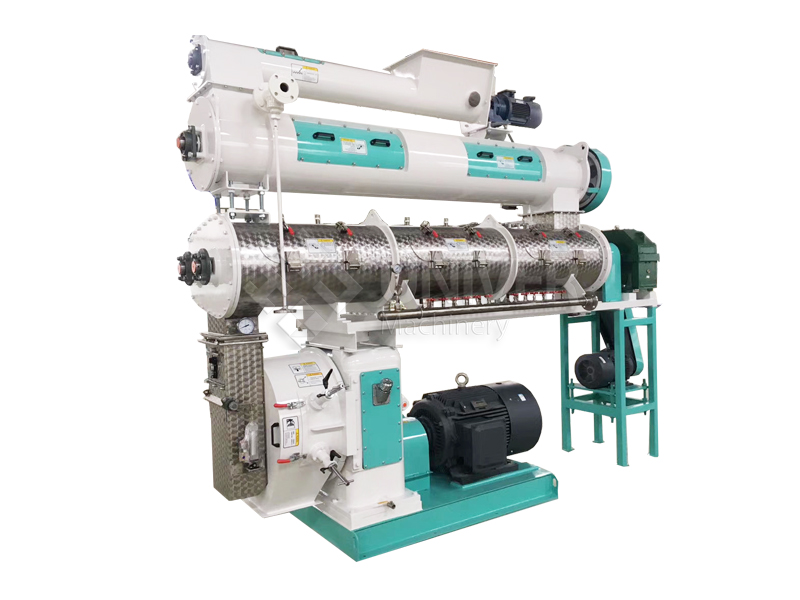

Gear-box aquatic pellet mill

Gear-box aquatic pelllet mill can produce various high grade aquatic feed and soaking shrimp feed which floats or sinks fully.

Gear transmission system, higher efficiency and low cost of use;

The optimized conditioning system extends the conditioning time and ensures good feed quality;

Motor and bearing brands are optional;

    Features

    1.Longer cooking and mixing time

    Adopting a differential conditioner plus double level jacket insulation, it optimizes the speed of conditioning shaft and the form the blade is installed. The material can be fully mixed and has sufficient long holding time, with better cooking and mixing effect.

    2. Higher yield

    Improved the speed of ring die based on the characteristics of the shrimp feed, which increases the yield of the device and the quality of feed.

    3.  Automatic discharging of the machine

    Pneumatic discharging mechanism is added in chute feed system. The equipment can realize automatic discharging when it’s blocked or when the main motor is overloaded.

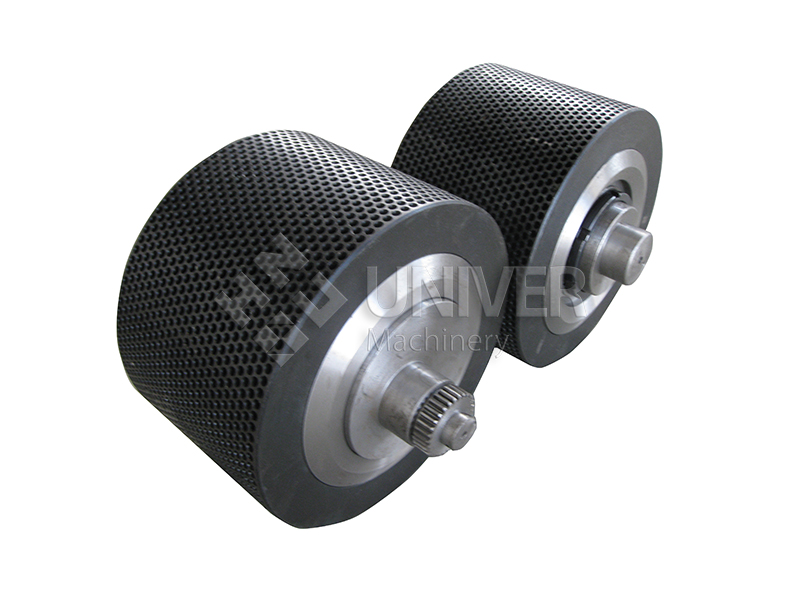

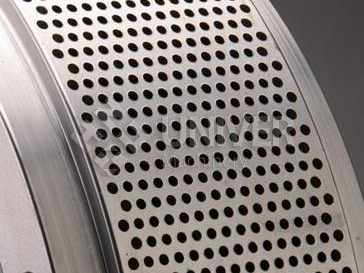

    4. Long working life of compression mold and compression roller

    The compression mold and roller makes the materials more easily to come into the pressing zone, produces more even feed and more smooth operation.

    Technical parameters

    ModelDie dia (mm)Main power(kw)Conditioner power(kw)Feeder power(kw)Capacity(tph)
    SZLH320Φ320372.20.552-5
    SZLH350Φ350552.20.553-6
    SZLH420Φ4201105.5/7.51.55-8
    SZLH508Φ508132/160111.512-18
    SZLH558Φ558160/20015/18.52.218-25

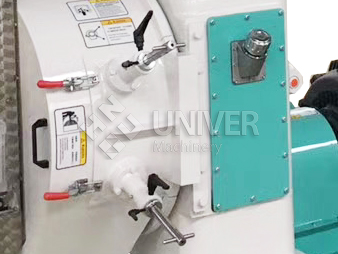

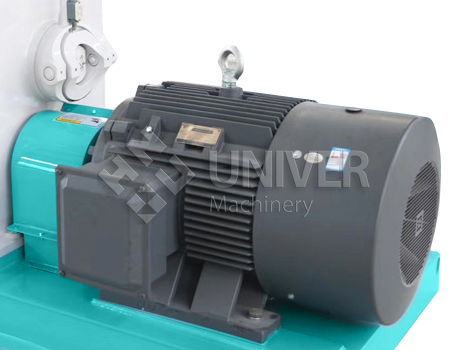

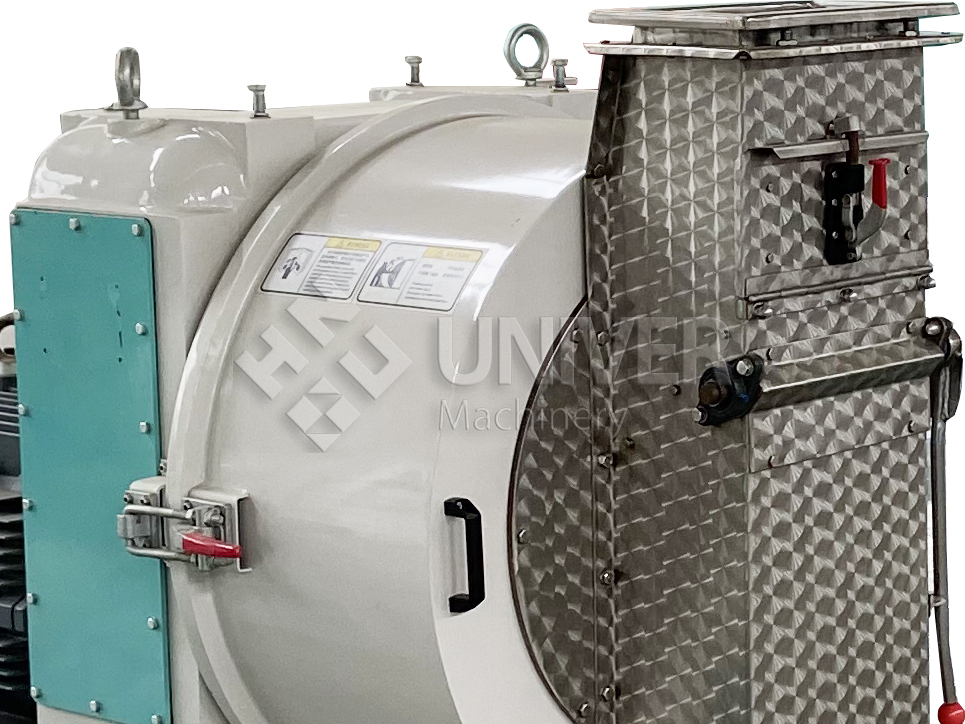

    Details

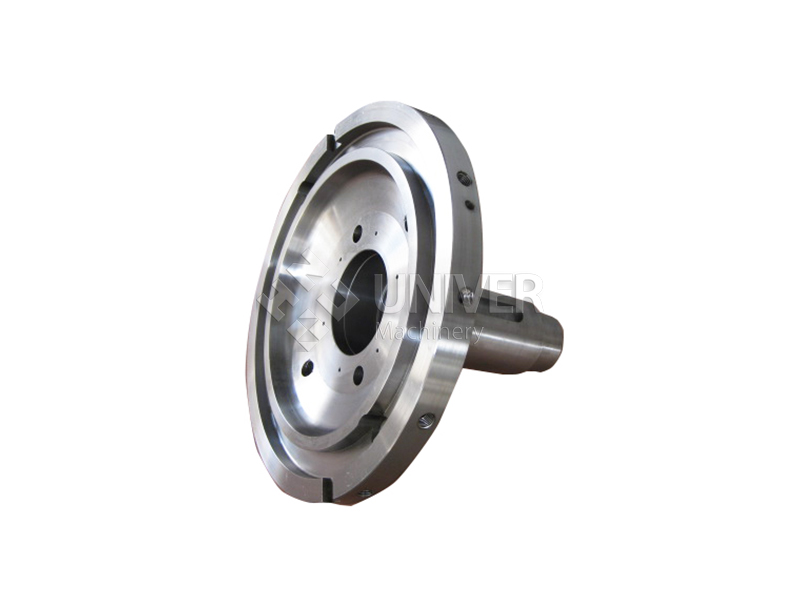

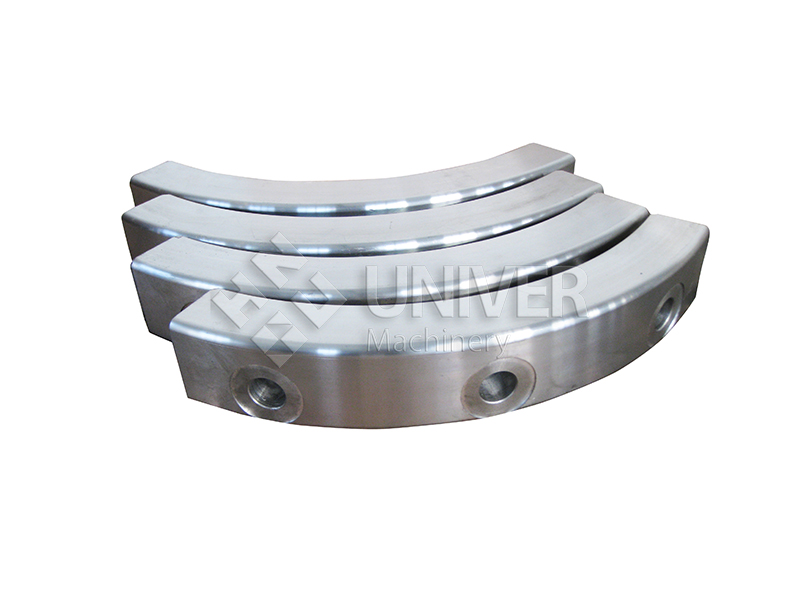

    Spare Part

    Video

    Related Case
