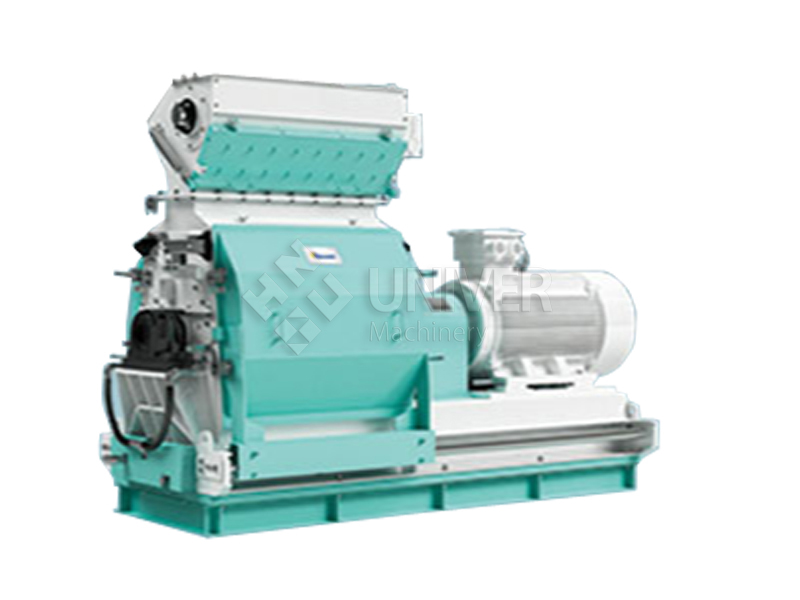

Fine-grinding hammer mill

It is widely used in fine grinding high-grade various broken materials in poultry feed, aqua feed, and piglet feed.

High capacity

Widened grinding surface (1.5 times of normal), capacity increased 25% higher;

Stable performance

Dynamically balanced high-precision rotor,stable running and low noise;

Customizable solution

Including machine size, feeder, screen size, aspiration system, underneath hopper,etc.

    Features

    1. High quality, high frequency, high fineness, low temperature rise.

    2. Special arrangement of hammer blades ensures stable operation;

    3. The unique double U-shaped secondary crushing structure can increase the output by 10%-30% compared with other models (below φ1.0mm sieve);

    4. Increase the collision friction crushing device to effectively improve the crushing fineness;

    5. The gap between the hammer and the sieve is adjustable, suitable for crushing with different particle sizes.

    6. The movable fully-opening operation door is safe and convenient to operate.

    7. The direction of rotor rotation is reversible.

    Technical parameters

    ModelCapacity(tph)Power(kw)
    SFSP65*40W2.0-4.045/55/75
    SFSP65*60W2.5-5.045/55/75
    SFSP65*80W8.0-10.055/75/90/110
    SFSP65*100W7.0-13.0132/160/200
    SFSP65*125W9.0-20.0132/160/200/250
    SFSP65*150W13.0-20.0250/315/355

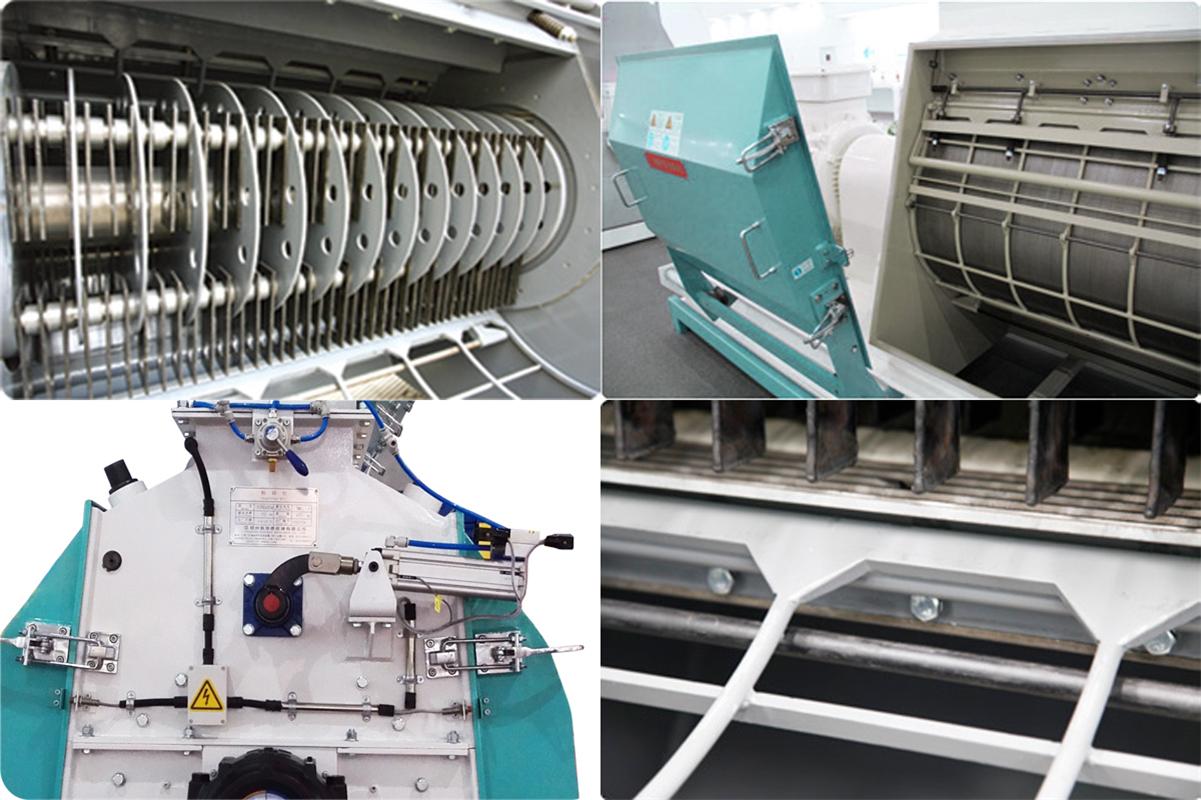

    Details

    Spare Part

    Video

    Related Case
    We will provide you with a complete solution

    Feed industry 3X3000T and 3X200T bolted steel silo project

    Used to storage the corn and soya meal, to supply the corn and soya meal to the 20tph animal feed plant directly, no need to feed the corn and soya meal by workers, save labor cost…..
