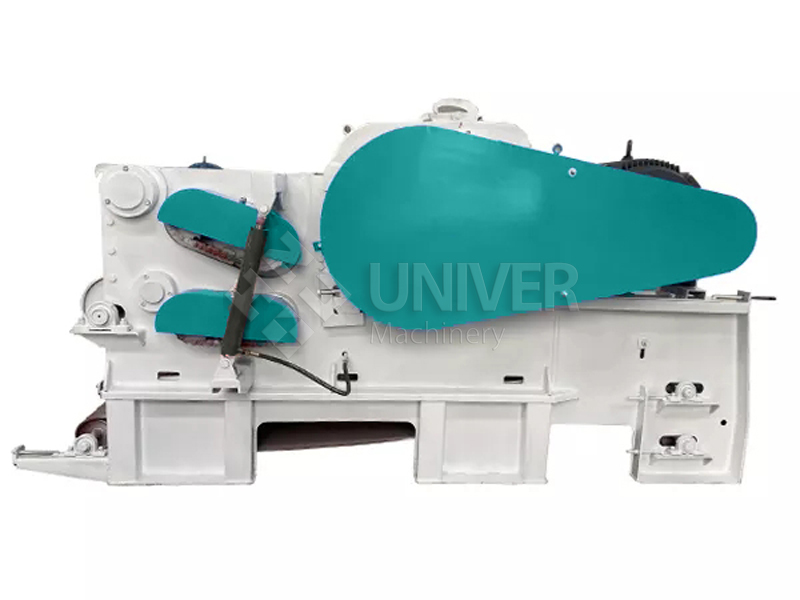

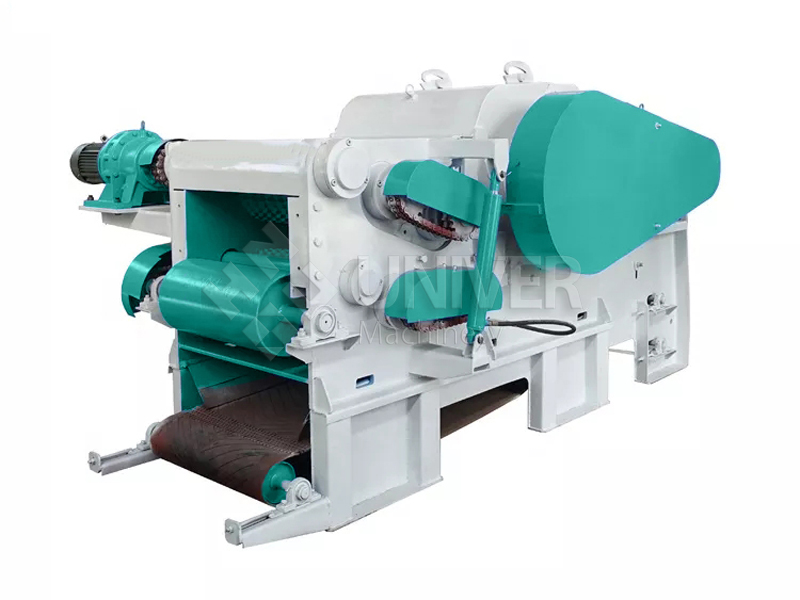

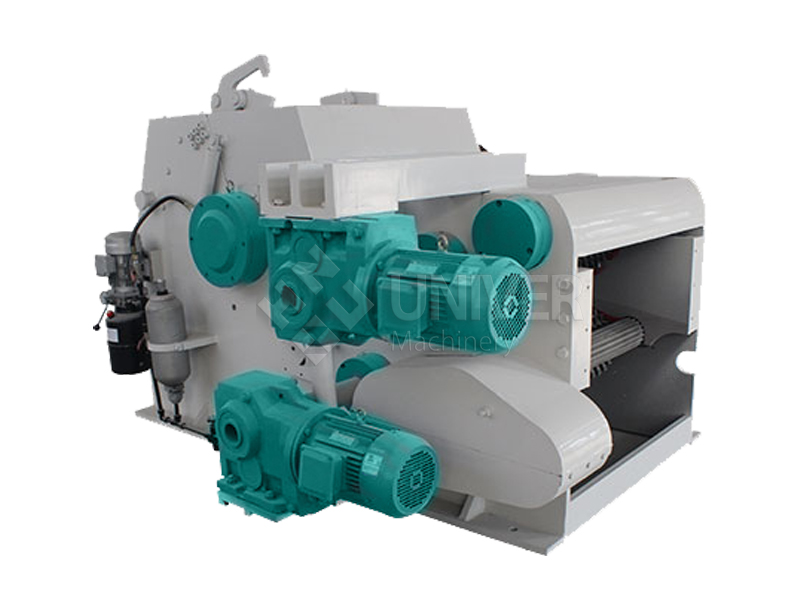

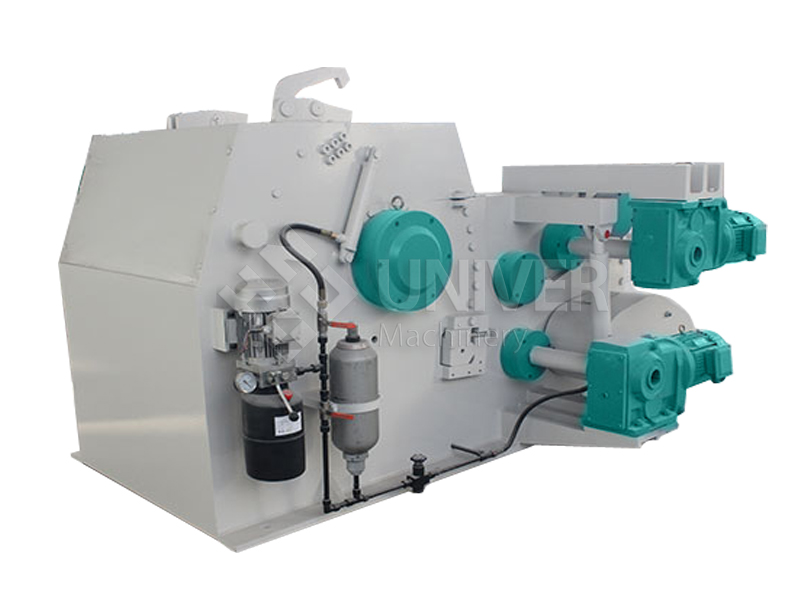

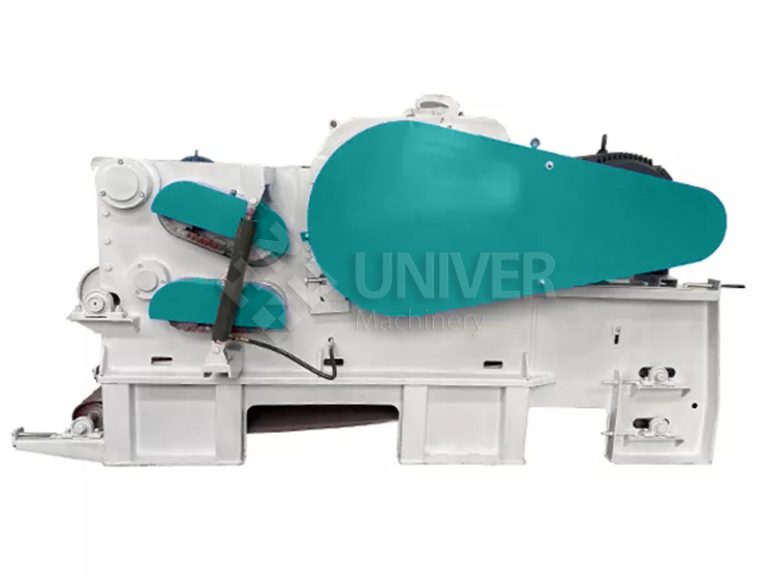

Drum Wood Chipper

The drum wood chipper is a machine that cuts large size wood, wood harvesting residues and wood processing residues (veneers, laths, log cores, waste veneers, etc.) into smaller pieces. It is widely used in wood shaving plant, high-density fiber board plant, stubble plant, biomass power plant, etc.

The raw materials have wide adaptability and are easy to operate and maintain;

Advanced structure and high chipping quality;



    Features

    1. Available raw material: wood logs, braches and twigs with moisture more than 15%.

    2. The blade is made of special material with high strength and wear resistance.

    3. Low power consumption, which is 20-30% lower than similar product in market.

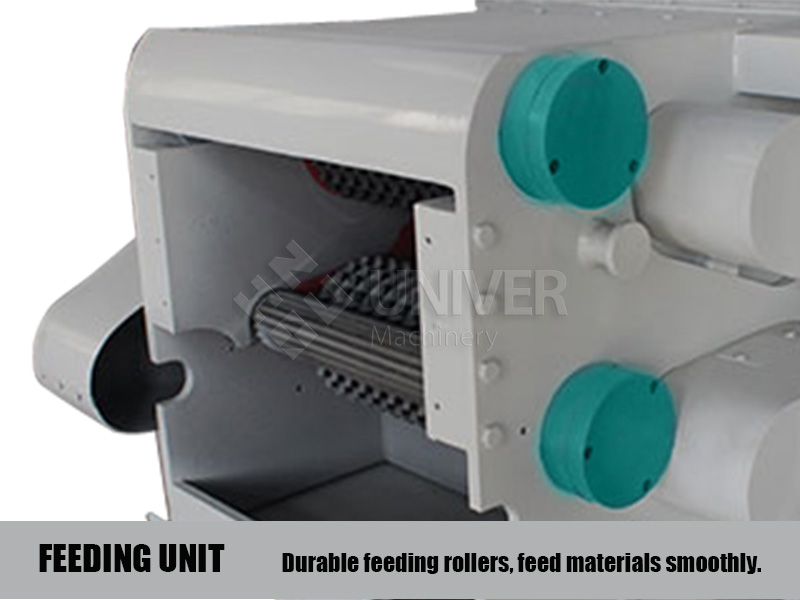

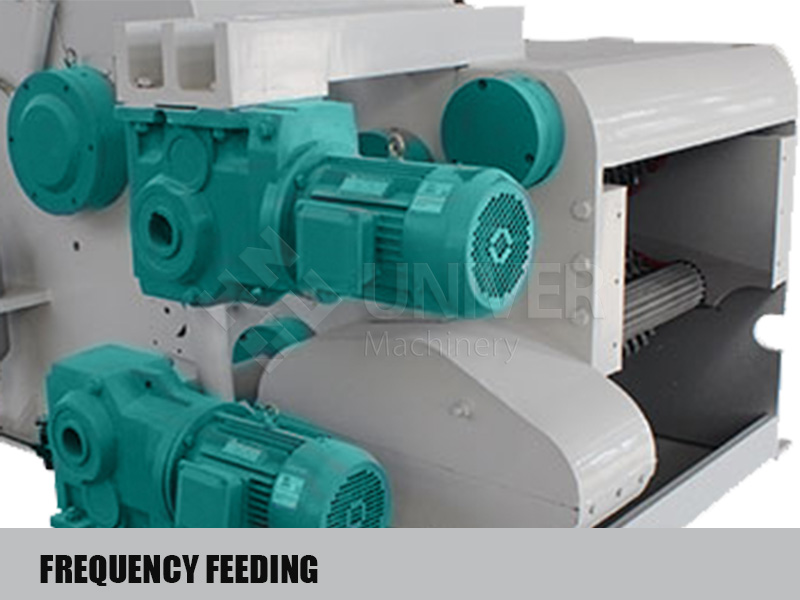

    4. Feeding system consists of feeding and squeezing parts.

    5. Forging dead plate, with high strength and long service life.

    Technical parameters

    ModelGBX213GBX216GBX218GBX2110GBX2113
    Feeding size(mm) 120*300180*500225*680240*1050400*1050
    Rotate knives(pcs)   22223*2
    Max material dia(mm)90120160200230
    Capacity(tph)3-510157075
    Main motor (kw)3055110220315
    Feeder motor(kw)1.1*23*24*27.5*211*2

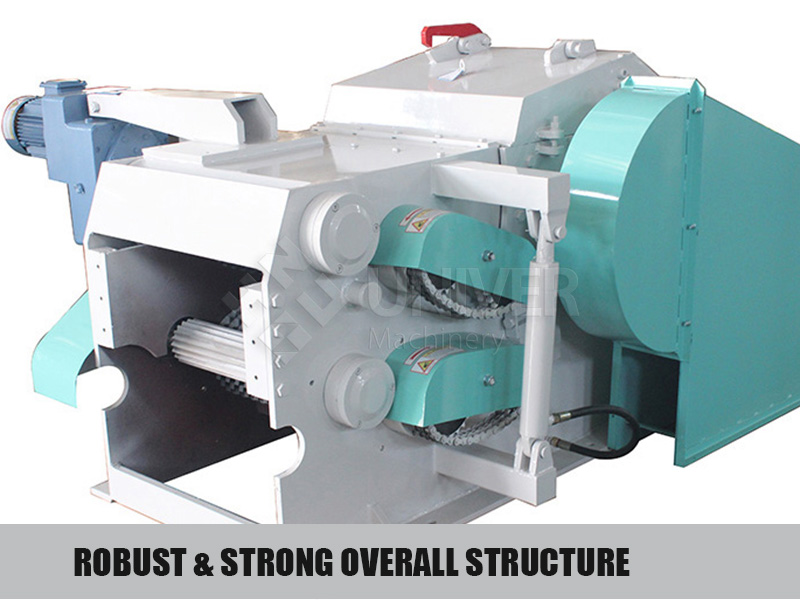

    Details

    Spare Part
