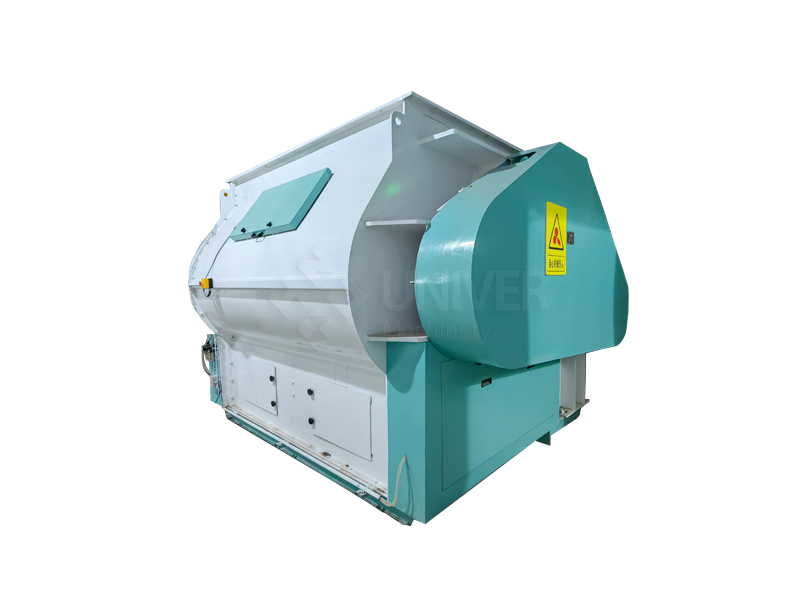

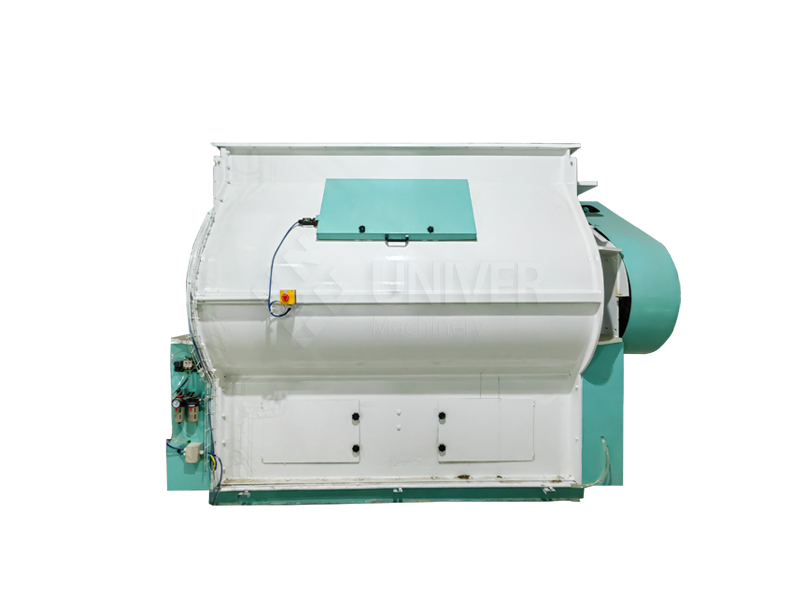

Double-shaft Paddle Mixer

The double-shaft paddle mixer can be used in livestock and poultry feed, aquatic feed, premix additives, pigments, pharmaceuticals, chemicals, food additives and other materials with different characteristics, different properties, different specific gravity, different fineness, etc.

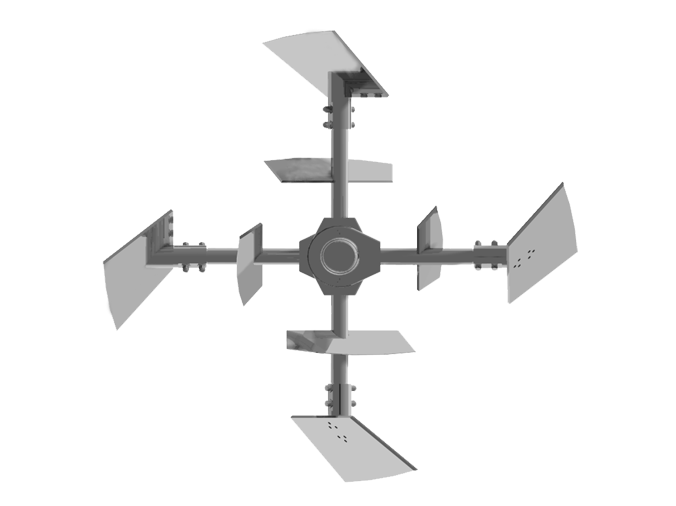

Advanced double layers-mixing theory;

It can adopt spray equipment to reduce residue;

Have better effect with a variety types of liquids, such as oil, water, molasses, etc.

Features

Short mixing cycle and high mixing uniformity.

Generally, the materials is mixed within 45-60 seconds, and the uniformity CV is less than or equal to 5%, which reduces the mixing time and greatly improves the mixing efficiency.

Mixing does not produce segregation, and various liquids can be added.

During the mixing process, there will be no classification of materials, and there will be no segregation due to large differences in specific gravity, particle size, etc. So that high-precision mixtures can be obtained.

The material is discharged quickly and the residue is small.

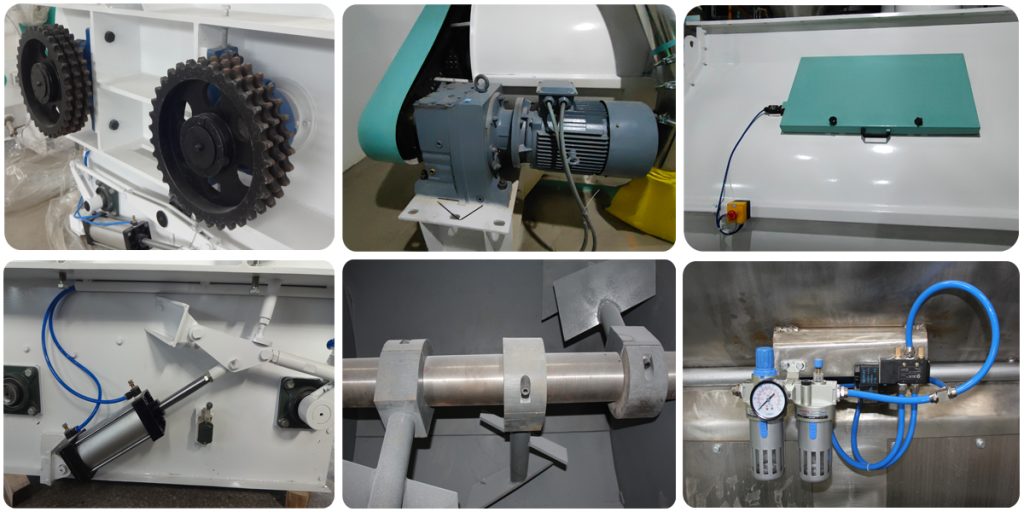

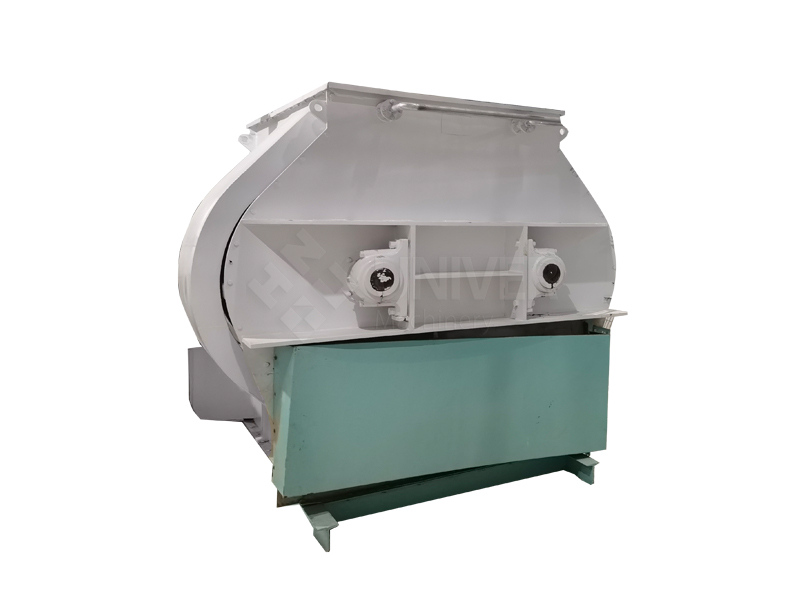

The bottom adopts a full-length double-door structure, so the discharge is rapid and the residue is small.

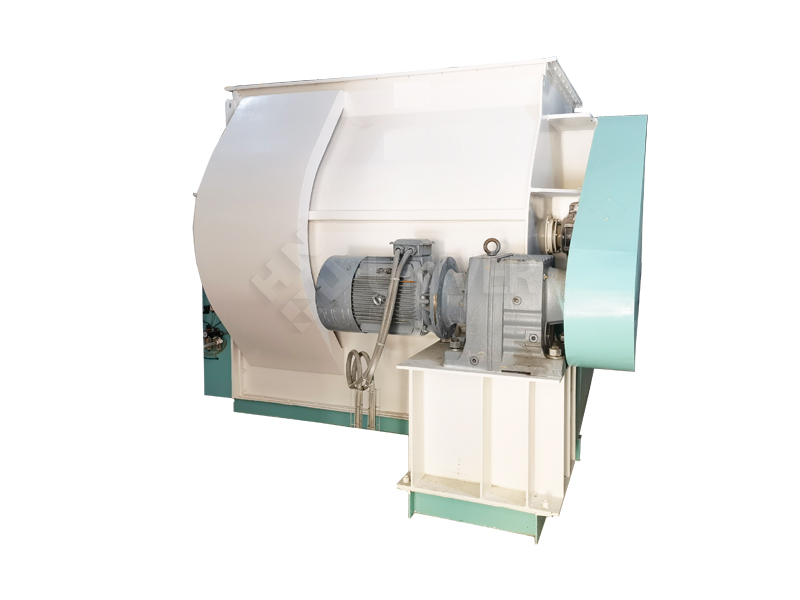

The sprocket chain adopts a three-row chain structure, the transmission mechanism is unique, and the operation is stable.

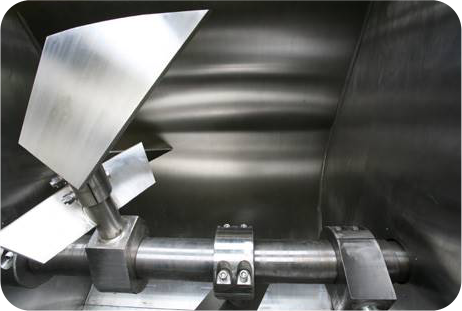

The machine tank adopts a unique “W”-shaped structure, with a small opening, a large middle, and a narrow lower part, it occupies a small area.

Technical parameters

Model	Volume(m³)	Capacity(kg/batch)	Power(kw)
SJHS0.1	0.1	50	2.2
SJHS0.2	0.2	100	2.2
SJHS0.5	0.5	250	5.5/7.5
SJHS1	1	500	11/15
SJHS2	2	1000	18.5/22
SJHS3	3	1500	22
SJHS4	4	2000	37/45
SJHS6	6	3000	55
