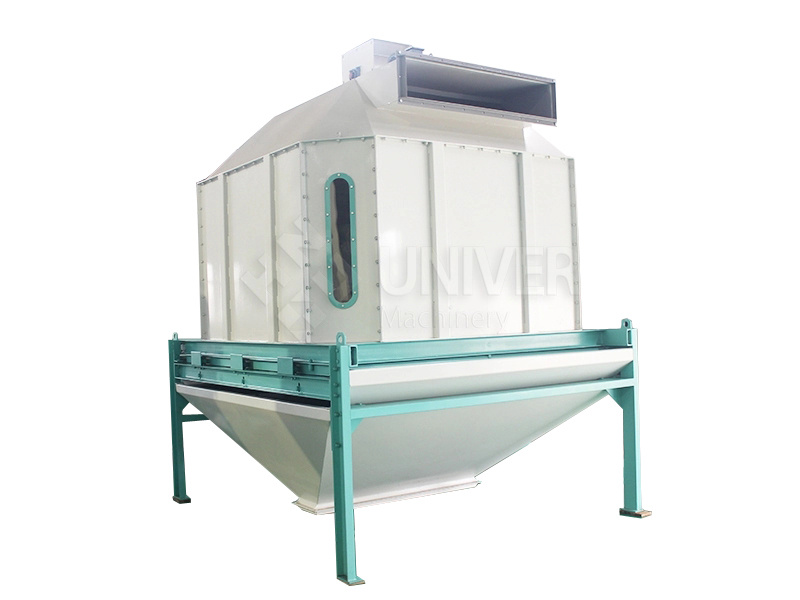

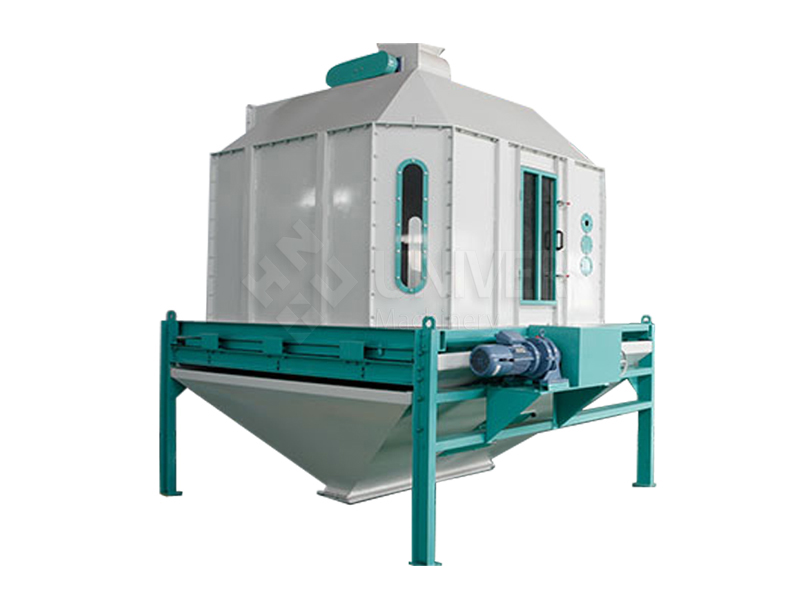

Counter Flow Cooler

It is widely applied in feed industry to cool granular materials such as particles, expansion feed etc.

Special slide valve discharging structure;

Full even cooling effect;

Smooth running and discharging;

The particle temperature will not be higher than ambient temperature by +3-5°C after cooling.



    Features

    Effective and fully cooling

    Advanced counter flow cooling principle with full even cooling. Granulate materials flow from the top to the bottom and the cold air is from the bottom to the top, which realizes even cooling.

    Smooth running and discharging

    Slide valve discharging structure ensures smooth running and discharging;

    Prolonged of feed storage

    After cooling the particle temperature will not higher than ambient temperature by +3~5°C, which is suitable for packing directly and prolonged the storage time.

    Automatically stop during discharging

    Technical parameters

    ModelCapacity(t/h)Cooling time(min)Material Temperature after coolingPower(kw)
    SKLN1.53  No less than 6-10 min  Not higher than room temperature by +3-5°C0.75+0.55
    SKLN2.550.75+0.55
    SKLN4101.5+0.75
    SKLN6151.5+0.75+0.37
    SKLN8201.5+0.75+0.37
    SKLN10251.5+0.75+0.37

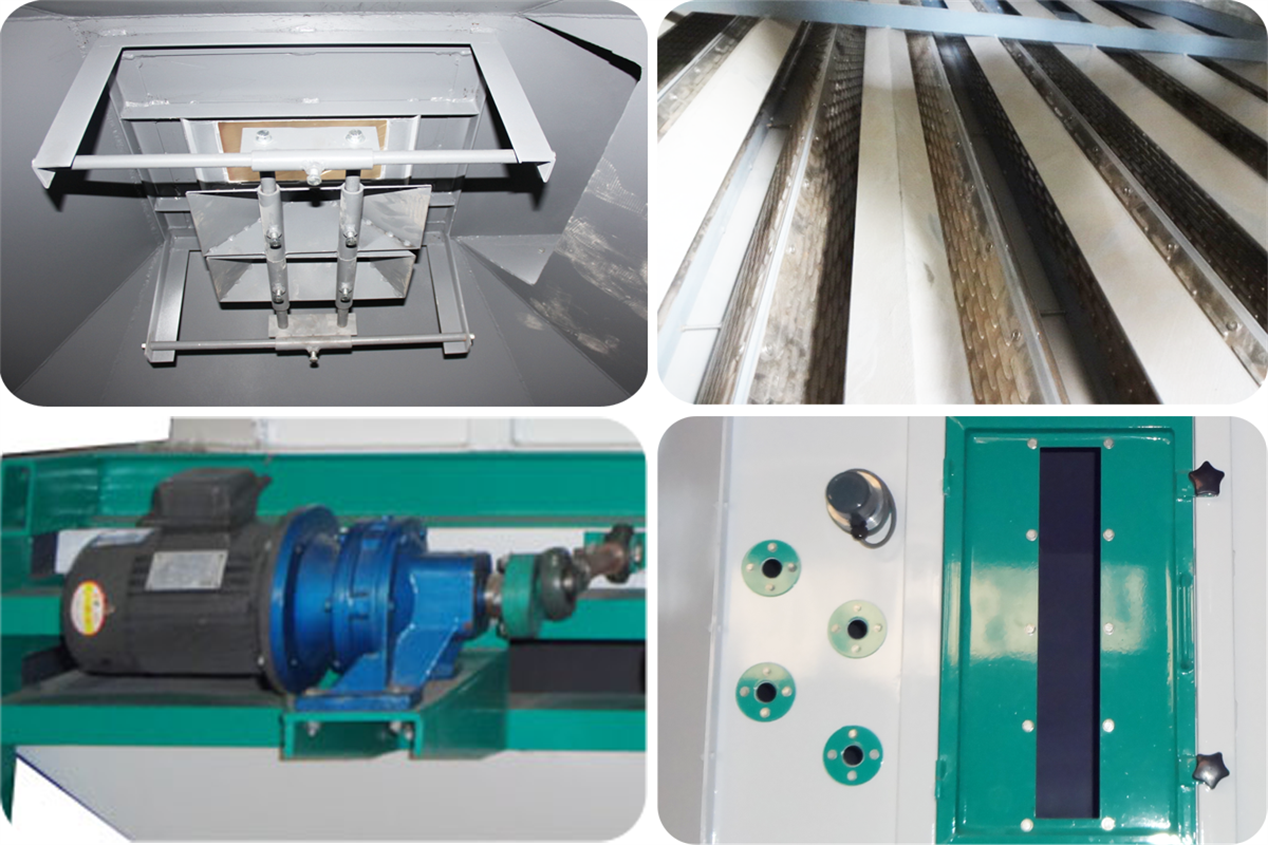

    Details
