Bucket Elevator

It is suitable for vertical lifting of pellets and powders in feed, chemical industry, wharf, grain depot, grain and oil processing and other industries.

Equipped with explosion relief port, it can prevent dust explosion and is safe;

Feeding cound be in both shaft-end and upwards direction;

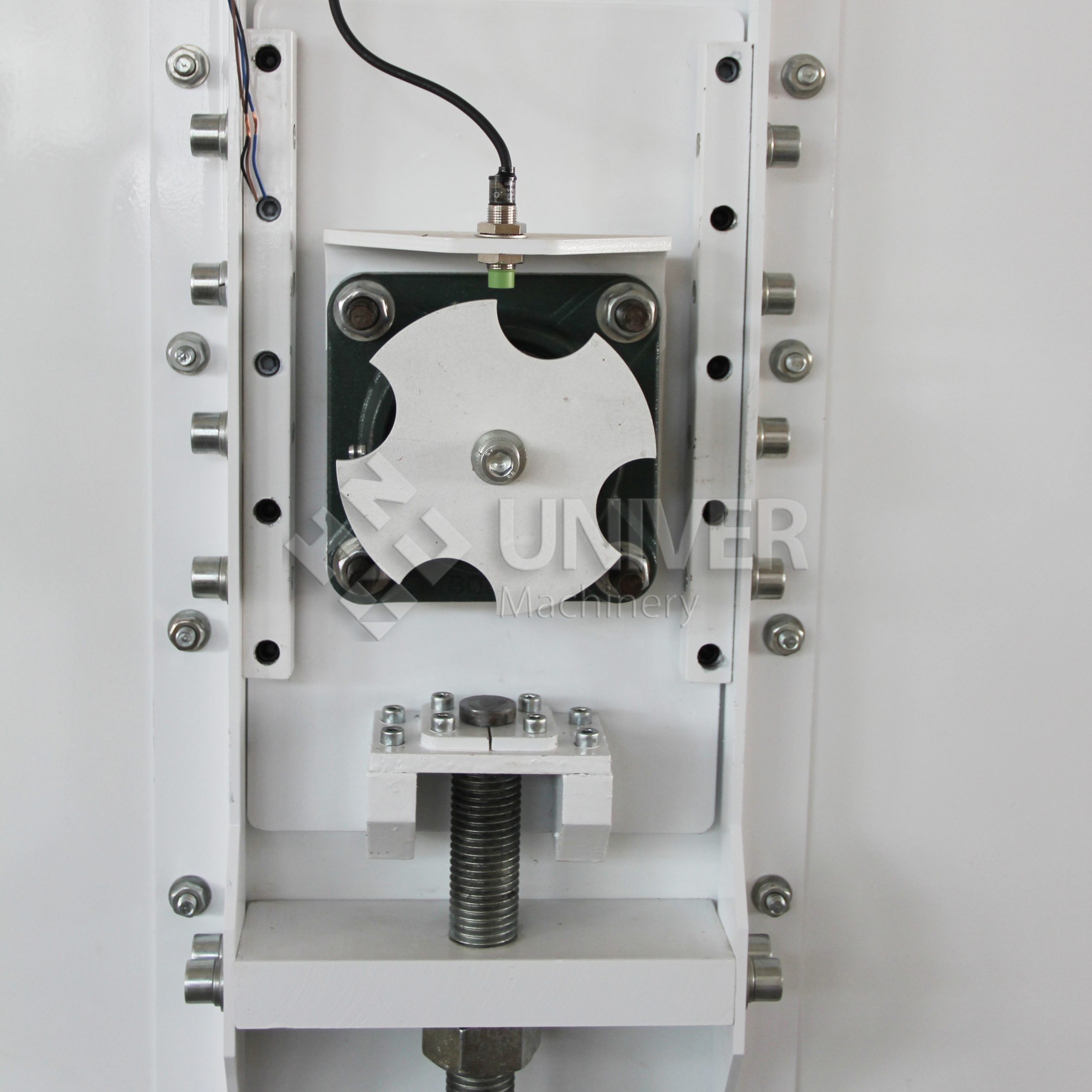

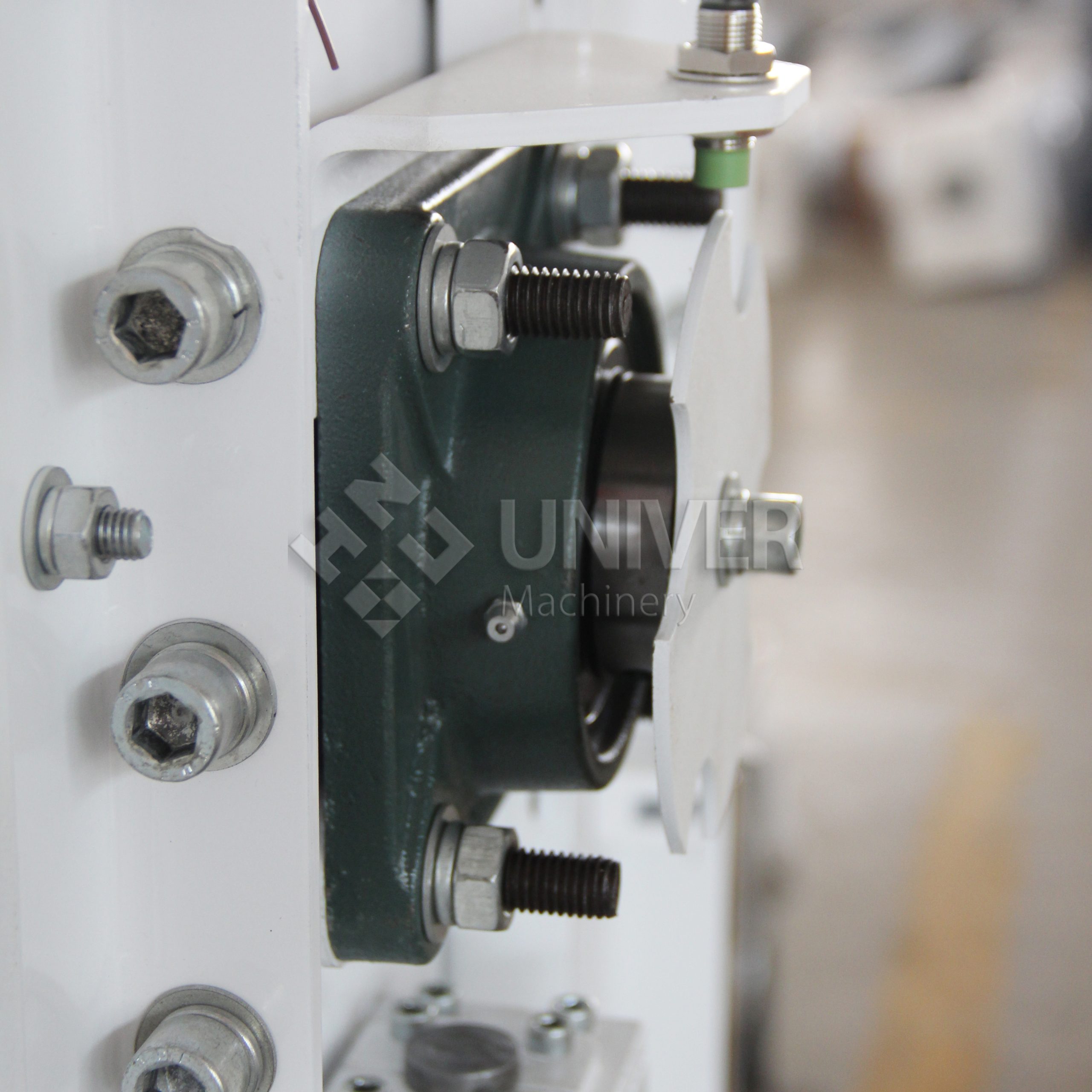

Adjusting plate adopts sealing treatment, no leakage of product when tensioning the belt by screw device;

Compact structure, beautiful appearance, high output and high conveying capability;

Rubber covering tehcnology is adopted for head pulley to increase friction coefficient and prevent belt from slipping.

Get Inquiry  WhatsApp

Features

Common for powder and granular materials, equipped with explosion-proof cover and pressure balance device;

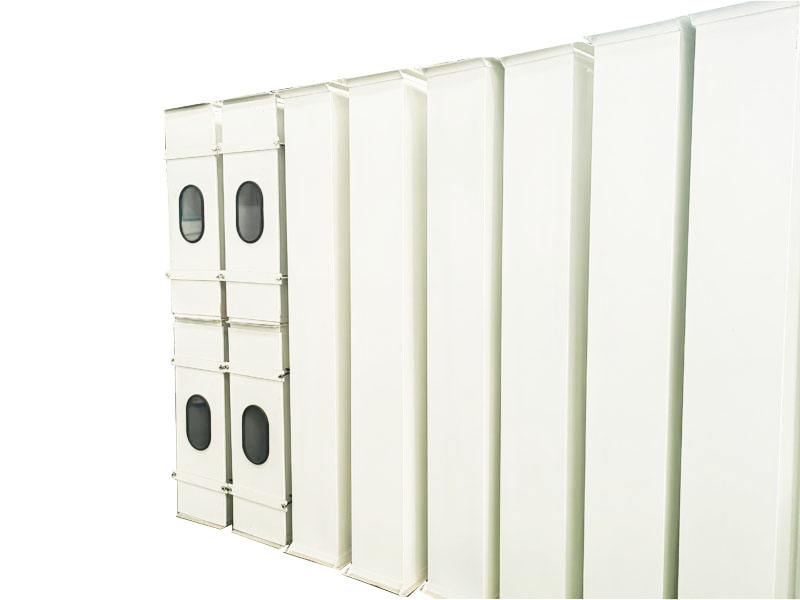

The machine barrel adopts the edge-folding and seaming process, which has high strength and good sealing;

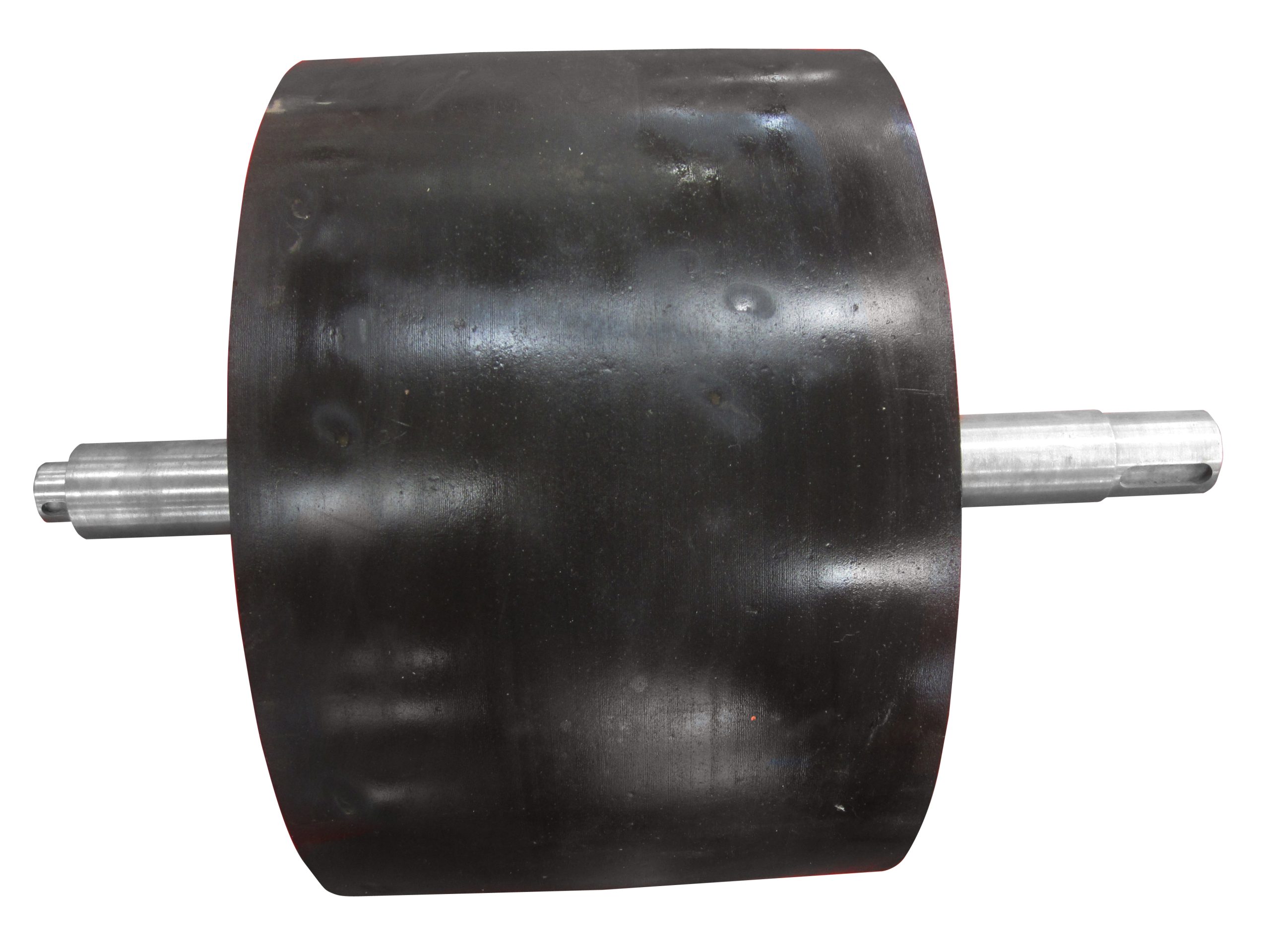

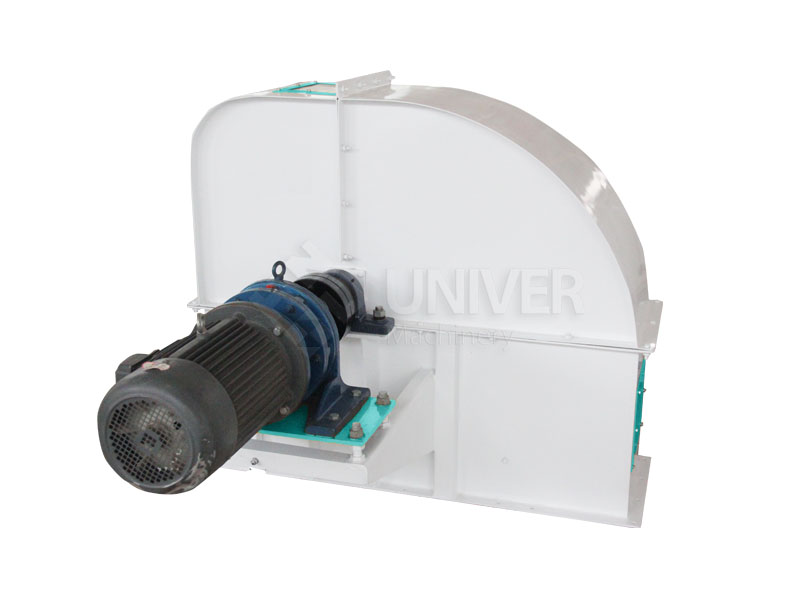

The head wheel is covered with delicate rubber, which is wear-resistant and effectively prevents the belt from slipping;

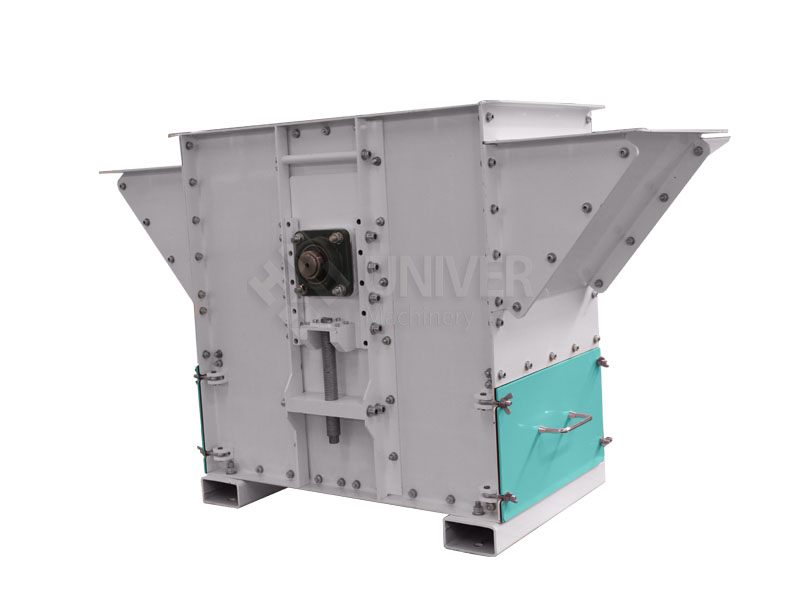

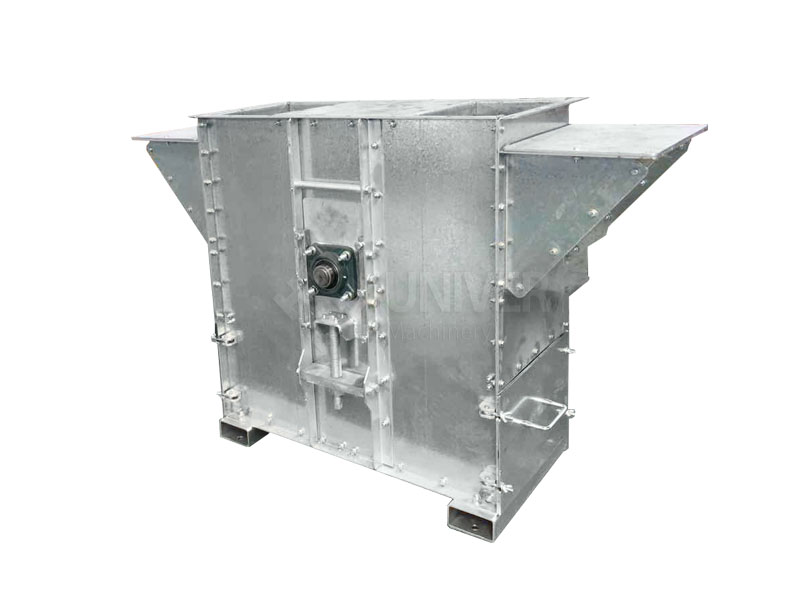

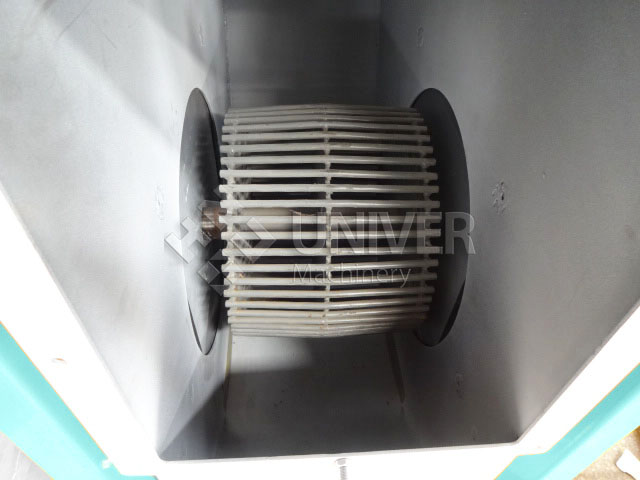

The self-cleaning machine base adopts a structure combining coarse adjustment and fine adjustment to ensure the least residue, and the large-opening door design is convenient for cleaning and maintenance.

Technical parameters

Model	Capacity (m³/h)	Power(kw)
TDTG26/18	20	1.5
TDTG36/18	30	3
TDTG36/23	35	3
TDTG40/23	40	3
TDTG40/28	55	4-5.5
TDTG50/23	60	5.5
TDTG50/28	80	5.5-7.5
TDTG63/28	120	11-18.5
