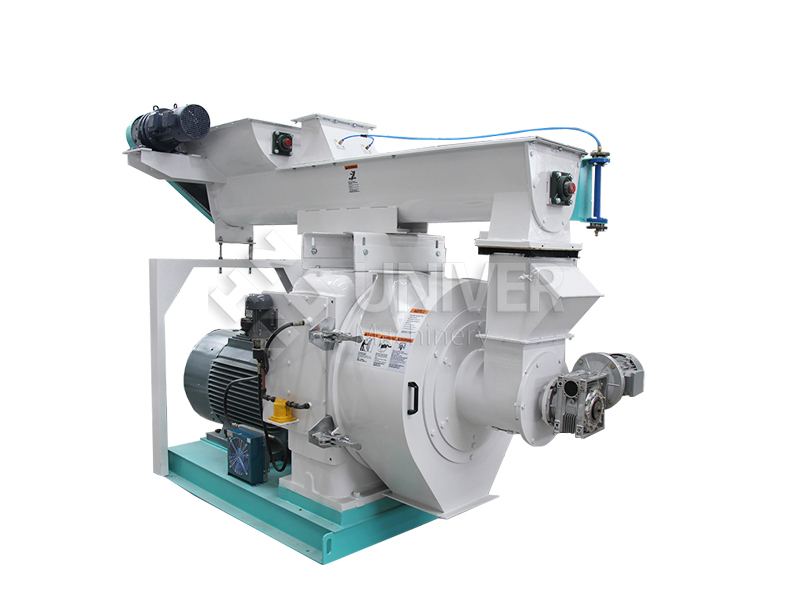

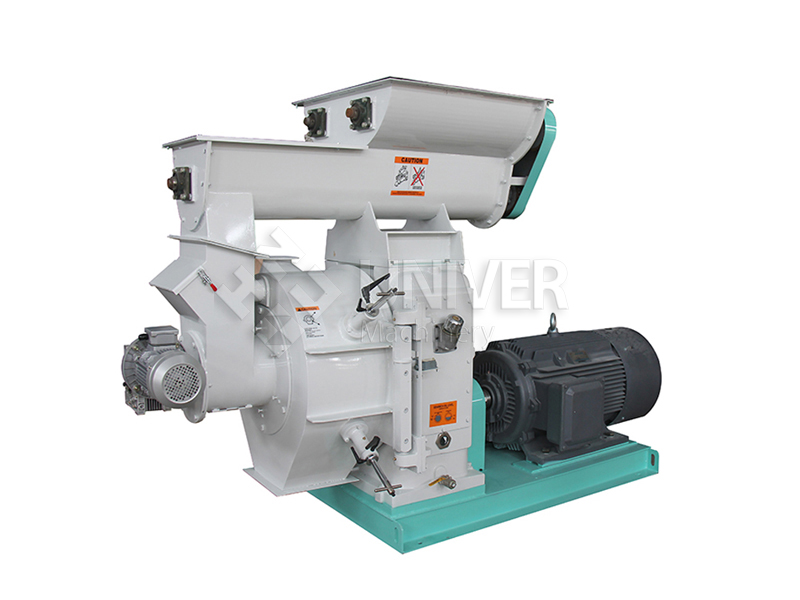

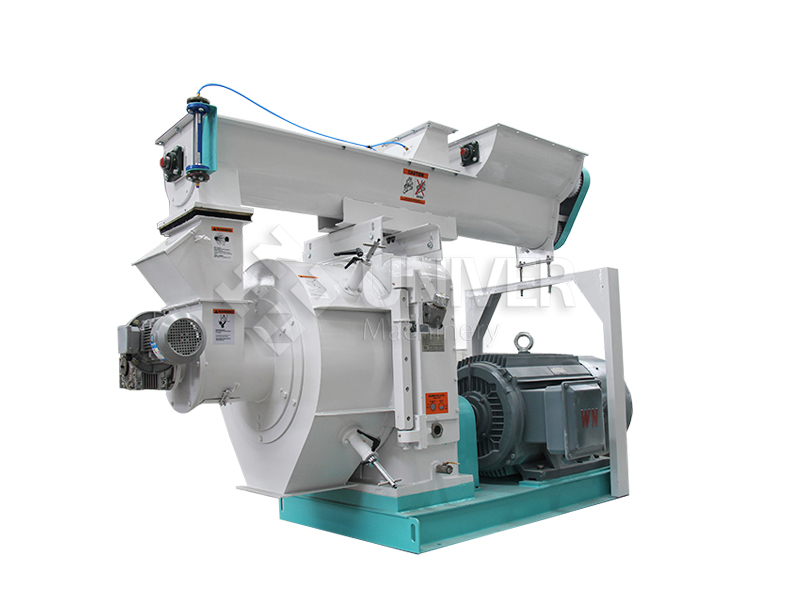

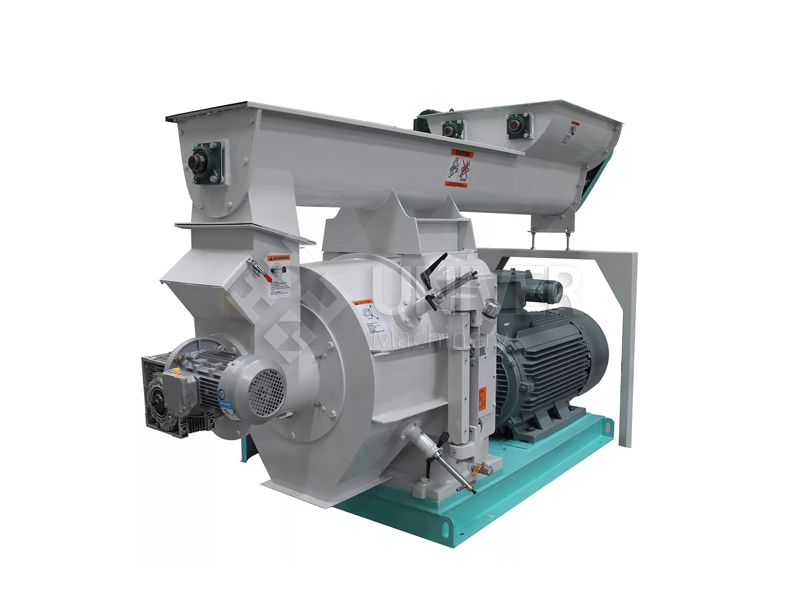

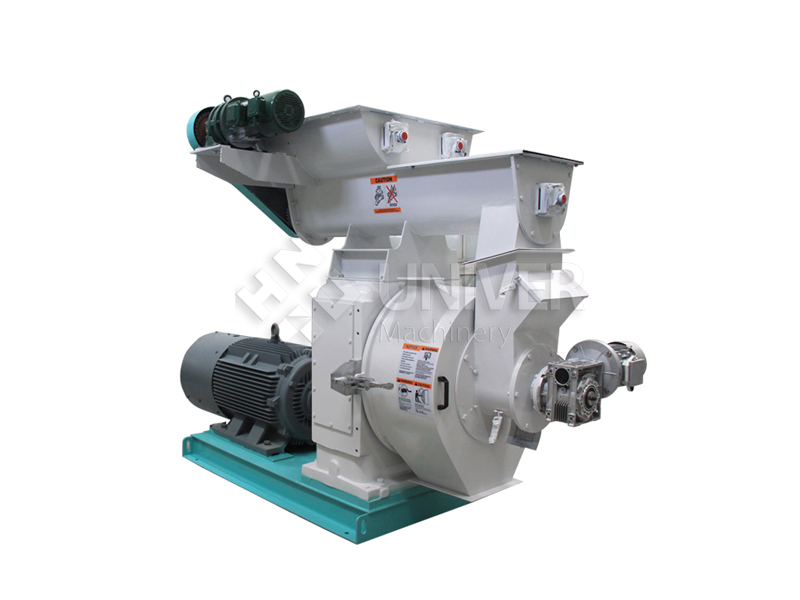

Biomass Pellet Machine

Biomass pellet machine is a high density granulation molding machine which can process all kinds of raw materials such as, wood, chips, branches, rice husk, straw, shell, bamboo, etc. into high density bio-fuel, and the bio fuel is widely used in power plants, fertilizer plants, chemical plants, food plants and other waste scraps.

High quality bearing brand with long service life

The transmission part of the whole machine adopts high-quality imported bearings and oil seals to ensure high transmission efficiency, stability and low noise.

Frequency control screw feeder, ensure the machine capacity

Feeding speed can be adjusted and ensure the feeding speed evenly, forced feeding motor guarantees the feeding capacity.

 Long service life spare parts, save your operating cost

Stainless ring die and press roller set and related spare parts with long service life.

    Brief Introduction

    Biomass pellet machine is a high density granulation molding machine which can process all kinds of raw materials such as, wood, chips, branches, rice husk, straw, shell, bamboo, etc. into high density bio-fuel, and the bio fuel is widely used in power plants, fertilizer plants, chemical plants, food plants and other waste scraps.

    Features

    Gear box driving structure with high efficiency

    The main drive adopts high-precision gear rotation, and the efficiency is about 15% higher than that of the belt drive type, and the transmission efficiency is as high as 98%.

    ---The transmission gear blank is normalized after water forging to improve the hardness of the tooth surface;

    ---The tooth surface is carburized, and the carburized layer reaches 2.4mm to enhance the wear resistance and long service life;

    ---The hard tooth surface is processed by silent fine grinding and edge trimming, and the operation is more stable;

    High quality bearing brand with long service life

    The transmission part of the whole machine adopts high-quality imported bearings and oil seals to ensure high transmission efficiency, stability and low noise.

    Frequency control screw feeder, ensure the machine capacity

    Feeding speed can be adjusted and ensure the feeding speed evenly, forced feeding motor guarantees the feeding capacity.

     Long service life spare parts, save your operating cost

    Stainless ring die and press roller set and related spare parts with long service life.

    Technical parameters

    ModelMain Motor (kw)Feeder Motor (kw)Capacity (tph)
    UNPM-320371.50.2-0.3
    UNPM-35045/551.50.5-0.7
    UNPM-420902.20.8-1.2
    UNPM-48090/1102.21.2-1.5
    UNPM-508132/1605.51.5-2.0
    UNPM-678185/200112.5-3.0

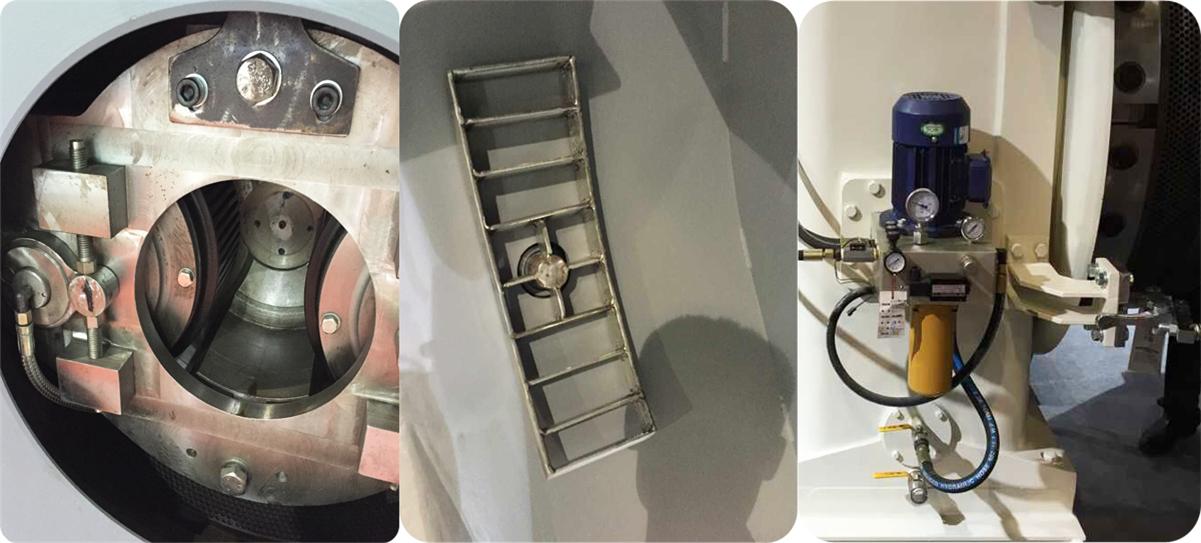

    Details

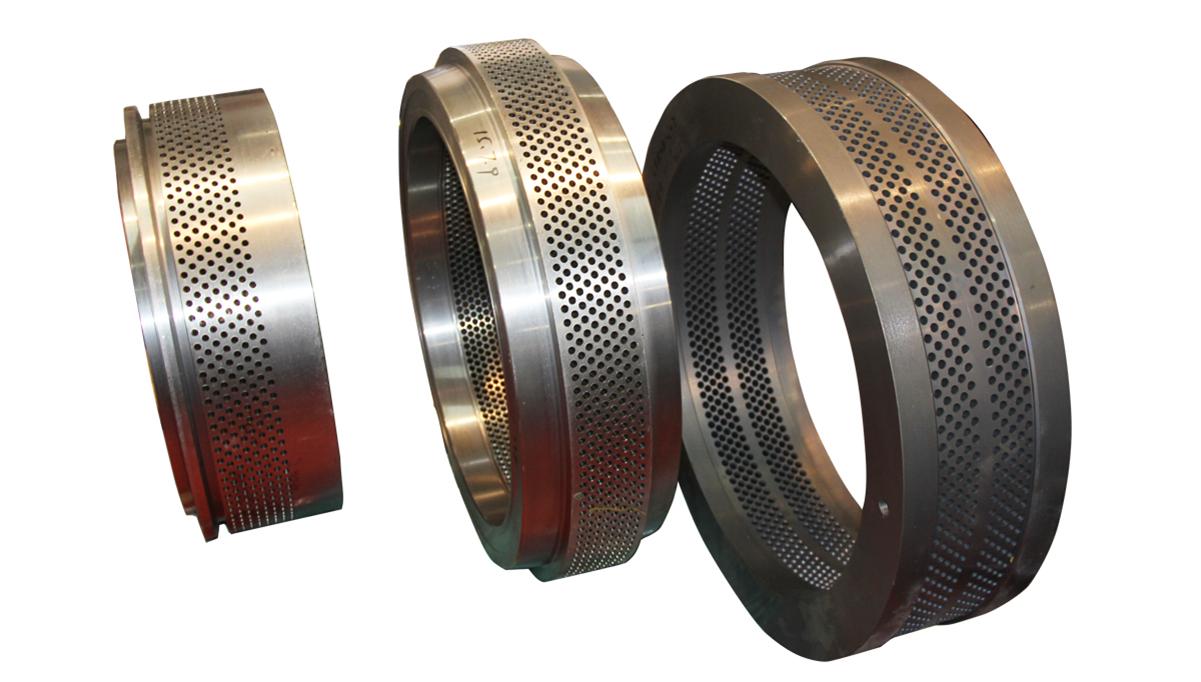

    Spare Part

    Related Case
    We will provide you with a complete solution

    5TPH CATTLE FEED PRODUCTION LINE

    Before building this production line, the customer has a premix production line for commercial. After several times visiting, our technical team surveyed and mapped the site, and designed customized solutions according to the needs of customers. ..
